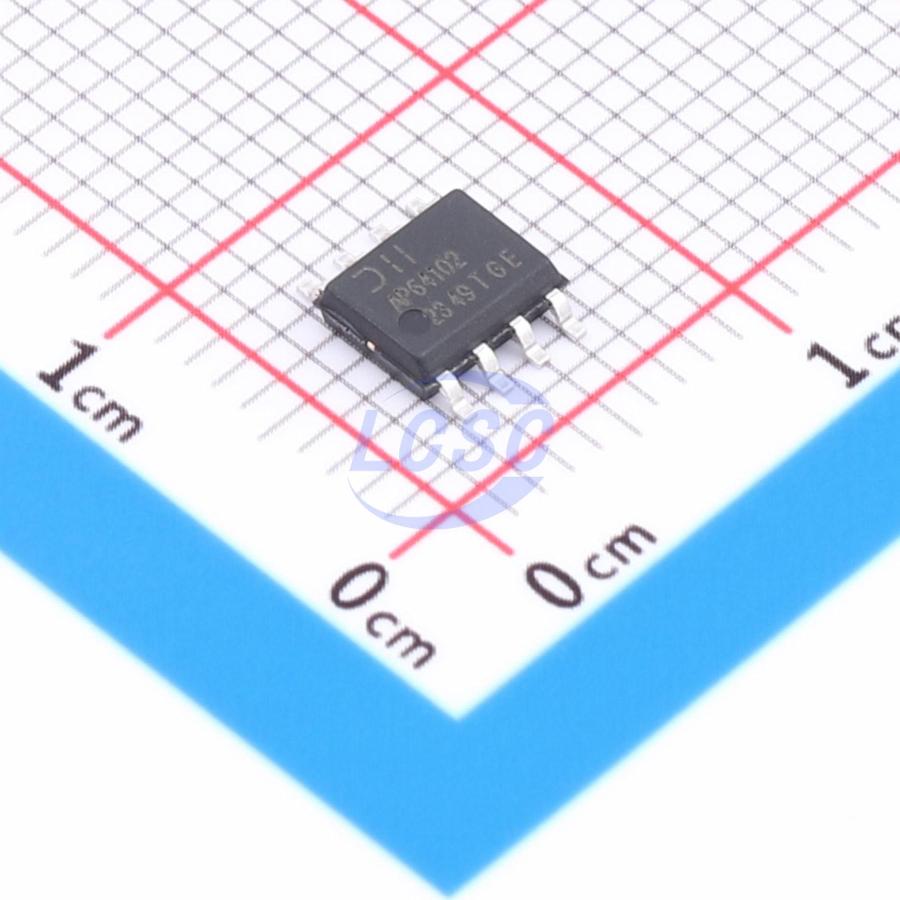

AP64102SP-13

AP64102 is a 1A synchronous buck converter with a wide input voltage range of 3.8V to 40V. The device fully integrates a 150mΩ high-side power MOSFET and an 80mΩ low-side power MOSFET to deliver high-efficiency step-down DC-DC conversion. The device employs peak current mode control with an integrated loop compensation network, simplifying design by reducing the number of external components. The device is optimized for EMI reduction. Its proprietary gate driver scheme suppresses switching node ringing without compromising MOSFET switching times, thereby reducing high-frequency radiated EMI noise caused by MOSFET switching. The AP64102 also features Frequency Spread Spectrum (FSS) with ±6% switching frequency dithering, which reduces EMI by preventing emission energy from dwelling at a single frequency for extended periods. The device is available in an SO-8EP package.

Applications

• Distributed power bus supply
• Power tools and laser printers
• White goods and small home appliances
• Home audio equipment
• Network systems

Key features

• Input voltage range: 3.8V to 40V
• Output voltage range: 0.8V to input voltage
• 1A continuous output current
• 0.8V ± 1% reference voltage
• 25μA low quiescent current (pulse frequency modulation mode)
• Adjustable switching frequency: 100kHz to 2.2MHz
• External clock synchronization: 100kHz to 2.2MHz
• Adjustable soft-start time
• Up to 88% efficiency at 5mA light load
• Proprietary gate driver design for reduced EMI
• Frequency spread spectrum (FSS) for reduced EMI
• Low dropout (LDO) mode
• Precision enable threshold for adjustable UVLO
• UVLO protection
• Output overvoltage protection
• Cycle-by-cycle peak current limiting
• Thermal shutdown protection
