ALLPOWERDatasheet (PDF)

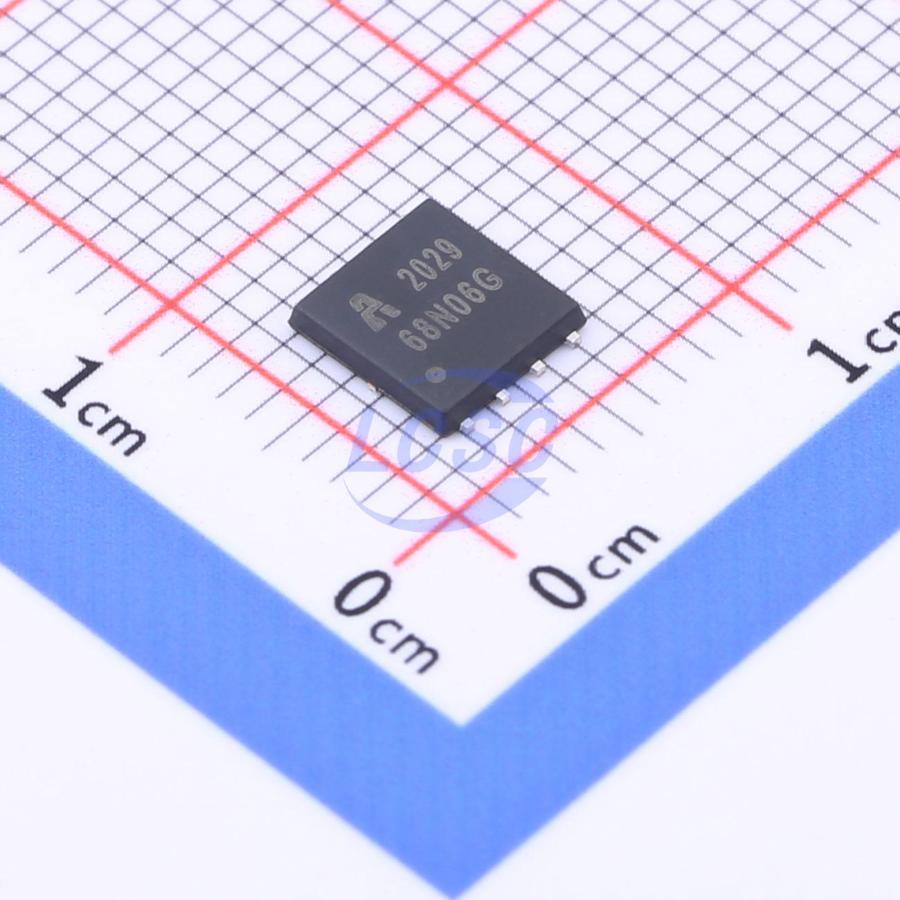

AP68N06G
N-Channel 60V 50A 104W Surface Mount PDFN-8(5x6)
PDFN-8(5x6)ROHS CompliantActive
MOSFET N-CH 60V 50A PDFN-8(5x6)
- Manufacturer
- ALLPOWER
- Manufacturer part #
- AP68N06G
- Store part #
- C2828590
- Package / case
- PDFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,235 in stock
#C2828590
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.53 | ₹187.65 |
| 50+ | ₹33.74 | ₹1,687.00 |
| 150+ | ₹31.84 | ₹4,776.00 |
| 500+ | ₹30.42 | ₹15,210.00 |
| 2,500+ | ₹23.54 | ₹58,850.00 |
| 5,000+ | ₹22.97 | ₹1,14,850.00 |
5 × ₹37.53
₹187.65
excl. GST
₹221.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AP68N06G
₹187.65 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 185pF
- Current - Continuous Drain(Id)
- 50A
- Pd - Power Dissipation
- 104W
- RDS(on)
- 16mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33nC
- Vgs
- ±20V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.129 g
Overview
AP68N06 series are innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power applications. The DFN5*G package is widely preferred for all commercial industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance.
Applications
- PWM applications
- Load switching
- Power management
Key features
- Low Gate Charge
- Simple Drive Requirement
- Surface Mount Package
- RoHS Compliant & Halogen-Free
