DIODES

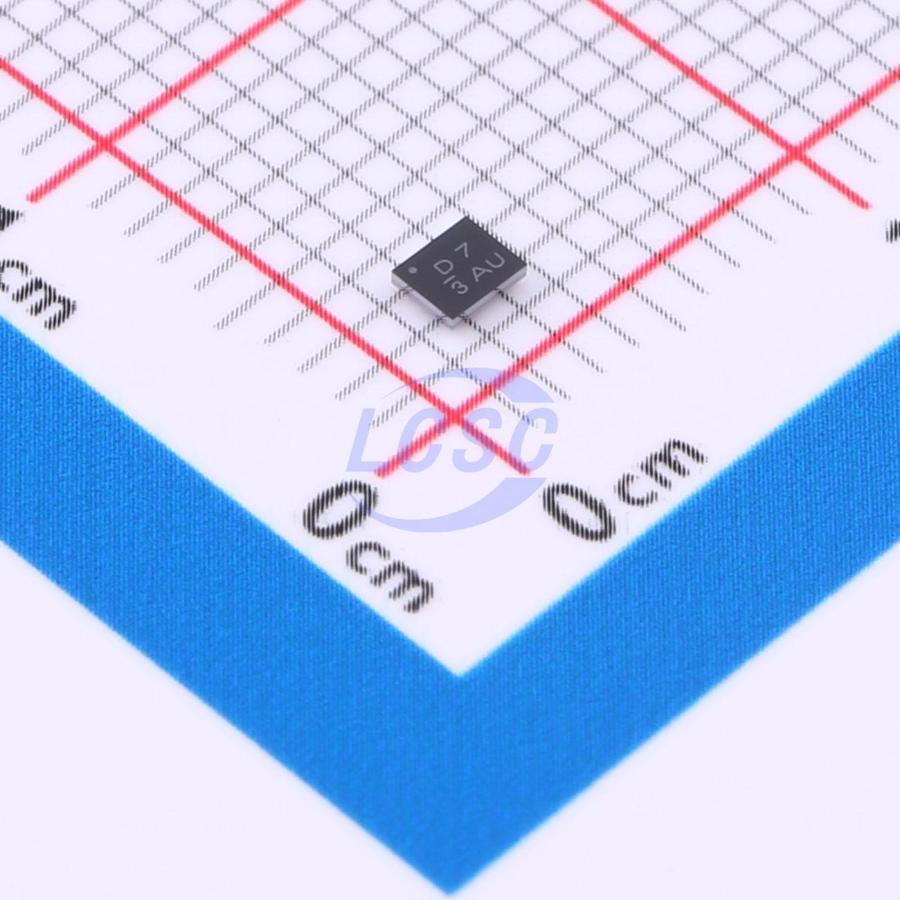

AP72200CT20-7

2.5MHz Buck-Boost Adjustable 2A 2.6V~5.14V WLCSP-20(1.8x2.15) Voltage Regulators - DC DC Switching Regulators RoHS

WLCSP-20(1.8x2.15)ROHS3 CompliantActive

High-Efficiency Synchronous Buck-Boost Converter

Manufacturer: DIODES
Manufacturer part #: AP72200CT20-7
Store part #: C2071010
Package / case: WLCSP-20(1.8x2.15)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C2071010

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹121.89	₹121.89
10+	₹119.22	₹1,192.20
30+	₹117.58	₹3,527.40
100+	₹115.93	₹11,593.00

Quantity (min 1)

1 × ₹121.89

₹121.89

excl. GST

₹143.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AP72200CT20-7

₹121.89 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -30℃~+85℃
Frequency - Switching: 2.5MHz
Function: Buck-Boost
Number of Outputs: 1
Features: Adjustable current limiting;Overcurrent Protection;Hiccup current limiting;Light load efficient mode;Operating status indication;Output discharge
Output Type: Adjustable
Topology: Buck-Boost
Operating Voltage: 2.3V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 2A
Output Voltage: 2.6V~5.14V
Quiescent Current: 29uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.096 g

Overview

The AP72200 is a high-current synchronous buck-boost converter providing high efficiency, excellent transient response, and high DC output accuracy. The targeted applications are smartphones, tablets, and other handheld devices. The AP72200 utilizes a four-switch Hbridge configuration to support buck and boost operation. The buckboost provides at least 2A output current. The current control scheme handles wide input/output voltage ratios and provides low external component count with outstanding performance in line/load transient response and seamless transition between buck and boost modes. The AP72200 features I²C compatible, two-wire serial interface consisting of a bidirectional serial-data line, SDA, and a serial-clock line, SCL. It supports SCL clock rates up to 3.4MHz. The AP72200 also features UVLO, OTP, and OCP to protect the circuit. This IC is available in a small 2.125mm×1.750mm, 20 balls WLCSP package.

Applications

Smartphones
Tablets
Portable Consumer Devices

Key features

VIN 2.3V to 5.5V Output Voltage Range: 2.6V to 5.14V
2A Continuous Output Current for VOUT = 3.4V and VIN>2.9V
Efficiency Up to 97%
2.5MHz Switching Frequency
I²C Interface
Selectable MODE PFM/PWM
Ultrasonic Operation Programmable through IC
Power Good Indicator with 5MΩ Internal Pull-Up
Adjustable Overcurrent Limit
Fully Protected for Overcurrent, Short Circuit, Reverse Current Protection, Overtemperature, and UVLO
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
