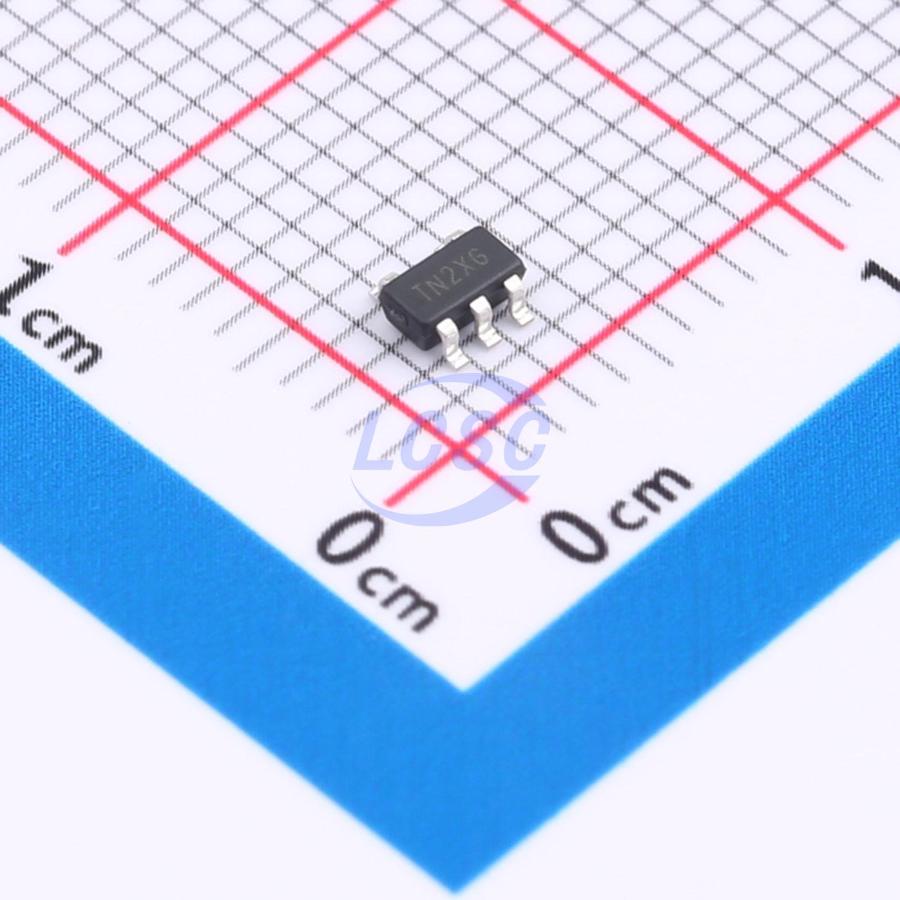

AP7335A-33W5-7
3.3V Positive Fixed SOT-25 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-25ROHS3 CompliantDiscontinued
300mA Low Quiescent Current Fast Transient Low Dropout (LDO) Linear Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AP7335A-33W5-7
- Store part #
- C7076875
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C7076875
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.72 | ₹58.60 |
| 50+ | ₹11.47 | ₹573.50 |
| 150+ | ₹11.30 | ₹1,695.00 |
| 500+ | ₹11.13 | ₹5,565.00 |
5 × ₹11.72
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AP7335A-33W5-7
₹58.60 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 9V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The AP7335A is a 300mA, fixed output voltage, low-dropout linear regulator with ±1% output voltage accuracy. The device includes pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. The characteristics of low-dropout voltage and low-quiescent current make it suitable for low-power applications, for example, battery powered devices. The typical quiescent current is 35μA. Built-in, current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. This device is only available as a 3.3V fixed version now. The AP7335A is packaged in SOT25 and U-DFN2020-6.
Applications
- Smart Phones
- MP3/MP4s
- Battery-Powered Devices
- Bluetooth Headsets
- Battery Chargers
- LCD TVs Multifunction Monitors
Key features
- Smart Phones
- MP3/MP4s
- Battery-Powered Devices
- Bluetooth Headsets
- Battery Chargers
- LCD TVs Multifunction Monitors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD53R33#C111685Mingda Microelectronics · SOT-23-5 | Mingda Microelectronics | SOT-23-5 | 895 | ₹18.23 · 895 in stock | View |
 | AP7335A-50W-7#C151013DIODES · SOT-25 | DIODES | SOT-25 | 3 | ₹44.10 · 3 in stock | View |
 | AP7335-33WG-7#C460381DIODES · SOT-25 | DIODES | SOT-25 | 305 | ₹39.45 · 305 in stock | View |
 | AP7335-30WG-7#C6500886DIODES · SOT-25 | DIODES | SOT-25 | 2,645 | ₹18.56 · 2,645 in stock | View |
 | AP7335-12WG-7#C6861189DIODES · SOT-25 | DIODES | SOT-25 | 80 | ₹11.09 · 80 in stock | View |
