DIODESDatasheet (PDF)

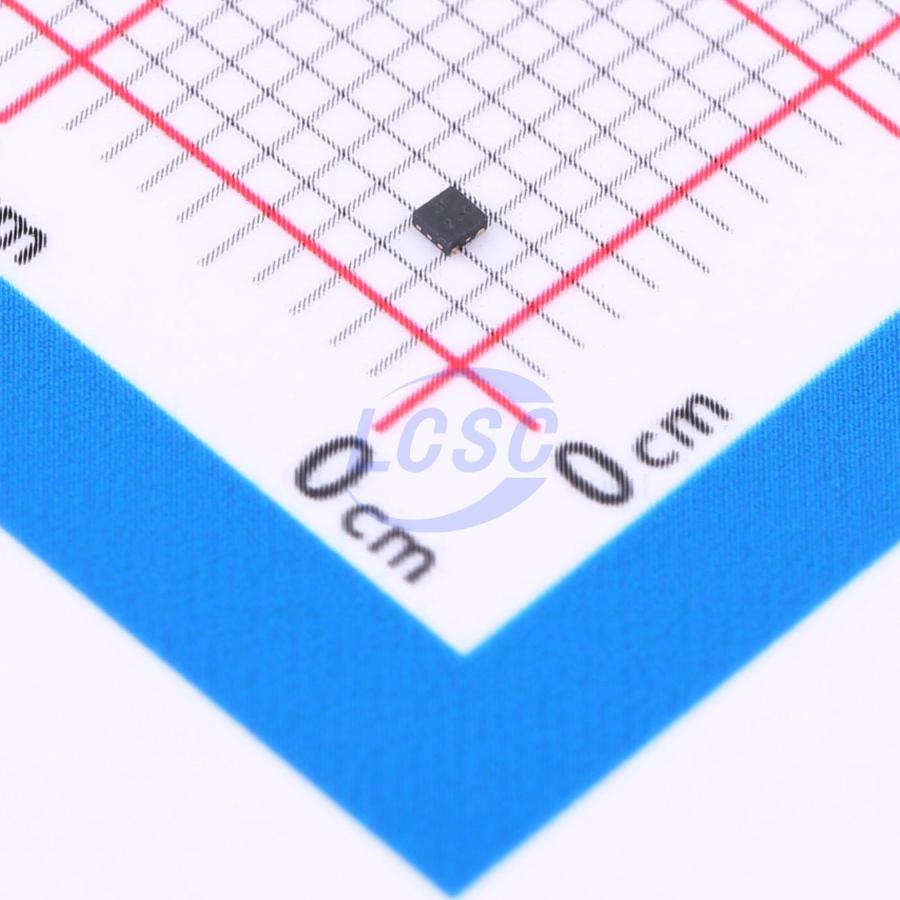

AP7341D-11FS4-7
1.1V Positive Fixed X2-DFN1010-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
X2-DFN1010-4ROHS3 CompliantActive
300mA HIGH PSRR LOW NOISE LDO WITH ENABLE
- Manufacturer
- DIODES
- Manufacturer part #
- AP7341D-11FS4-7
- Store part #
- C5244430
- Package / case
- X2-DFN1010-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C5244430
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.22 | ₹91.10 |
| 50+ | ₹17.82 | ₹891.00 |
| 150+ | ₹17.56 | ₹2,634.00 |
| 500+ | ₹17.30 | ₹8,650.00 |
5 × ₹18.22
₹91.10
excl. GST
₹107.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AP7341D-11FS4-7
₹91.10 for 5 + GST
Specifications
- Output Voltage
- 1.1V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 5.25V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The AP7341 is a low dropout regulator with high output voltage accuracy, low RDSON, high PSRR, low output noise and low quiescent current. This regulator is based on a CMOS process. The AP7341 consists of a voltage reference, error amplifier, current limit circuit and an enable input to turn it on and off. With the integrated resistor network fixed output voltage versions can be delivered. With its low power consumption and line and load transient response, the AP7341 is well suited for low power handheld communication equipment. The AP7341 is packaged in an X2-DFN1010-4 package and allows for smallest footprint and dense PCB layout.
Applications
- Smart Phone/Pad
- RF Supply
- Cameras
- Portable Video
- Portable Media Player
- Wireless Adapter
- Wireless Communication
Key features
- Low VIN and Wide VIN Range: 1.7V to 5.25V
- Guarantee Output Current: 300mA
- VOUT Accuracy ±1% Ripple Rejection 75dB at 1kHz
- Low Output Noise, 60μVrms from 10Hz to 100kHz
- Quiescent Current as Low as 35μA
- VOUT Fixed 1.1V to 3.3V
- Totally Lead-Free & Fully RoHS Compliant, Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP7343D-11FS4-7B#C5564201DIODES · X2-DFN1010-4 | DIODES | X2-DFN1010-4 | 15 | ₹31.22 · 15 in stock | View |
 | TLV73311PDQNR#C2863780TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 150 | ₹18.81 · 150 in stock | View |
 | TLV74311PDQNR#C485148TI · X2SON-4-EP(1x1) | TI | X2SON-4-EP(1x1) | 20 | ₹17.21 · 20 in stock | View |
| TLV75511PDQNR#C2873109TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 330 | ₹24.42 · 330 in stock | View | |
| TCR3DM11,LF(SE#C6331457TOSHIBA · DFN-4(1x1) | TOSHIBA | DFN-4(1x1) | 300 | ₹25.07 · 300 in stock | View | |
