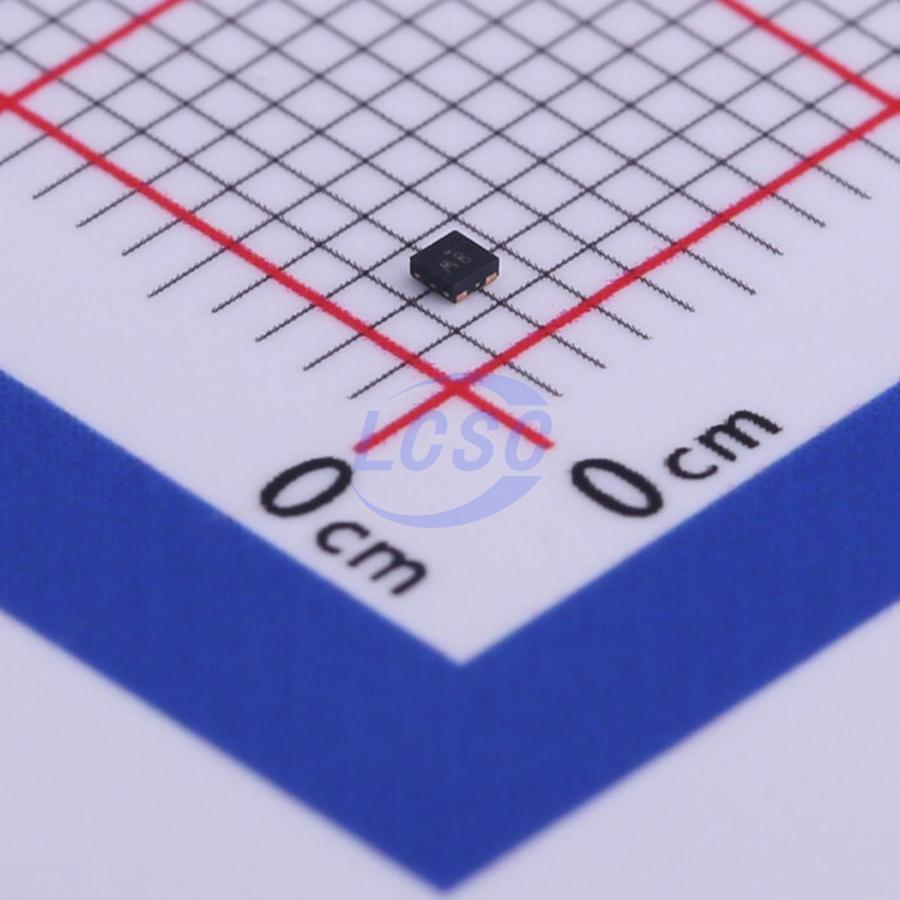

TLV74311PDQNR

1.1V Positive Fixed X2SON-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

X2SON-4-EP(1x1)ROHS3 CompliantActive

300mA, low IQ, low dropout regulator with enable function

Manufacturer: TI
Manufacturer part #: TLV74311PDQNR
Store part #: C485148
Package / case: X2SON-4-EP(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20 in stock

#C485148

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹17.21	₹86.05
50+	₹13.77	₹688.50
150+	₹12.05	₹1,807.50
500+	₹10.77	₹5,385.00
3,000+	₹9.71	₹29,130.00
6,000+	₹9.19	₹55,140.00

Quantity (min 5, multiples of 5)

5 × ₹17.21

₹86.05

excl. GST

₹101.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV74311PDQNR

₹86.05 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.1V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 34uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.005 g

Overview

The TLV743P low-dropout linear regulator (LDO) is an ultra-small, low quiescent current LDO that sources 300 mA with good line and load transient performance. The device provides a typical accuracy of 1%. The TLV743P is designed to be stable with a small output capacitor with a value of 1 μF. The TLV743P device provides foldback current control during device power up and enabling. This functionality is especially important in battery-operated devices. The TLV743P provides an active pulldown circuit to quickly discharge output loads when the device is disabled. The TLV743P is available in standard DBV (SOT-23) and DQN (X2SON) packages.

Applications

Tablets
Smartphones
Notebook and Desktop Computers
Portable Industrial and Consumer Products
WLAN and Other PC Add-On Cards
Camera Modules

Key features

Input Voltage Range: 1.4 V to 5.5 V
Stable Operation With 1-μF Ceramic Output Capacitor
Foldback Overcurrent Protection
Packages: SOT-23 (5), X2SON (4)
Very Low Dropout: 125 mV at 300 mA (3.3 VOUT)
Accuracy: 1% (Typical), 1.4% (Maximum)
Low IQ: 34 μA
Available in Fixed-Output Voltages: 1 V to 3.3 V
High PSRR: 50 dB at 1 kHz
Active Output Discharge

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TLV73311PDQNR#C2863780TI · X2-SON-4-EP(1x1)	TI	X2-SON-4-EP(1x1)	150	₹18.81 · 150 in stock	View
TLV75511PDQNR#C2873109TI · X2-SON-4-EP(1x1)	TI	X2-SON-4-EP(1x1)	330	₹24.42 · 330 in stock	View
AP7341D-11FS4-7#C5244430DIODES · X2-DFN1010-4	DIODES	X2-DFN1010-4	5	₹18.22 · 5 in stock	View
AP7343D-11FS4-7B#C5564201DIODES · X2-DFN1010-4	DIODES	X2-DFN1010-4	15	₹31.22 · 15 in stock	View
TCR3DM11,LF(SE#C6331457TOSHIBA · DFN-4(1x1)	TOSHIBA	DFN-4(1x1)	300	₹25.07 · 300 in stock	View
