VBsemi ElecDatasheet (PDF)

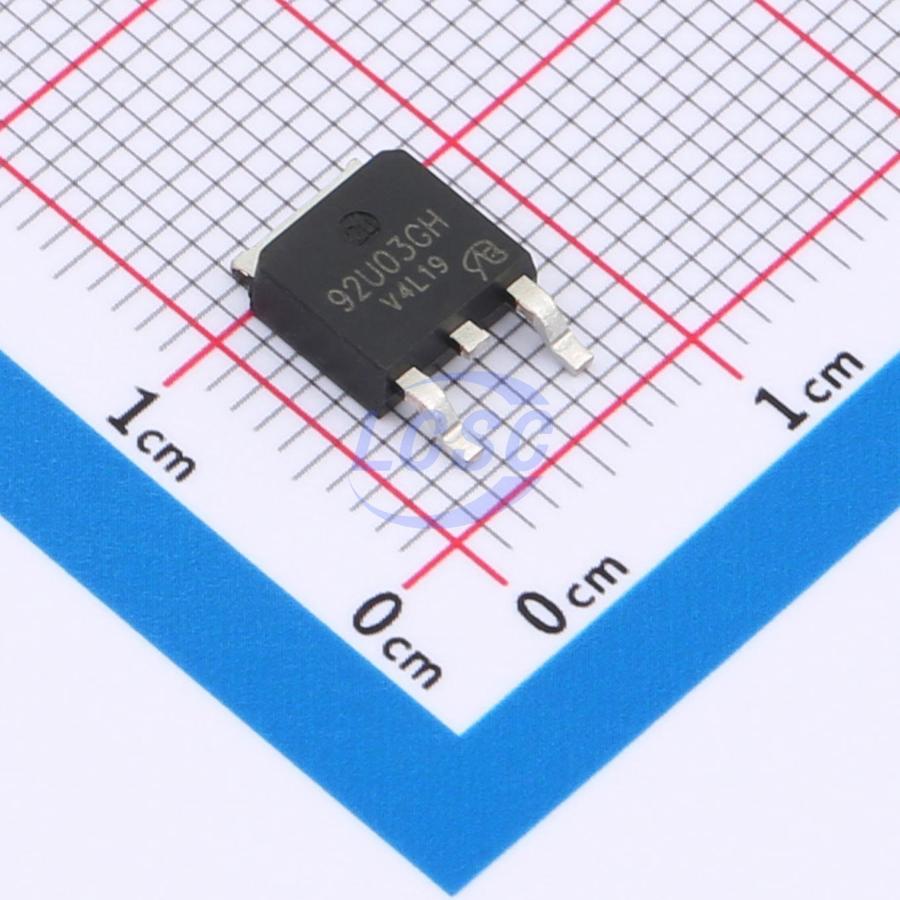

AP92U03GH-HF-VB
N-Channel 30V 100A 235W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 100A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP92U03GH-HF-VB
- Store part #
- C41370044
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C41370044
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.03 | ₹106.03 |
| 10+ | ₹90.78 | ₹907.80 |
| 30+ | ₹83.39 | ₹2,501.70 |
| 100+ | ₹75.77 | ₹7,577.00 |
| 500+ | ₹46.60 | ₹23,300.00 |
| 1,000+ | ₹44.20 | ₹44,200.00 |
1 × ₹106.03
₹106.03
excl. GST
₹125.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AP92U03GH-HF-VB
₹106.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.525nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 5.201nF
- Pd - Power Dissipation
- 235W
- Reverse Transfer Capacitance (Crss)
- 227pF
- RDS(on)
- 3mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 103nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.62 g
Overview
Applications
- OR-ing
- Server DC/DC
Key features
- Trench Power MOS FET
- 100 % Rg and UIS Tested
- Compliant to RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOD528-VB#C19188197VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹79.49 · 50 in stock | View |
 | QM3006D-VB#C19188230VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 13 | ₹62.59 · 13 in stock | View |
 | 2SK4213-E1-AY-VB#C19626709VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 36 | ₹75.62 · 36 in stock | View |
 | 95N03-VB#C19626793VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 49 | ₹78.56 · 49 in stock | View |
 | CEU3060-VB#C19632101VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹90.35 · 10 in stock | View |
