VBsemi ElecDatasheet (PDF)

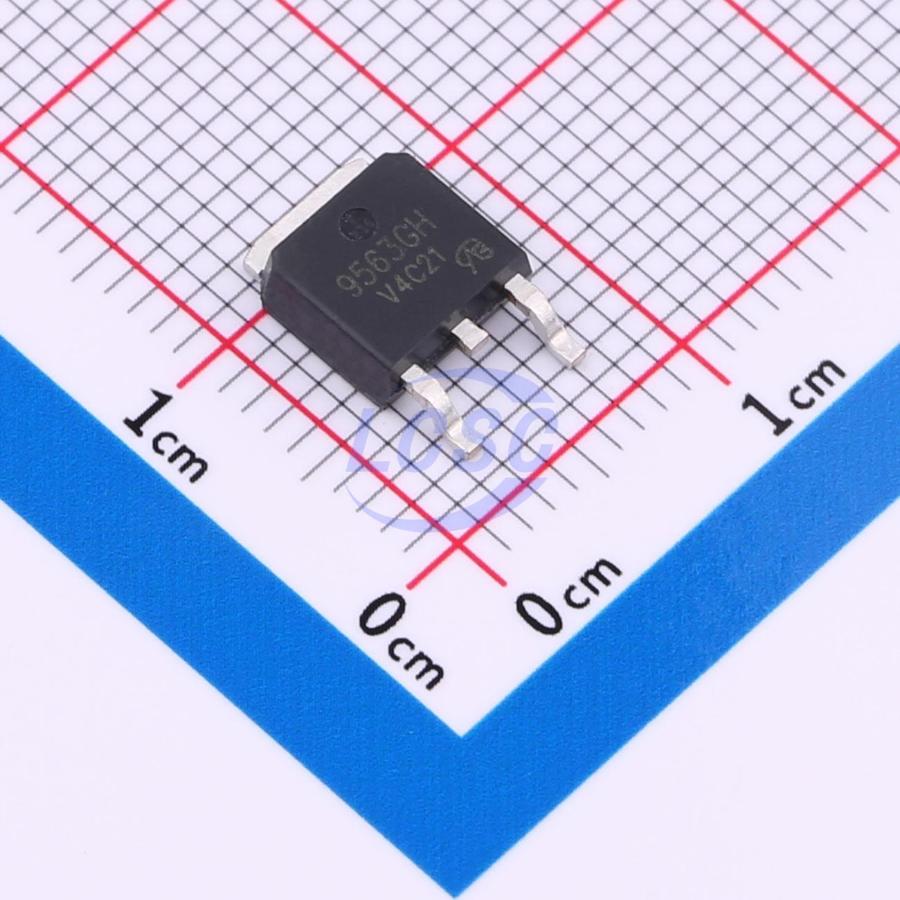

AP9563GH-VB
P-Channel 40V 50A 136W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 40V 50A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AP9563GH-VB
- Store part #
- C22389230
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22389230
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.04 | ₹89.04 |
| 10+ | ₹72.28 | ₹722.80 |
| 30+ | ₹64.01 | ₹1,920.30 |
| 100+ | ₹55.74 | ₹5,574.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹89.04
₹89.04
excl. GST
₹105.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AP9563GH-VB
₹89.04 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 50A
- Output Capacitance(Coss)
- 508pF
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 352pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 60nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Applications
- Notebook system power supply
- Low-current DC/DC converter
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
