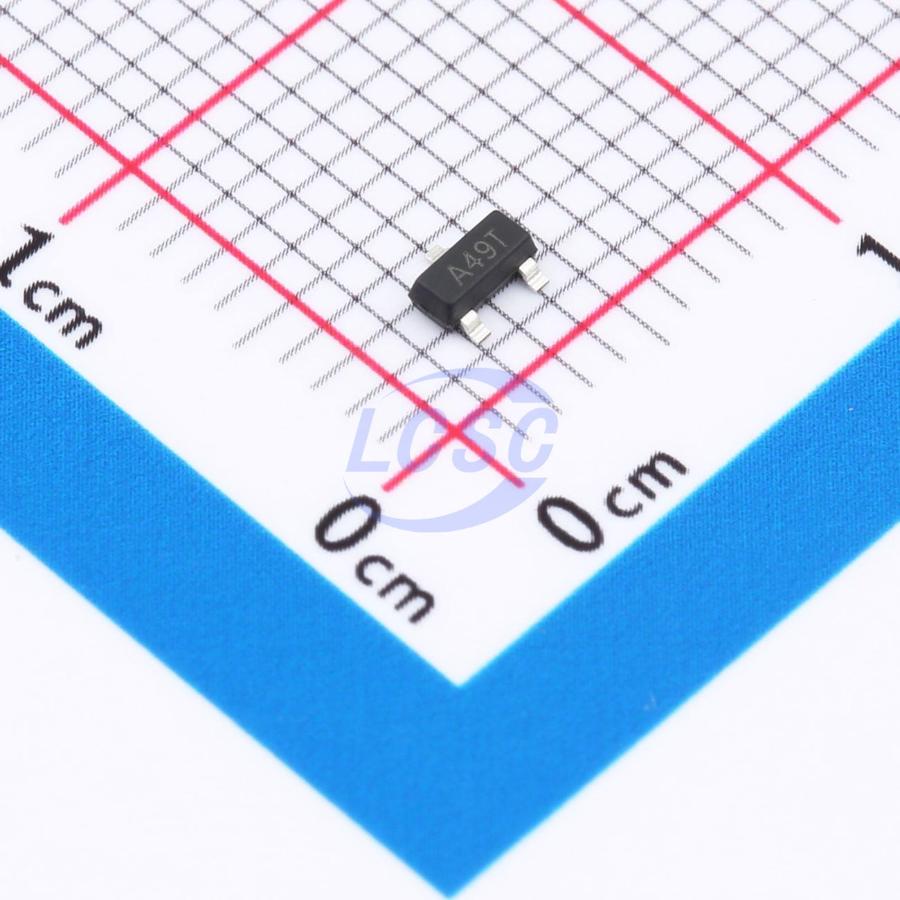

APM2306AC-TP
N-Channel 30V 5A 1.4W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET N-CH 30V 5A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- APM2306AC-TP
- Store part #
- C47117516
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C47117516
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.89 | ₹68.90 |
| 100+ | ₹5.52 | ₹552.00 |
| 300+ | ₹4.83 | ₹1,449.00 |
| 3,000+ | ₹4.31 | ₹12,930.00 |
| 6,000+ | ₹3.90 | ₹23,400.00 |
| 9,000+ | ₹3.69 | ₹33,210.00 |
10 × ₹6.89
₹68.90
excl. GST
₹81.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APM2306AC-TP
₹68.90 for 10 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 5A
- Output Capacitance(Coss)
- 45pF
- Ciss-Input Capacitance
- 255pF
- Pd - Power Dissipation
- 1.4W
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 50mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The WSF38N06 is a high-performance trench N-channel MOSFET with ultra-high cell density, delivering excellent on-resistance (R<sub>DS(ON)</sub>) and gate charge for most synchronous buck converter applications. The WSF38N06 is RoHS compliant and meets green product requirements, 100% EAS (Energy Avalanche Susceptibility) tested, and fully qualified through reliability certification.
Applications
- Load Switch
- PWM Applications
Key features
- VDS = 30V, ID = 5A
- RDS(ON) < 40mΩ at VGS = 10V
- RDS(ON) < 50mΩ at VGS = 4.5V
- High power and current handling capability
- Lead-free products available
- Surface mount package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDN359BN#C19268139TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 660 | ₹6.24 · 660 in stock | View |
 | AO3404A#C7603369TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 6,270 | ₹6.42 · 6,270 in stock | View |
 | AO3404#C7603370TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 11,230 | ₹6.73 · 11,230 in stock | View |
 | AO3400#C2890121TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 2,030 | ₹7.46 · 2,030 in stock | View |
 | AO3400A#C5122000TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 5,860 | ₹5.64 · 5,860 in stock | View |
