MICROCHIPDatasheet (PDF)

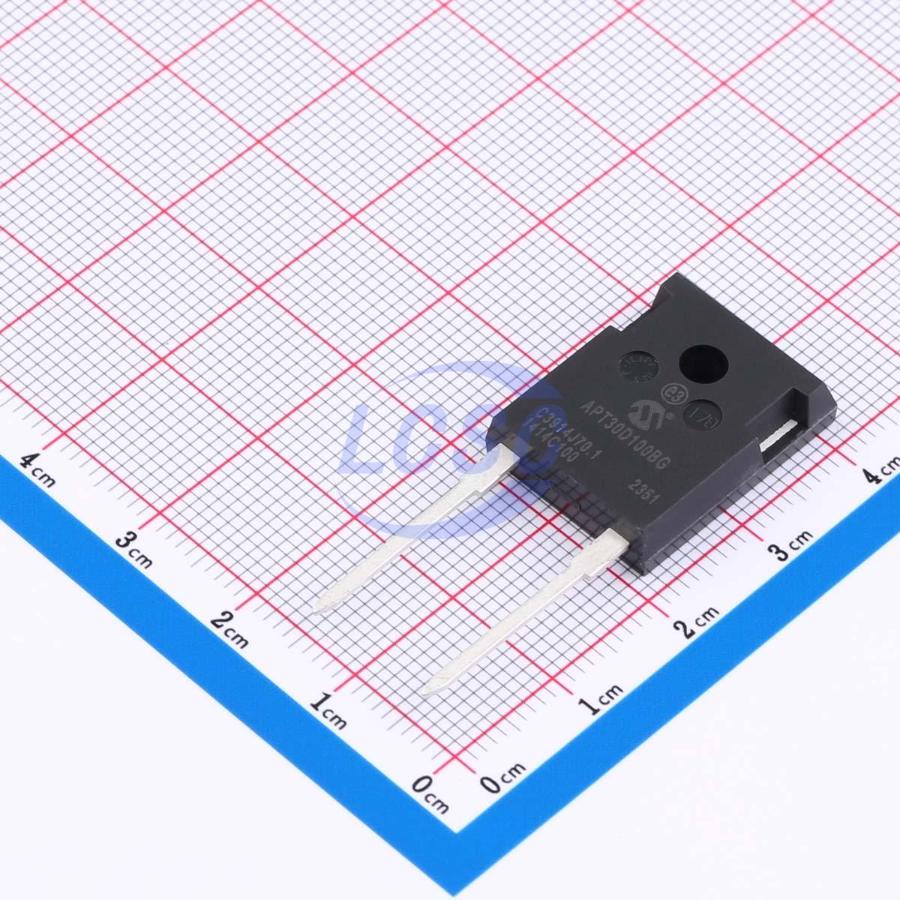

APT30D100BG
Diode 1000V 30A Through Hole TO-247
TO-247ROHS3 CompliantActive
DIODE GP 1kV 30A TO-247
- Manufacturer
- MICROCHIP
- Manufacturer part #
- APT30D100BG
- Store part #
- C17293915
- Package / case
- TO-247
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54 in stock
#C17293915
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹979.36 | ₹979.36 |
| 10+ | ₹849.78 | ₹8,497.80 |
| 30+ | ₹770.62 | ₹23,118.60 |
| 90+ | ₹704.52 | ₹63,406.80 |
1 × ₹979.36
₹979.36
excl. GST
₹1,155.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
APT30D100BG
₹979.36 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 290ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - Forward(Vf@If)
- 2.3V@30A
- Reverse Leakage Current (Ir)
- 250uA@1000V
- Non-Repetitive Peak Forward Surge Current
- 210A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.96 g
Overview
Applications
- Anti-parallel diode, switching power supply, inverter, freewheeling diode, motor controller
Key features
- Ultra-fast recovery time
- Soft recovery characteristics
- Available in standard TO-247 or surface-mount D³PAK package
- Low forward voltage
- Low leakage current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | APT30DQ100BG#C17351670MICROCHIP · TO-247 | MICROCHIP | TO-247 | 10 | ₹315.96 · 10 in stock | View |
 | DH60-16A#C17536810Littelfuse/IXYS · TO-247AD | Littelfuse/IXYS | TO-247AD | 2 | ₹2,884.39 · 2 in stock | View |
 | VS-E5PH7512L-N3#C17610927VISHAY · TO-247AD | VISHAY | TO-247AD | 10 | ₹1,723.80 · 10 in stock | View |
| DSEP60-12B#C17455548Littelfuse/IXYS · TO-247 | Littelfuse/IXYS | TO-247 | 3 | ₹2,453.28 · 3 in stock | View | |
| APT75DQ120BG#C17554511MICROCHIP · TO-247 | MICROCHIP | TO-247 | 76 | ₹933.03 · 76 in stock | View | |
