MICROCHIPDatasheet (PDF)

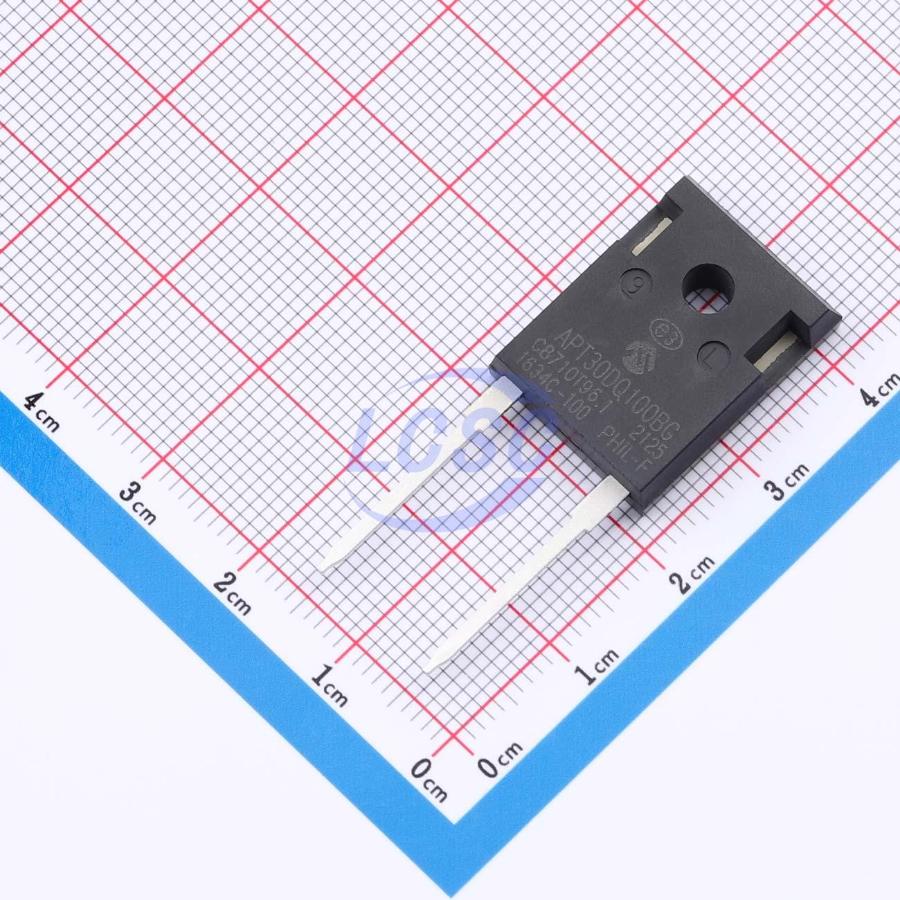

APT30DQ100BG
295ns 1 Independent 1kV 3V@30A 30A TO-247 Single Diodes RoHS
TO-247ROHS3 CompliantActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- APT30DQ100BG
- Store part #
- C17351670
- Package / case
- TO-247
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C17351670
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹315.96 | ₹315.96 |
| 10+ | ₹311.24 | ₹3,112.40 |
| 30+ | ₹308.01 | ₹9,240.30 |
| 90+ | ₹304.57 | ₹27,411.30 |
1 × ₹315.96
₹315.96
excl. GST
₹372.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
APT30DQ100BG
₹315.96 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 295ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - Forward(Vf@If)
- 3V@30A
- Reverse Leakage Current (Ir)
- 100uA@1000V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.465 g
Overview
Applications
- Power Factor Correction (PFC), freewheeling diode, switch-mode power supply, inverter/converter, motor controller
Key features
- Ultra-fast recovery time
- Soft recovery characteristics
- Low forward voltage
- Low leakage current
- Avalanche energy rated
- RoHS compliant
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | APT30D100BG#C17293915MICROCHIP · TO-247 | MICROCHIP | TO-247 | 54 | ₹979.36 · 54 in stock | View |
| APT75DQ120BG#C17554511MICROCHIP · TO-247 | MICROCHIP | TO-247 | 76 | ₹933.03 · 76 in stock | View | |
| VS-65EPF12L-M3#C17427821VISHAY · TO-247AD | VISHAY | TO-247AD | 1 | ₹526.77 · 1 in stock | View | |
| VS-80APF10-M3#C17290590VISHAY · TO-247AC | VISHAY | TO-247AC | 10 | ₹1,438.66 · 10 in stock | View | |
 | VS-65EPS16L-M3#C468123VISHAY · TO-247AD | VISHAY | TO-247AD | 10 | ₹626.26 · 10 in stock | View |
