ANPECDatasheet (PDF)

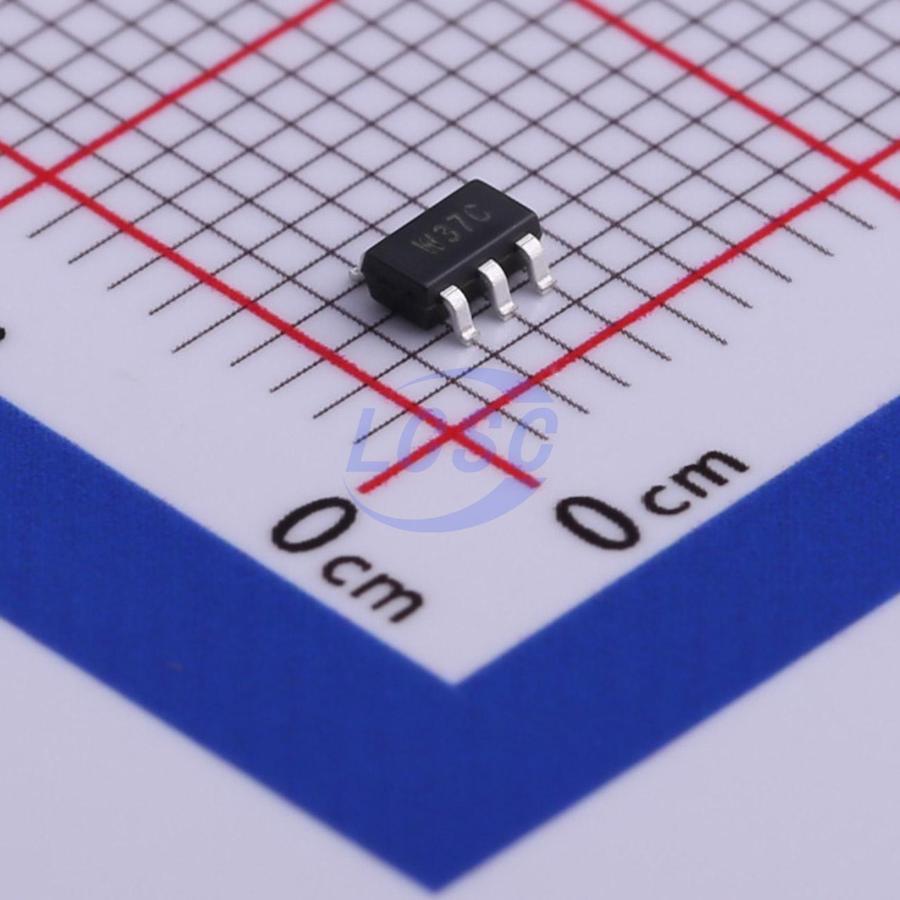

APW7137BI-TRG
1MHz Boost Adjustable 2.5V~35V SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
1 MHz, High Efficiency, Step-Up Converter
- Manufacturer
- ANPEC
- Manufacturer part #
- APW7137BI-TRG
- Store part #
- C126188
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,050 in stock
#C126188
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.45 | ₹217.25 |
| 50+ | ₹34.69 | ₹1,734.50 |
| 150+ | ₹30.94 | ₹4,641.00 |
| 500+ | ₹26.26 | ₹13,130.00 |
| 3,000+ | ₹22.44 | ₹67,320.00 |
| 6,000+ | ₹21.19 | ₹1,27,140.00 |
5 × ₹43.45
₹217.25
excl. GST
₹256.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APW7137BI-TRG
₹217.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~35V
- Quiescent Current
- 1mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
The APW7137 is a fixed switching frequency (1MHz typical), current-mode, step-up regulator with an integrated N-channel MOSFET. The device allows the usage of small inductors and output capacitors for portable devices. The current-mode control scheme provides fast transient response and good output voltage accuracy. The APW7137 includes under-voltage lockout, current-limit, and over-temperature shutdown preventing damage in the event of an output overload.
Applications
- Cell Phone and Smart Phone
- PDA, PMP, MP3
- Digital Camera
- Boost Regulators
Key features
- Wide 2.5V to 6V Input Voltage Range
- Built-in 0.6Ω N-Channel MOSFET
- Built-in Soft-Start
- High Efficiency up to 90%
- <1μA Quiescent Current During Shutdown
- Current-Mode Operation
- Stable with Ceramic Output Capacitors
- Fast Transient Response
- Current-Limit Protection
- Over-Temperature Protection with Hysteresis
- Available in a Tiny 5-Pin SOT-23 and TSOT-23 Packages
- Lead Free and Green Devices Available (RoHS Compliant)
