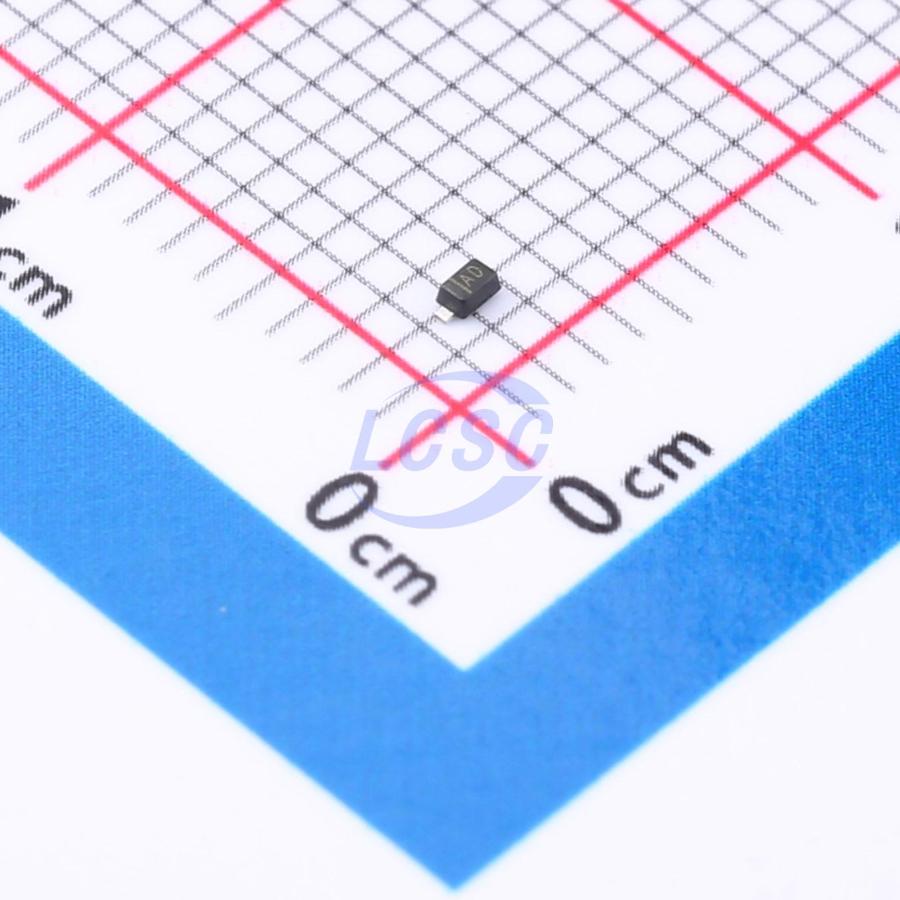

AQ1003-01LTG
14VC Clamp 7A@8/20us Ipp TVS DIODE SOD-523
TVS DIODE 5VWM 14VC SOD-523
- Manufacturer
- Littelfuse
- Manufacturer part #
- AQ1003-01LTG
- Store part #
- C3702224
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
590 in stock
#C3702224
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.34 | ₹121.70 |
| 50+ | ₹19.33 | ₹966.50 |
| 150+ | ₹17.17 | ₹2,575.50 |
| 500+ | ₹14.50 | ₹7,250.00 |
| 2,500+ | ₹13.30 | ₹33,250.00 |
| 5,000+ | ₹12.58 | ₹62,900.00 |
5 × ₹24.34
₹121.70
excl. GST
₹143.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AQ1003-01LTG
₹121.70 for 5 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -40℃~+150℃
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Voltage - Breakdown
- 6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This discrete TVS diode is fabricated using proprietary silicon avalanche technology to protect electronic device I/O pins from destructive ESD. These robust TVS diodes can withstand repetitive ±30kV contact or air ESD discharge events without performance degradation. This exceeds the ESD contact and air discharge test requirements of IEC 61000-4-2. In addition, this TVS diode can withstand 8/20 surge current events per IEC 61000-4-5 Edition 2 up to 7A while still providing low voltage clamping levels.
Applications
- Mobile phones
- Smartphones
- Personal Digital Assistants (PDAs)
- Portable navigation devices
- Digital cameras
Key features
- ESD per IEC 61000-4-2, ±30kV contact discharge, ±30kV air discharge
- EFT per IEC 61000-4-4, 40A (5/50ns)
- Lightning surge, 7A (8/20μs per IEC 61000-4-5 Edition 2)
- Maximum leakage current 100nA at 5V
- PPAP capable
- AEC-Q101 qualified
- Moisture Sensitivity Level (MSL-1)
- Halogen-free, lead-free, RoHS compliant
- ESD per ISO 10605, 330pF, 330Ω, ±25kV contact discharge, ±30kV air discharge
