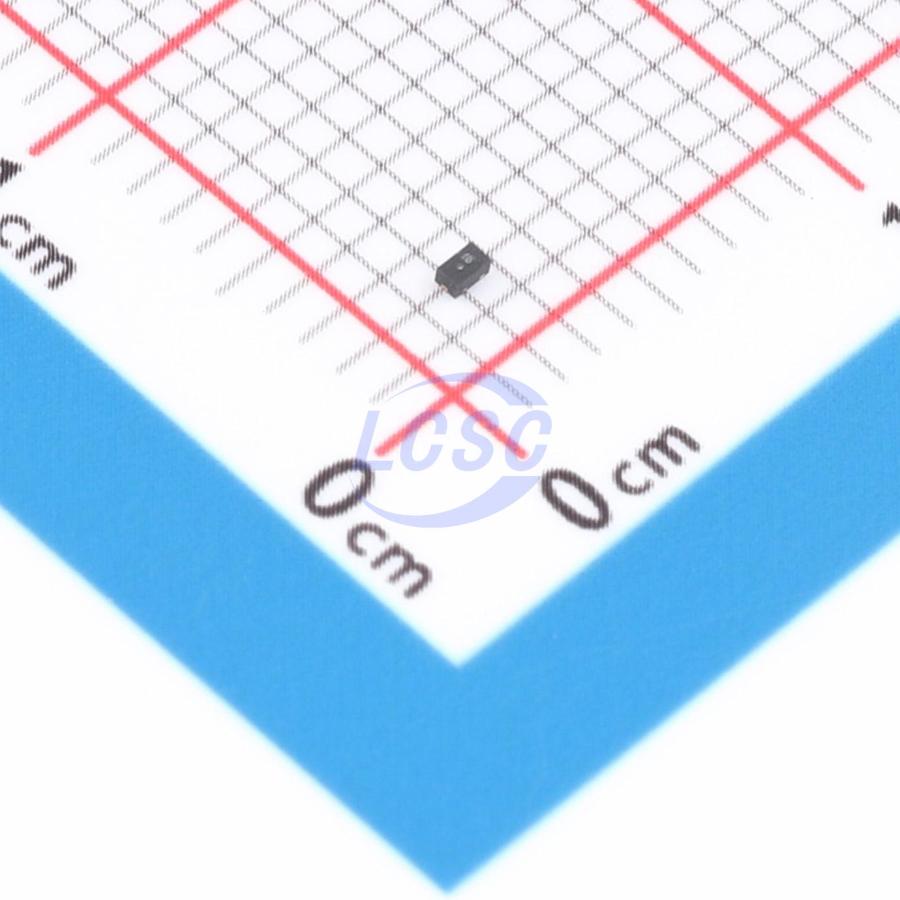

AQ1005-01ETG
15.6VC Clamp 10A@8/20us Ipp TVS DIODE SOD-882
- Manufacturer
- Littelfuse
- Manufacturer part #
- AQ1005-01ETG
- Store part #
- C3709417
- Package / case
- SOD-882
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
315 in stock
#C3709417
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.14 | ₹80.70 |
| 50+ | ₹12.83 | ₹641.50 |
| 150+ | ₹11.18 | ₹1,677.00 |
| 500+ | ₹9.94 | ₹4,970.00 |
5 × ₹16.14
₹80.70
excl. GST
₹95.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
AQ1005-01ETG
₹80.70 for 5 + GST
Specifications
- Clamping Voltage
- 15.6V
- Operating Temperature
- -40℃~+150℃
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Voltage - Breakdown
- 8.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.014 g
Overview
The AQ1005 TVS contains back-to-back breakdown diodes fabricated using proprietary silicon avalanche technology, providing protection for electronic equipment susceptible to destructive ESD. These robust diodes can safely absorb repetitive ESD strikes exceeding the maximum levels specified in the IEC 61000-4-2 international standard (Level 4, ±8 kV contact discharge and ±15 kV air discharge) without performance degradation. The back-to-back configuration provides symmetrical ESD protection for data lines.
Applications
- Mobile phones
- Smartphones
- Cameras
- Portable medical devices
- Digital cameras
Key features
- ESD per IEC 61000-4-2: ±30kV contact discharge, ±30kV air discharge
- ESD per ISO 10605: 330pF, 330Ω, ±30kV contact discharge, ±30kV air discharge
- EFT per IEC 61000-4-4: 40A (5/50ns)
- Lightning surge: 8A (8/20 as defined by IEC 61000-4-5 Edition 2)
- Low capacitance: 30pF (@ VR = 0V)
- Low leakage current: 0.1μA at 5V
- SOD882 footprint compatible with 0402 package
- AEC-Q101 qualified
- Halogen-free, lead-free, RoHS compliant
- PPAP capable
