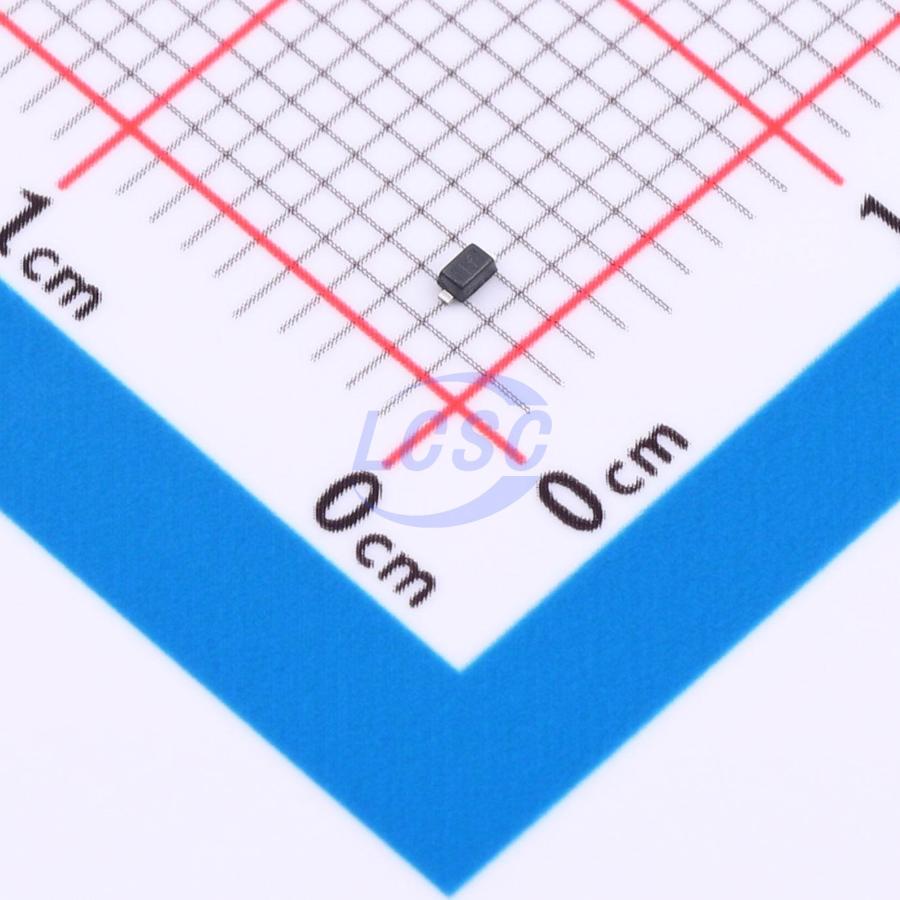

AQ24COM-01LTG
50V 5A@8/20us 250W@8/20us 33V Bidirectional 24V SOD-523 TVS Diodes RoHS
- Manufacturer
- Littelfuse
- Manufacturer part #
- AQ24COM-01LTG
- Store part #
- C20349313
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
352 in stock
#C20349313
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.78 | ₹123.78 |
| 10+ | ₹107.90 | ₹1,079.00 |
| 30+ | ₹100.07 | ₹3,002.10 |
| 100+ | ₹92.24 | ₹9,224.00 |
| 500+ | ₹87.68 | ₹43,840.00 |
| 1,000+ | ₹85.28 | ₹85,280.00 |
1 × ₹123.78
₹123.78
excl. GST
₹146.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AQ24COM-01LTG
₹123.78 for 1 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -40℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 250W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 33V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.048 g
Overview
The AQ24COM-01 series bidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The AQ24COM-01 series TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. In addition, it can safely dissipate a 5 A 8/20 μs surge event as defined in IEC 61000-4-5, 2nd edition.
Applications
- Automotive Applications
- ADAS Control Units
- Body Control Units
- CAN/LIN Bus
- Electronic Control Units
- Factory Automation
- Lighting Control (DALI)
- PowerTrain Control Units
Key features
- ESD, IEC 61000-4-2, ±30 kV contact/air
- ESD, ISO 10605, 330 pF 330 Ω, ±30 kV contact/air
- EFT, IEC 61000-4-4, 40 A (5/50 ns)
- Maximum surge tolerance, IEC 61000-4-5 2nd edition, 5 A (8/20 μs)
- Halogen free, lead free and RoHS compliant
- Moisture sensitivity level (MSL-1)
- AEC-Q101 qualifed and PPAP capable
