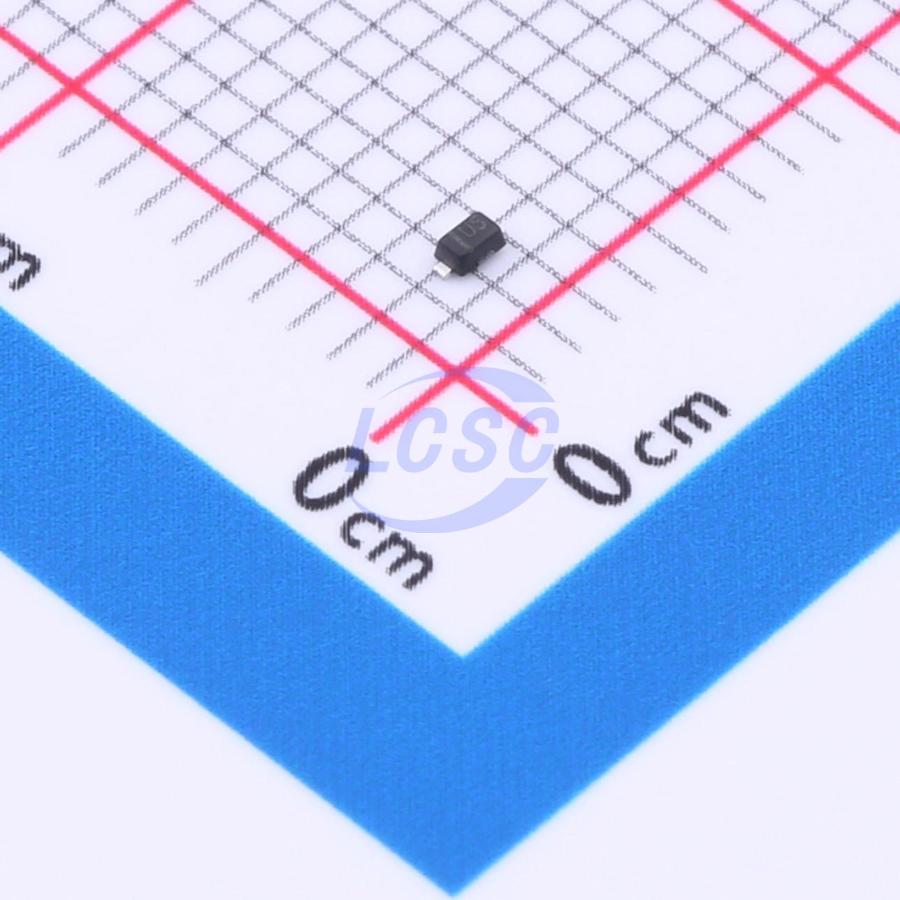

AQHV15-01LTG
35VC Clamp 7A@8/20us Ipp TVS DIODE SOD-523
- Manufacturer
- Littelfuse
- Manufacturer part #
- AQHV15-01LTG
- Store part #
- C1973511
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C1973511
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.32 | ₹261.60 |
| 50+ | ₹45.10 | ₹2,255.00 |
| 150+ | ₹41.99 | ₹6,298.50 |
| 500+ | ₹38.14 | ₹19,070.00 |
| 2,500+ | ₹36.41 | ₹91,025.00 |
| 5,000+ | ₹35.38 | ₹1,76,900.00 |
5 × ₹52.32
₹261.60
excl. GST
₹308.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AQHV15-01LTG
₹261.60 for 5 + GST
Specifications
- Clamping Voltage
- 35V
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 250W@8/20us
- Voltage - Breakdown
- 18.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The AQHVxx-01LTG series is designed to provide an option for very fast acting, high performance over-voltage protection components. This series is ideally suited for power interfaces, passenger charging interfaces, and well as LED lighting modules, and low speed I/Os. It will protect sensitive equipment from damage due to electrostatic discharge (ESD) and other overvoltage transients. It can safely absorb repetitive ESD strikes above the maximum level of the IEC 61000-4-2 international standard (Level 4, ±8KV contact discharge) without performance degradation and safely conduct up to 10A (AQHV12) of induced surge current (IEC 61000-4-5 2nd edition, tp=8/20μs) with very low clamping voltages.
Applications
- LED Lighting Modules
- RS232 / RS485
- Portable Instrumentation
- CAN and LIN Bus
- General Purpose I/O
- Automotive application
Key features
- Low leakage current
- AEC-Q101 qualifed
- Moisture Sensitivity Level (MSL -1)
- Halogen free, lead free and RoHS compliant
- ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
- EFT, IEC 61000-4-4, 40A (5/50ns)
- Lightning, 10A (8/20μs as defined in IEC 61000-4-5 2nd edition) for AQHV12
- Low clamping voltage
- PPAP capable
