TECH PUBLIC

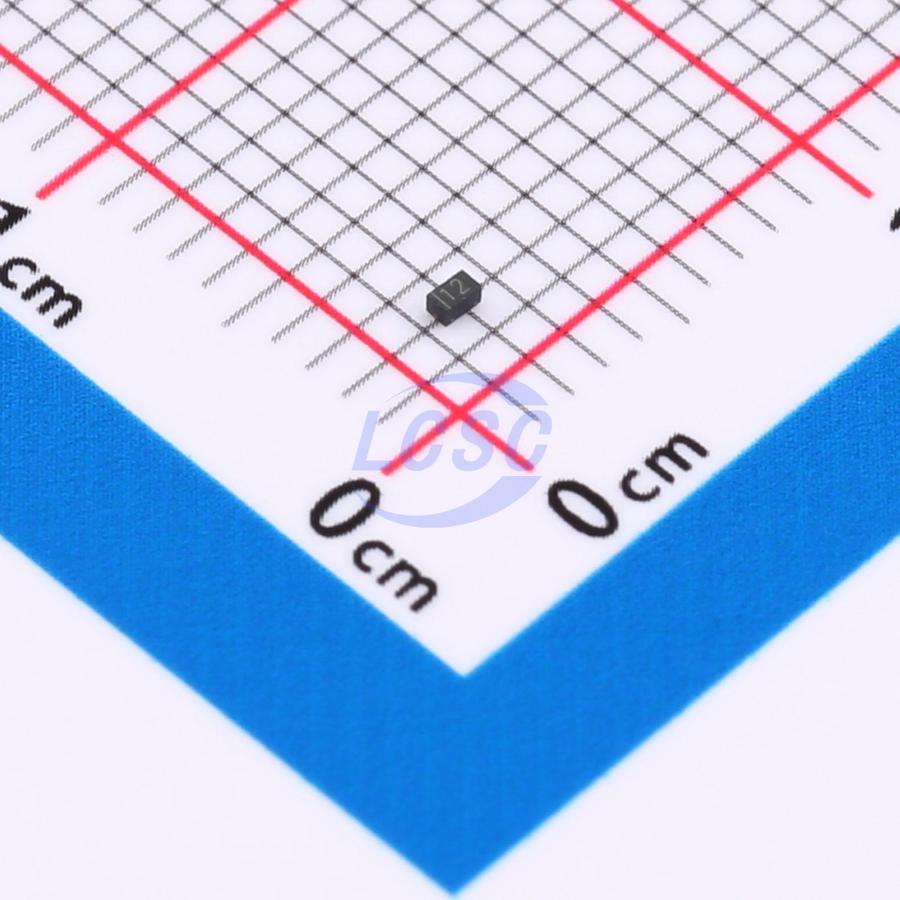

AQHV24-01LTG

50VC Clamp 8A@8/20us Ipp DFN1006-2

DFN1006-2ROHS CompliantActive

24VWM 50VC DFN1006-2

Manufacturer: TECH PUBLIC
Manufacturer part #: AQHV24-01LTG
Store part #: C23380837
Package / case: DFN1006-2
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C23380837

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
10+	₹6.02	₹60.20
100+	₹4.87	₹487.00
300+	₹4.29	₹1,287.00
3,000+	₹3.49	₹10,470.00
6,000+	₹3.15	₹18,900.00
9,000+	₹2.98	₹26,820.00

Quantity (min 10, multiples of 10)

10 × ₹6.02

₹60.20

excl. GST

₹71.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AQHV24-01LTG

₹60.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 50V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 8A@8/20us
Peak Pulse Power Dissipation (Ppp): 350W@8/20us
Voltage - Breakdown: 26.7V
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.01 g

Overview

Applications

Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Digital Cameras
Peripherals
Audio Players
Keypads, Side Keys, LCD Displays

Key features

Ultra small package: 1.0x0.6x0.5mm
Ultra low capacitance: 40pF typical
Ultra low leakage: nA level
Low operating voltage: 24V
Low clamping voltage
2-pin leadless package
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-5 (Lightning) 8A (8/20μs)
RoHS Compliant
Lead Finish: NiPdAu
