ASDsemiDatasheet (PDF)

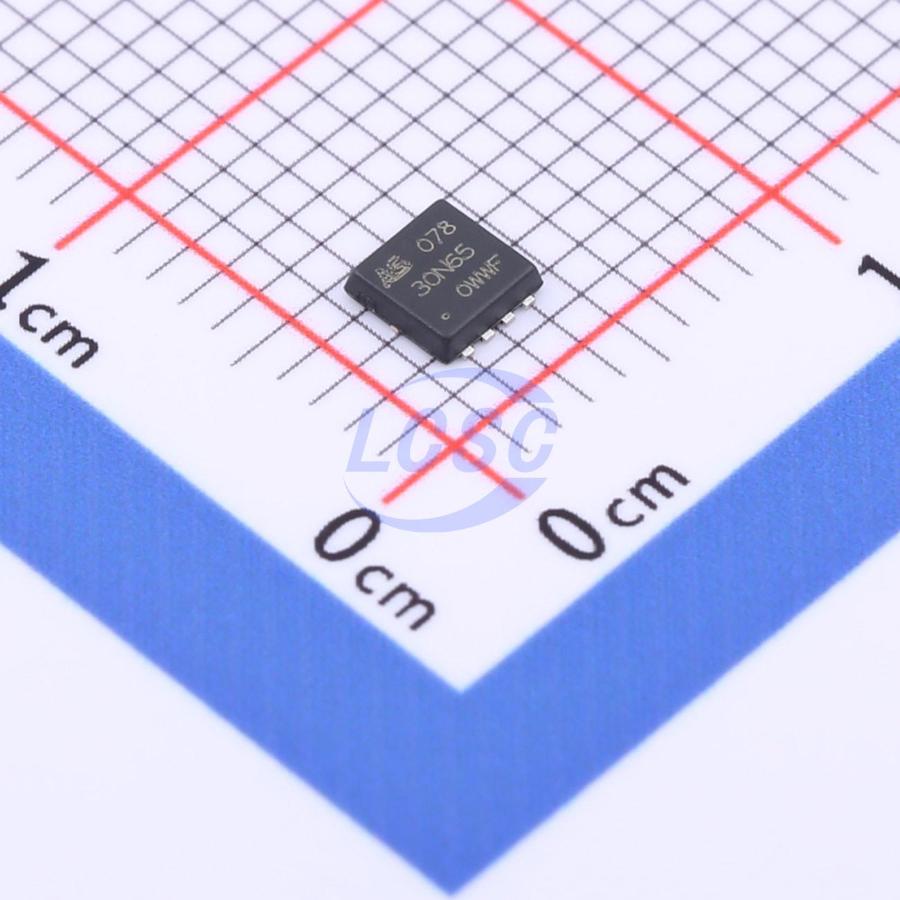

ASDM30N65E-R
N-Channel 30V 32A 25W DFN3.3x3.3-8
DFN3.3x3.3-8RoHSActive
MOSFET N-CH 30V 32A DFN3.3x3.3-8
- Manufacturer
- ASDsemi
- Manufacturer part #
- ASDM30N65E-R
- Store part #
- C2758222
- Package / case
- DFN3.3x3.3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,495 in stock
#C2758222
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.06 | ₹115.30 |
| 50+ | ₹18.14 | ₹907.00 |
| 150+ | ₹16.03 | ₹2,404.50 |
| 500+ | ₹13.40 | ₹6,700.00 |
| 2,500+ | ₹12.09 | ₹30,225.00 |
| 5,000+ | ₹11.39 | ₹56,950.00 |
5 × ₹23.06
₹115.30
excl. GST
₹136.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ASDM30N65E-R
₹115.30 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 436pF
- Current - Continuous Drain(Id)
- 32A
- Ciss-Input Capacitance
- 1.113nF
- Pd - Power Dissipation
- 25W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 5.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.104 g
Overview
Applications
- Power Management in Desktop Computer or DC/DC Converters
- Isolated DC/DC Converters in Telecom and Industrial
Key features
- Low Gate Charge
- Green Device Available
- Super Low Gate Charge
- Excellent CdV/dt effect decline
- Advanced high cell density Trench technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ASDM40N52E-R#C2758236ASDsemi · DFN-8(3.3x3.3) | ASDsemi | DFN-8(3.3x3.3) | 950 | ₹26.51 · 950 in stock | View |
 | ASDM30N55E-R#C2758221ASDsemi · DFN3.3x3.3-8 | ASDsemi | DFN3.3x3.3-8 | 14,145 | ₹16.14 · 14,145 in stock | View |
 | ASDM40N40E-R#C2972887ASDsemi · DFN3.3x3.3-8 | ASDsemi | DFN3.3x3.3-8 | 4,695 | ₹19.59 · 4,695 in stock | View |
