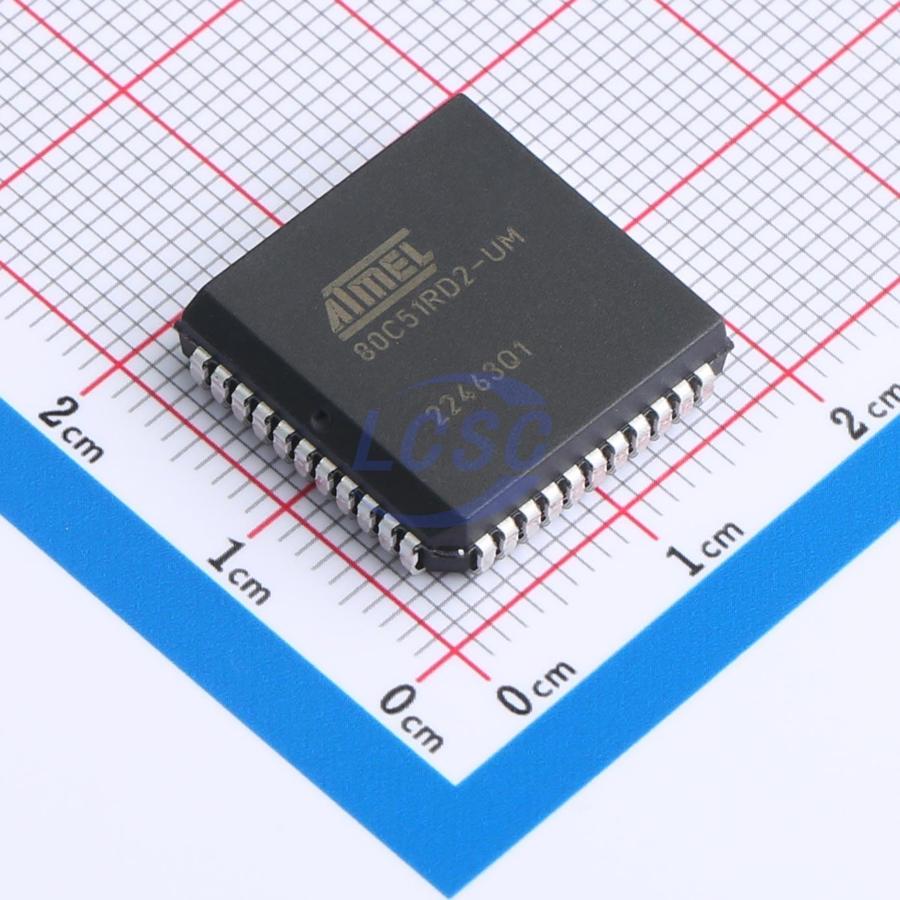

AT80C51RD2-SLRUM

AT80C51RD2 microcontrollers are high performance versions of the 80C51 8-bit microcontrollers. The microcontrollers retain all features of the Atmel 80C52 with 256 bytes of internal RAM, a 7-source 4-level interrupt controller and three timer/counters. In addition, the microcontrollers have a Programmable Counter Array, an XRAM of 1024 byte, a Hardware Watchdog Timer, a Keyboard Interface, a more versatile serial channel that facilitates multiprocessor communication (EUART) and a speed improvement mechanism (X2 mode). The microcontrollers have 2 software-selectable modes of reduced activity and 8 bit clock prescaler for further reduction in power consumption. In Idle mode, the CPU is frozen while the peripherals and the interrupt system are still operating. In the Power-down mode, the RAM is saved and all other functions are inoperative.

Key features

• 80C52 Compatible – Four 8-bit I/O Ports – Three 16-bit Timer/Counters – 256 Bytes Scratch Pad RAM – 8 Interrupt Sources with 4 Priority Levels – Dual Data Pointer
• Variable Length MOVX for Slow RAM/Peripherals
• High-speed Architecture – 10 to 40 MHz in Standard Mode
• 16K/32K Bytes On-Chip ROM Program
• AT80C51RD2 ROMless Versions
• On-Chip 1024 bytes Expanded RAM (XRAM) – Software Selectable Size (0, 256, 512, 768, 1024 bytes) – 256 Bytes Selected at Reset
• Keyboard Interrupt Interface on Port P1
• 8-bit Clock Prescaler
• 64K Program and Data Memory Spaces
• Improved X2 Mode with Independant Selection for CPU and Each Peripheral
• Programmable Counter Array 5 Channels with: – High-speed Output – Compare/Capture – Pulse Width Modulator – Watchdog Timer Capabilities
• Asynchronous Port Reset
• Full Duplex Enhanced UART
• Dedicated Baud Rate Generator for UART
• Low EMI (Inhibit ALE)
• Hardware Watchdog Timer (One-time Enabled with Reset-out)
• Power Control Modes – Idle Mode – Power-down Mode – Power-off Flag
• Power Supply: 2.7V to 5.5V
• Temperature Ranges: Commercial (0 to +70℃) and Industrial (-40℃ to +85℃)
• Packages: PDIL40, PLCC44, VQFP44
