PUYA

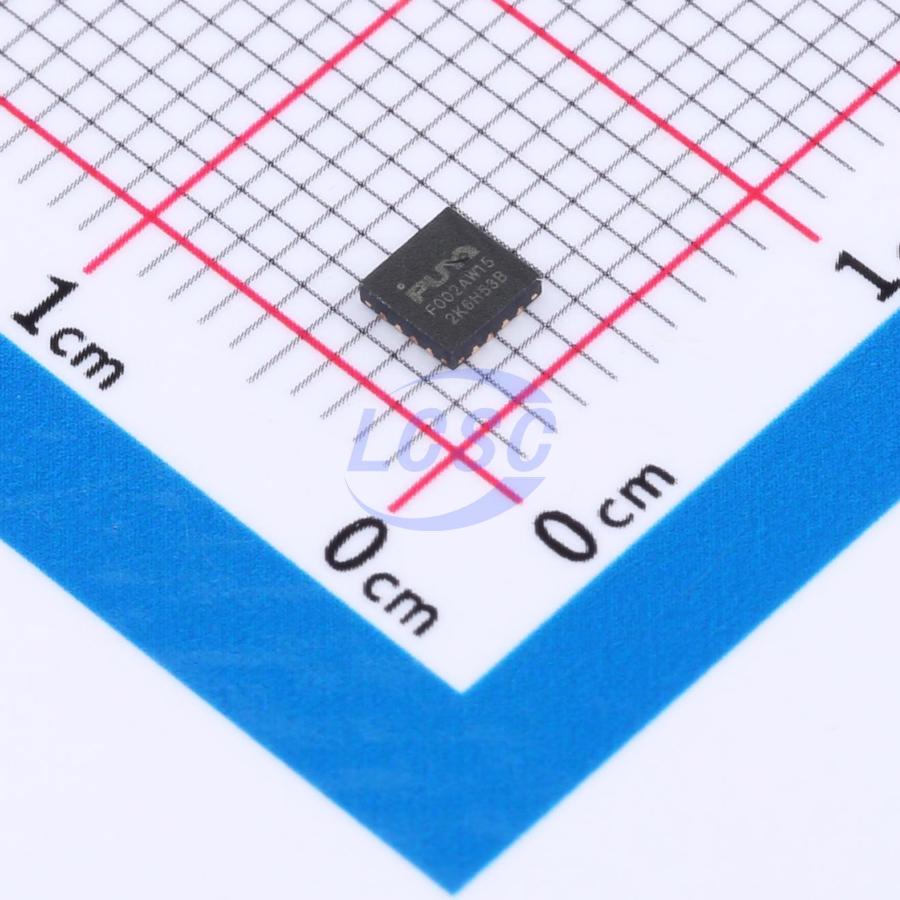

PY32F002AW15U6TR

ARM Cortex-M0+ 32 Bit 24MHz QFN-16 Microcontrollers

QFN-16RoHSActive

32-bit ARM Cortex-M0+ microcontroller

Manufacturer: PUYA
Manufacturer part #: PY32F002AW15U6TR
Store part #: C5291740
Package / case: QFN-16
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

47,720 in stock

#C5291740

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹27.90	₹139.50
50+	₹21.60	₹1,080.00
150+	₹18.91	₹2,836.50
500+	₹15.55	₹7,775.00
2,500+	₹13.18	₹32,950.00
6,000+	₹12.28	₹73,680.00

Quantity (min 5, multiples of 5)

5 × ₹27.90

₹139.50

excl. GST

₹164.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 6,000 per reel

PY32F002AW15U6TR

₹139.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

ADC (Bit): 12bit
Number of I/O: 15
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.7V~5.5V
Program Memory Type: FLASH
Program Storage Size: 20KB
CPU Core: ARM Cortex-M0+
Core Size: 32 Bit
CPU Maximum Speed: 24MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 6,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.12 g

Overview

PY32F002A series microcontrollers adopt a high-performance 32-bit ARM Cortex-M0+ core, which is a MCU with a wide voltage operating range. It embeds up to 20Kbytes of flash and 3Kbytes of SRAM memory, with a maximum operating frequency of 24MHz. It includes multiple products with various package types. The chip integrates multiple communication peripherals such as I2C, SPI, and USART, a 12-bit ADC, and multiple timers. The operating temperature range of the PY32F002A series microcontrollers is -40℃ to 85℃, and the operating voltage range is 1.7V to 5.5V. The chip provides sleep and stop low-power operating modes, which can meet different low-power applications. The PY32F002A series microcontrollers are suitable for a variety of application scenarios, such as controllers, handheld devices, PC peripherals, game and GPS platforms, and industrial applications.

Applications

Controllers
Handheld devices
PC peripherals
Game and GPS platforms
Industrial applications

Key features

32-bit ARM Cortex - M0+
Up to 24MHz operating frequency
Maximum 20Kbytes flash memory
Maximum 3Kbytes SRAM
Internal 8/24MHz RC oscillator (HSI)
Internal 32.768KHz RC oscillator (LSI)
4~24MHz crystal oscillator (HSE)
Operating voltage: 1.7V~5.5V
Low-power modes: Sleep and Stop
Power-on/power-down reset (POR/PDR)
Brown-out detection reset (BOR)
Up to 18 I/O, all can be used as external interrupts
Drive current: 8mA
1 x 12-bit ADC
Support up to 9 external input channels
Input voltage conversion range: 0~VCC
1 16-bit advanced control timer (TIM1)
1 basic timer (TIM16)
1 low-power timer (LPTIM), supports wake-up from stop mode
1 independent watchdog timer (IWDT)
1 SysTick timer
1 serial peripheral interface (SPI)
1 universal synchronous/asynchronous receiver/transmitter (USART), supports automatic baud rate detection
1 I2C interface, supports standard mode (100kHz), fast mode (400kHz), supports 7-bit addressing mode
Hardware CRC-32 module
2 comparators
Unique UID
Serial single-wire debugging (SWD)
Operating temperature: -40~85℃
