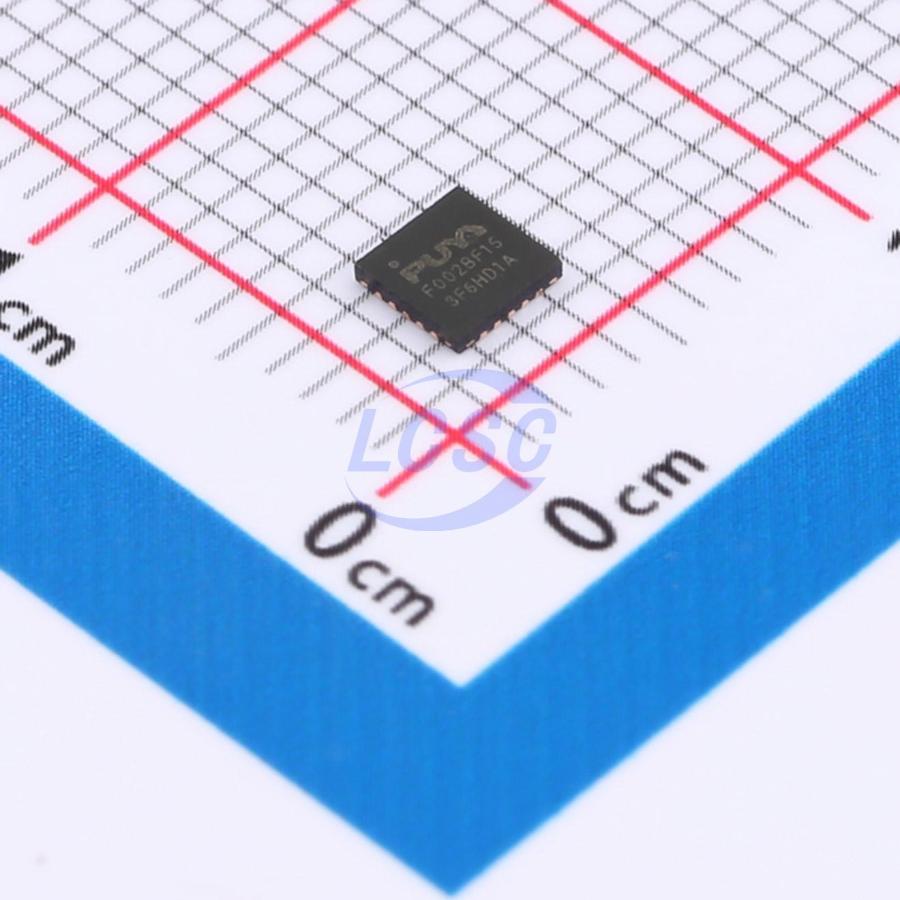

PY32F002BF15U6TR

The PY32F002B series microcontrollers feature a high-performance 32-bit ARM Cortex-M0+ core with a wide operating voltage range. Embedded with 24Kbytes Flash and 3Kbytes SRAM, the MCU operates at a maximum frequency of 24MHz. Multiple products are available in various package types. The chip integrates communication peripherals including I2C, SPI, and USART, along with a 1-channel 12-bit ADC, two 16-bit timers, and 2-channel comparators. The PY32F002B series microcontrollers operate over a temperature range of -40°C ~ 85°C and a supply voltage range of 1.7V ~ 5.5V. The chip offers sleep/stop low-power operating modes to meet diverse low-power application requirements.

Applications

• Controllers
• Handheld devices
• PC peripherals
• Gaming and GPS platforms
• Industrial applications

Key features

• Core: 32-bit ARM Cortex-M0+, up to 24MHz operating frequency
• Memory: 24Kbytes Flash, 3Kbytes SRAM
• Clock System: Internal 24MHz RC oscillator (HSI), internal 32.768KHz RC oscillator (LSI), 32.768KHz low-speed crystal oscillator (LSE), external clock input
• Power Management & Reset: Operating voltage 1.7V ~ 5.5V, low-power modes Sleep/Stop, power-on/power-down reset (POR/PDR), brownout reset (BOR)
• GPIO: Up to 18 I/Os, all capable of external interrupt, 8mA drive current
• 1 x 12-bit ADC: Up to 8 external input channels, 2 internal channels, VADC-REF internal 1.5V, VCC
• Timers: 1x 16-bit advanced control timer (TIM1), 1x 16-bit general-purpose timer (TIM14), 1x low-power timer (LPTIM) with Stop mode wakeup support, 1x independent watchdog timer (IWDT), 1x SysTick timer
• Communication Interfaces: 1x SPI, 1x USART with auto baud rate detection, 1x I2C supporting standard mode (100KHz) and fast mode (400KHz), 7-bit addressing mode
• Hardware CRC-32 module
• 2x comparators
• Unique UID
• Single-wire debug (SWD)
• Operating temperature: -40°C ~ 85°C
