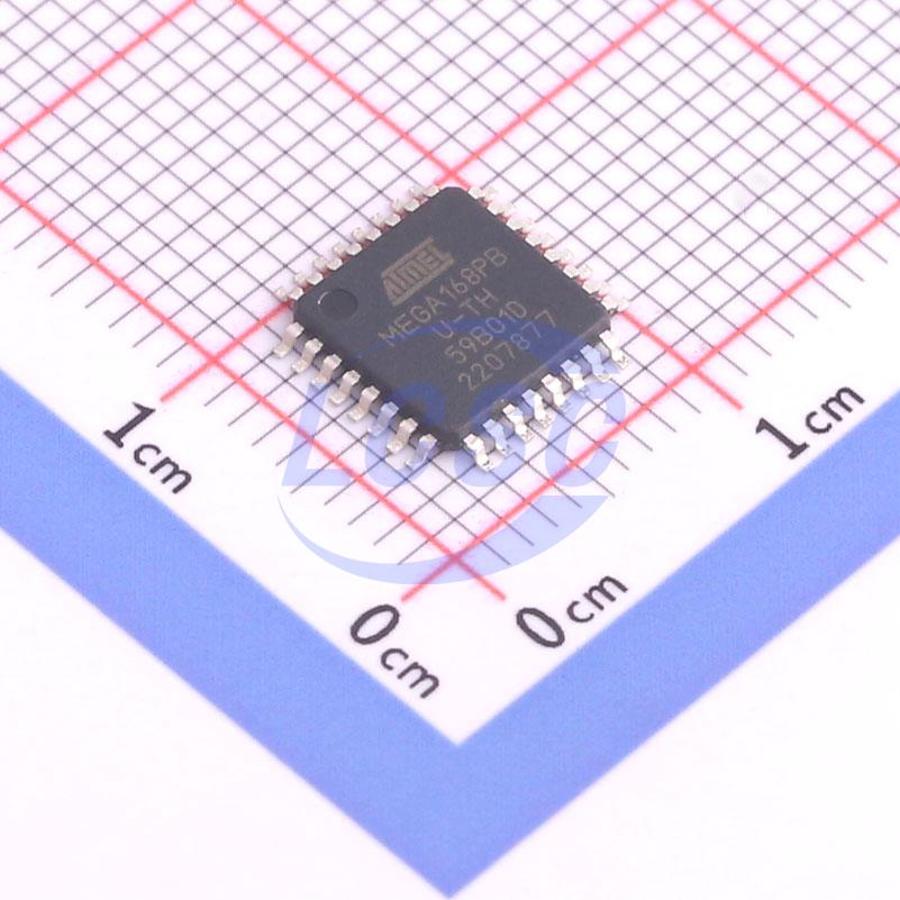

ATMEGA168PB-AU

ATmega48PB/88PB/168PB is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega48PB/88PB/ 168PB achieves throughputs approaching 1MIPS/MHz, allowing the system designer to optimize power consumption versus processing speed.

Key features

• Advanced RISC architecture
• 131 instructions – most single clock cycle execution
• 32x8 general purpose working registers
• Fully static operation
• Up to 20MIPS throughput at 20MHz
• On-chip 2-cycle Multiplier
• High endurance non-volatile memory segments
• 4/8/16KBytes of in-system self-programmable Flash program memory
• 256/512/512Bytes EEPROM
• 512/1K/1KBytes internal SRAM
• Write/Erase cycles: 10,000 Flash/100,000 EEPROM
• Data retention: 20 years at 85℃/100 years at 25℃
• Optional boot code section with independent lock bits
• In-system programming by on-chip boot program
• True Read-While-Write (RWW) operation
• Programming lock for software security
• QTouch library support
• Capacitive touch buttons, sliders and wheels
• QTouch and QMatrix acquisition
• Up to 64 sense channels
• Peripheral Features
• Two 8-bit Timer/Counters (TC) with separate prescaler and compare mode
• 16-bit Timer/Counter with separate prescaler, compare mode, and capture mode
• Real Time Counter (RTC) with separate oscillator
• Six Pulse Width Modulation (PWM) channels
• 8-channel 10-bit Analog-to-Digital converter (ADC) with temperature measurement
• Programmable serial USART with start-of-frame detection
• Master/Slave Serial Interface (SPI)
• Byte-oriented Two-Wire serial Interface (TWI), Philips I2C compatible
• Programmable Watchdog Timer (WDT) with separate on-chip oscillator
• On-chip Analog Comparator (AC)
• Interrupt and Wake-up on pin change
• 256-channel capacitive touch and proximity sensing
• Special microcontroller features
• Power-On Reset (POR) and programmable brown-out detection (BOD)
• Internal calibrated oscillator
• External and internal interrupt sources
• Six Sleep Modes: Idle, ADC Noise Reduction, Power-Save, Power-Down, Standby, and Extended Standby
• Unique device ID
• I/O 27 programmable I/O pins
• Packages 32-pin TQFP, VFQFN
• Operating voltage 1.8V – 5.5V
• Temperature range -40℃ to 105℃
• Speed grades 0 - 4MHz at 1.8-5.5V 0 - 10MHz at 2.7-5.5.V 0 - 20MHz at 4.5-5.5V
• Power consumption at 1MHz, 1.8V, 25℃
• Active mode: 0.35mA
• Power-down mode: 0.23μA
• Power-save mode: <1.4μA (including 32kHz RTC)
