VBsemi ElecDatasheet (PDF)

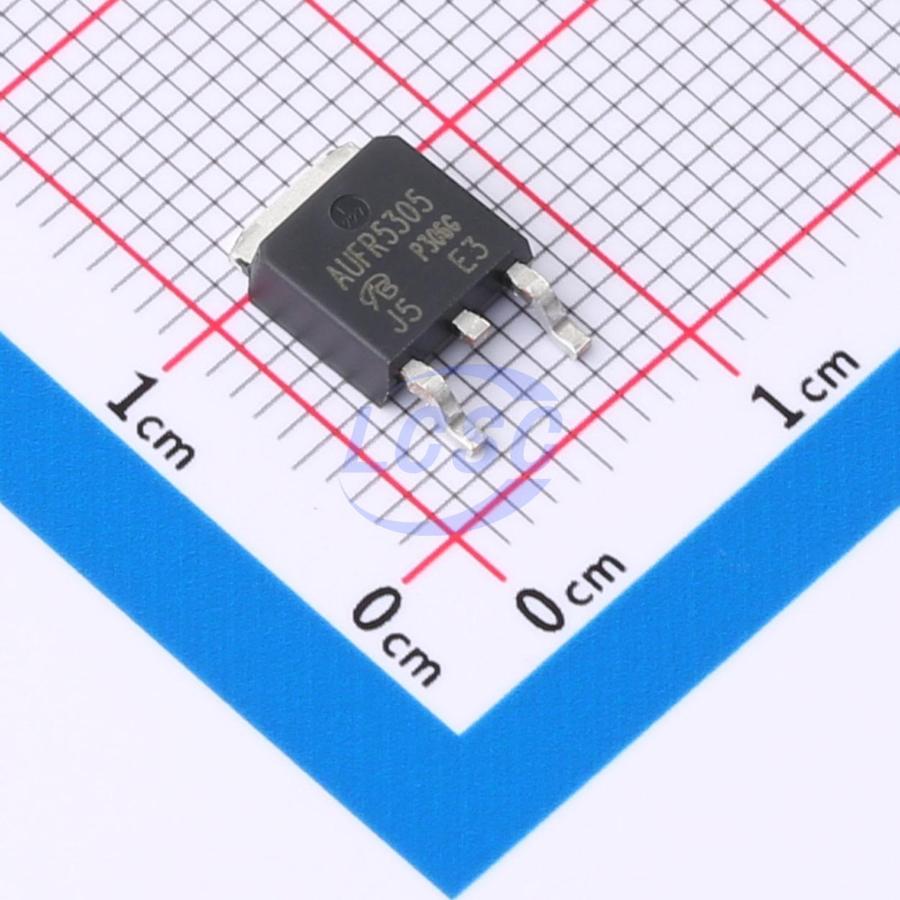

AUFR5305-VB
P-Channel 60V 50A Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 60V 50A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AUFR5305-VB
- Store part #
- C19190133
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C19190133
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.92 | ₹96.92 |
| 10+ | ₹80.19 | ₹801.90 |
| 30+ | ₹71.93 | ₹2,157.90 |
| 100+ | ₹63.68 | ₹6,368.00 |
| 500+ | ₹47.38 | ₹23,690.00 |
| 1,000+ | ₹44.77 | ₹44,770.00 |
1 × ₹96.92
₹96.92
excl. GST
₹114.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AUFR5305-VB
₹96.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 380pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.95nF
- Reverse Transfer Capacitance (Crss)
- 305pF
- RDS(on)
- 20mΩ@10V;25mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.416 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- Material classification:
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RJJ0606JPD-VB#C18212486VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 9 | ₹110.07 · 9 in stock | View |
 | SSD50P06-15D-VB#C19190291VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 37 | ₹115.83 · 37 in stock | View |
 | CEU5175-VB#C19711316VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 35 | ₹115.83 · 35 in stock | View |
 | NP36P06SLG-E1-AY-VB#C19711342VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 65 | ₹115.83 · 65 in stock | View |
 | NP50P06SDG-VB#C22389181VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 3 | ₹110.07 · 3 in stock | View |
