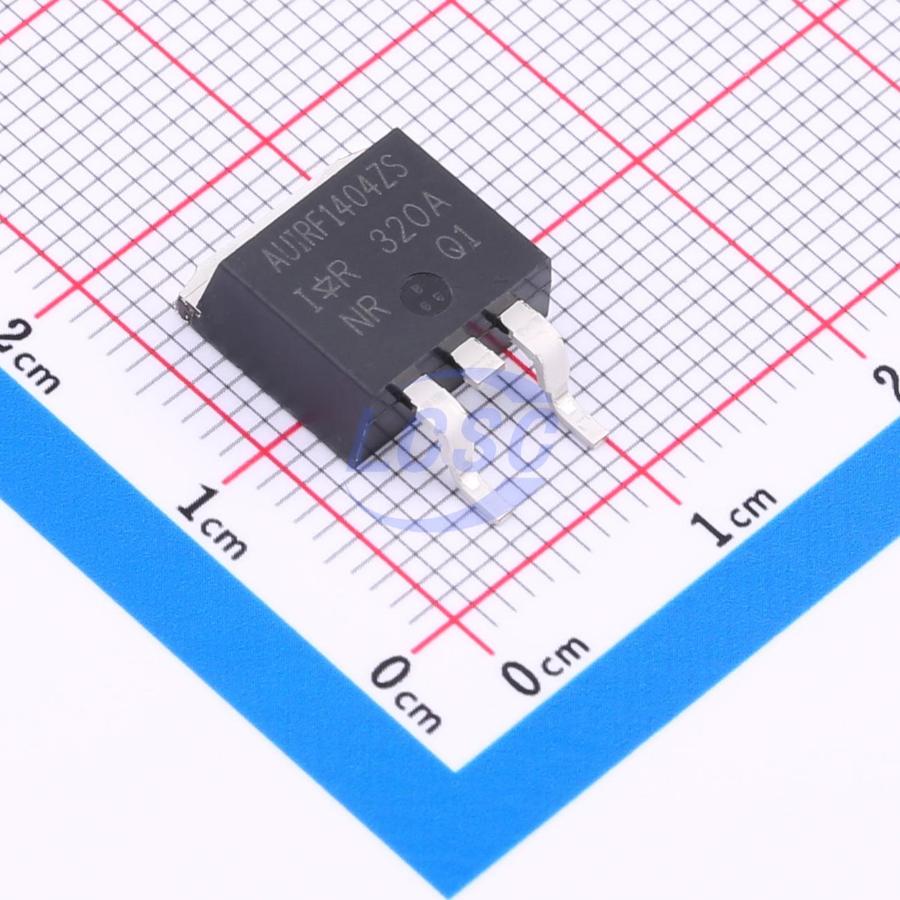

AUIRF1404ZSTRL
N-Channel 40V 180A 200W Surface Mount D2PAK
D2PAKROHS CompliantDiscontinued
MOSFET N-CH 40V 180A D2PAK
- Manufacturer
- Infineon
- Manufacturer part #
- AUIRF1404ZSTRL
- Store part #
- C533228
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C533228
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹443.22 | ₹443.22 |
| 10+ | ₹433.41 | ₹4,334.10 |
| 30+ | ₹427.10 | ₹12,813.00 |
| 100+ | ₹420.58 | ₹42,058.00 |
1 × ₹443.22
₹443.22
excl. GST
₹523.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
AUIRF1404ZSTRL
₹443.22 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.03nF
- Current - Continuous Drain(Id)
- 180A
- Pd - Power Dissipation
- 200W
- RDS(on)
- 3.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 150nC
- Vgs
- ±20V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.69 g
Overview
Specifically designed for Automotive applications, this HEXFET @arrow Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175c junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.
Key features
- Advanced Process Technology
- Ultra Low On-Resistance
- 17500 Operating Temperature
- Fast Switching
- Repetitive Avalanche Allowed up to Tjmax
- Lead-Free, RoHS Compliant Automotive Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP011N03GHTD#C45351230Siliup · TO-263 | Siliup | TO-263 | 460 | ₹113.66 · 460 in stock | View |
 | MPT037N08#C3036703Minos · TO-263 | Minos | TO-263 | 480 | ₹84.86 · 480 in stock | View |
 | JMTE025N04D#C3013678Jiangsu JieJie Microelectronics · TO-263 | Jiangsu JieJie Microelectronics | TO-263 | 108 | ₹119.57 · 108 in stock | View |
 | HYG016N04NR1B#C5121307HUAYI · TO-263-2L | HUAYI | TO-263-2L | 190 | ₹104.48 · 190 in stock | View |
 | HYG020N04NA1B#C2760539HUAYI · TO-263-2L | HUAYI | TO-263-2L | 6 | ₹89.78 · 6 in stock | View |
