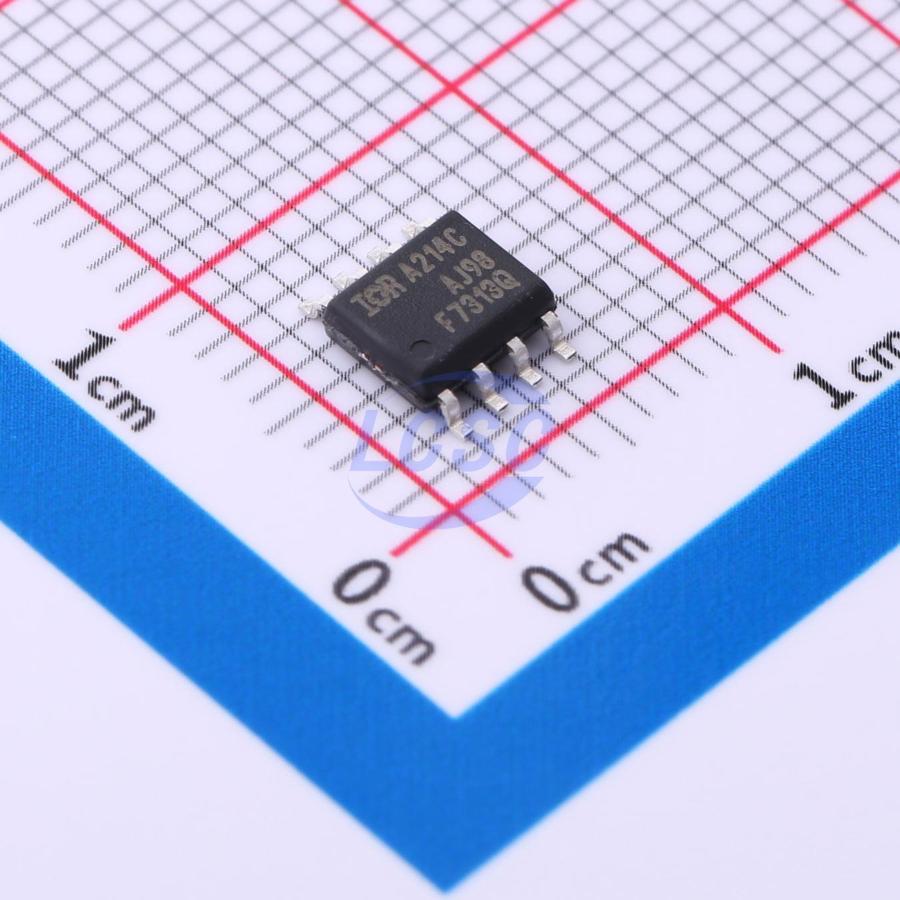

AUIRF7313QTR
N-Channel Array 30V 6.9A 2.4W Surface Mount SO-8
SO-8ROHS CompliantActive
MOSFET N-CH ARR 30V 6.9A SO-8
- Manufacturer
- Infineon
- Manufacturer part #
- AUIRF7313QTR
- Store part #
- C533276
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C533276
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹741.61 | ₹741.61 |
| 10+ | ₹639.67 | ₹6,396.70 |
| 30+ | ₹578.93 | ₹17,367.90 |
| 100+ | ₹517.77 | ₹51,777.00 |
| 500+ | ₹489.48 | ₹2,44,740.00 |
| 1,000+ | ₹476.80 | ₹4,76,800.00 |
1 × ₹741.61
₹741.61
excl. GST
₹875.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AUIRF7313QTR
₹741.61 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 310pF
- Ciss-Input Capacitance
- 755pF
- Pd - Power Dissipation
- 2.4W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 6.9A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 23mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 33nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.45 g
Overview
Specifically designed for Automotive applications, this cellular design of HEXFET Power MOSFETs utilizes the latest processing techniques to achieve low on-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in Automotive and a wide variety of other applications.
Applications
- ```
Key features
- Advanced Planar Technology
- Dual N Channel MOSFET
- Low On-Resistance
- Logic Level Gate Drive Dynamic dv/dt Rating
- 175°C Operating Temperature
- Fast Switching
- Lead-Free, RoHS Compliant Automotive Qualified
