InfineonDatasheet (PDF)

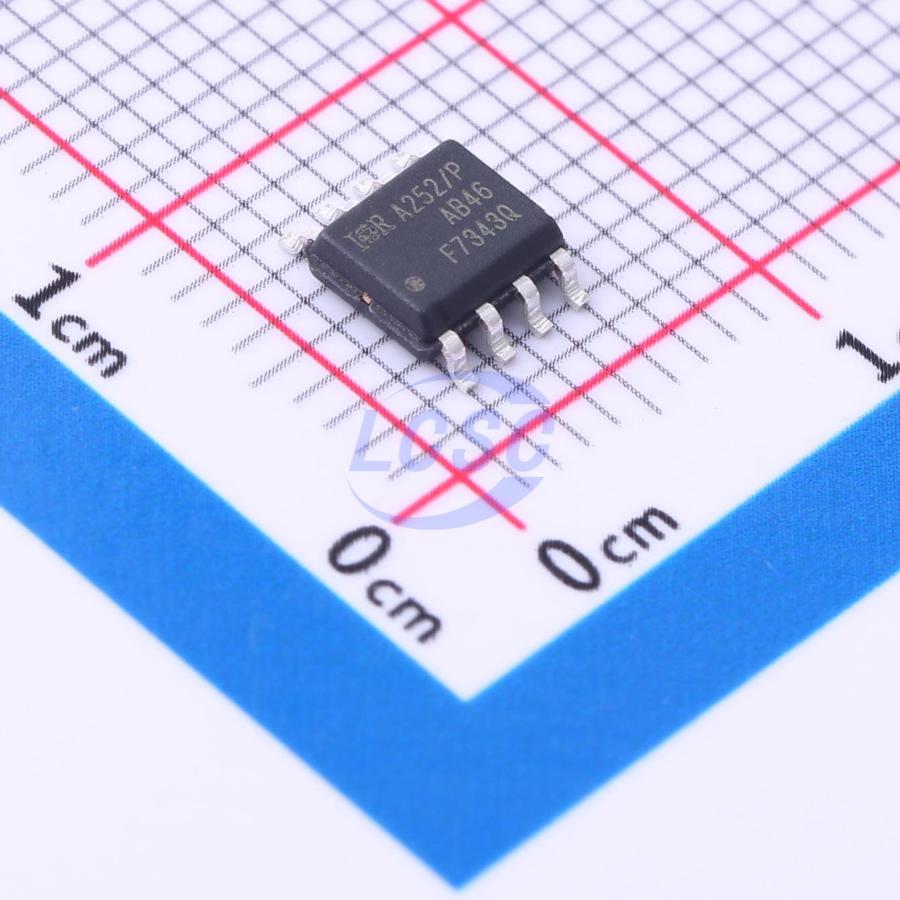

AUIRF7343QTR
2W 55V 4.7A 50mΩ@10V 1 N-Channel + 1 P-Channel N-Channel + P-Channel SO-8 Single FETs, MOSFETs RoHS
SO-8ROHS CompliantActive
MOSFET N/P-CH 55V 4.7A SO-8
- Manufacturer
- Infineon
- Manufacturer part #
- AUIRF7343QTR
- Store part #
- C533280
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C533280
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹360.50 | ₹360.50 |
| 10+ | ₹305.96 | ₹3,059.60 |
| 30+ | ₹271.85 | ₹8,155.50 |
| 100+ | ₹236.86 | ₹23,686.00 |
| 500+ | ₹220.99 | ₹1,10,495.00 |
| 1,000+ | ₹214.26 | ₹2,14,260.00 |
1 × ₹360.50
₹360.50
excl. GST
₹425.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AUIRF7343QTR
₹360.50 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 190pF;210pF
- Ciss-Input Capacitance
- 690pF
- Pd - Power Dissipation
- 2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 4.7A
- Reverse Transfer Capacitance (Crss)
- 86pF
- RDS(on)
- 50mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 36nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
These HEXFET power MOSFETs in a dual SO-8 package are designed for automotive applications, utilizing the latest processing technology to achieve extremely low on-resistance per unit silicon area. Additional features of these automotive-qualified HEXFET power MOSFETs include a 150°C junction operating temperature, fast switching speed, and higher repetitive avalanche ratings. The combination of these advantages makes this design a highly efficient and reliable device suitable for automotive applications and a wide variety of other applications. The efficient SO-8 package offers excellent thermal characteristics and dual MOSFET die capability, making it ideal for a wide range of power applications. This dual SMT SO-8 package provides significant board space savings and is also available in tape-and-reel packaging.
Key features
- Advanced planar technology
- Ultra-low on-resistance
- Logic-level gate drive
- Dual N-channel and P-channel MOSFET
- Surface mount
- Available in tape and reel packaging
- 150°C operating temperature
- Lead-free, RoHS compliant
- AEC-Q qualified
