HXY MOSFETDatasheet (PDF)

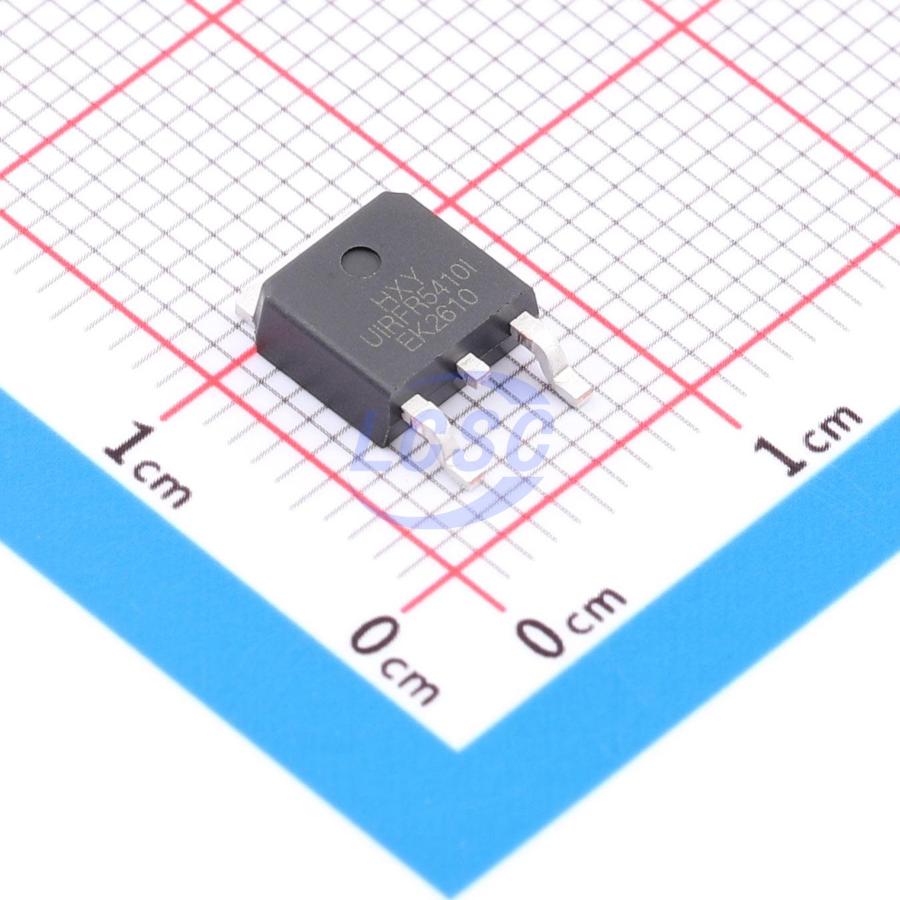

AUIRFR5410-IR-HXY
34W 100V 15A 140mΩ@10V 1 P-Channel P-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- AUIRFR5410-IR-HXY
- Store part #
- C54582844
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C54582844
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.28 | ₹73.28 |
| 10+ | ₹58.62 | ₹586.20 |
| 30+ | ₹52.38 | ₹1,571.40 |
| 100+ | ₹44.61 | ₹4,461.00 |
| 500+ | ₹36.86 | ₹18,430.00 |
| 1,000+ | ₹34.70 | ₹34,700.00 |
1 × ₹73.28
₹73.28
excl. GST
₹86.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AUIRFR5410-IR-HXY
₹73.28 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 69pF
- Ciss-Input Capacitance
- 2.448nF
- Pd - Power Dissipation
- 34W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 54pF
- RDS(on)
- 140mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 47nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Overview
AUIRFR5410 - IR utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Brushless motor
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage (VDS) = -100V, drain current (ID) = -15A
- On-resistance (RDS(ON)) < 170mΩ at gate-source voltage (VGS) = -10V
