InfineonDatasheet (PDF)

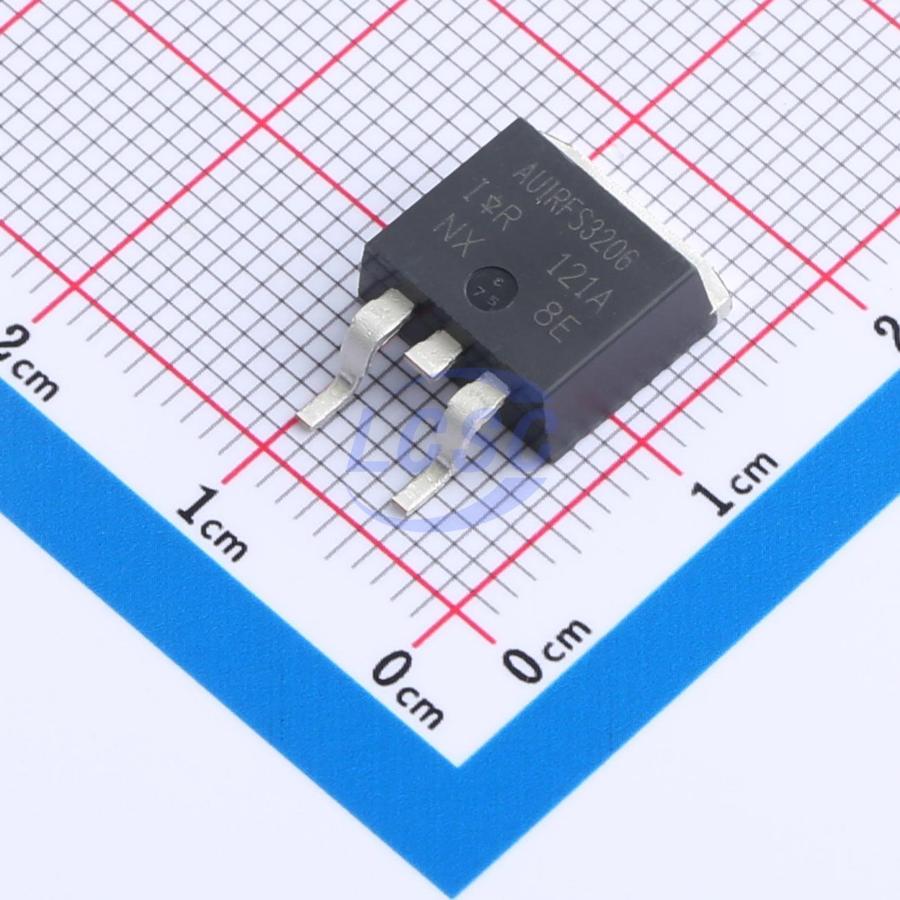

AUIRFS3206TRL
N-Channel 60V 210A 300W Surface Mount D2PAK
D2PAKROHS CompliantActive
MOSFET N-CH 60V 210A D2PAK
- Manufacturer
- Infineon
- Manufacturer part #
- AUIRFS3206TRL
- Store part #
- C533378
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C533378
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,024.88 | ₹1,024.88 |
| 10+ | ₹1,002.68 | ₹10,026.80 |
| 30+ | ₹987.65 | ₹29,629.50 |
| 100+ | ₹972.84 | ₹97,284.00 |
1 × ₹1,024.88
₹1,024.88
excl. GST
₹1,209.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
AUIRFS3206TRL
₹1,024.88 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 720pF
- Current - Continuous Drain(Id)
- 210A
- Pd - Power Dissipation
- 300W
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 170nC@10V
- Vgs
- ±20V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.99 g
Overview
Specifically designed for Automotive applications, this HEXFET Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications
Key features
- Advanced Process Technology
- Ultra Low On-Resistance
- Enhanced dV/dT and dI/dT capability
- 175°C Operating Temperature
- Fast Switching
- Repetitive Avalanche Allowed up to Tjmax
- Lead-Free, RoHS Compliant Automotive Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCEP85T25D#C181921NCE · TO-263-2L | NCE | TO-263-2L | 682 | ₹348.64 · 682 in stock | View |
 | IRFS7534TRLPBF#C538033Infineon · D2PAK | Infineon | D2PAK | 301 | ₹243.05 · 301 in stock | View |
 | BSB10NH027SK1#C54906931Bestirpower · D2PAK | Bestirpower | D2PAK | 86 | ₹74.13 · 86 in stock | View |
 | HYG028N10NS1B#C2886382HUAYI · TO-263-2L | HUAYI | TO-263-2L | 768 | ₹192.28 · 768 in stock | View |
 | AGMH022N10H#C7509653AGMSEMI · TO-263 | AGMSEMI | TO-263 | 16 | ₹155.62 · 16 in stock | View |
