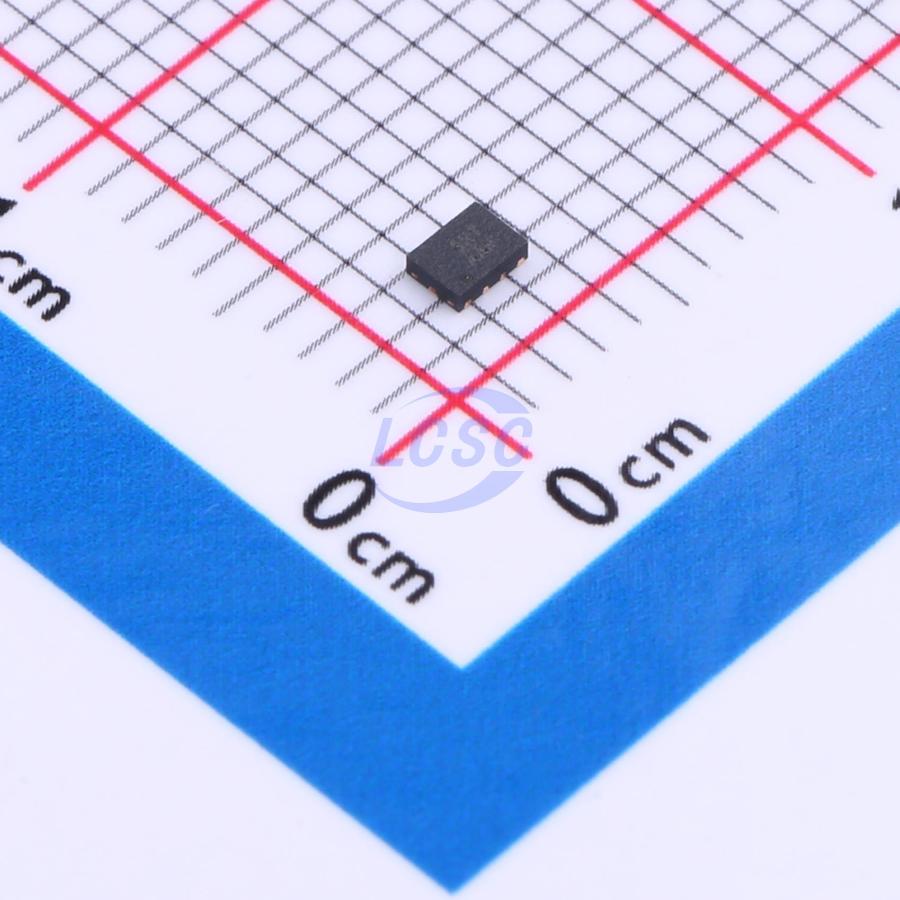

AWINIC(Shanghai Awinic Tech)

AW35742FCR

2.7V~5.5V 5Ω 1GHz 2 2:1 USB FCQFN-10L(1.5x2) Analog Switches - Special Purpose RoHS

FCQFN-10L(1.5x2)ROHS CompliantActive

DPDT USB Switch With Over Voltage Protection

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW35742FCR
Store part #: C5162554
Package / case: FCQFN-10L(1.5x2)
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,985 in stock

#C5162554

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹45.97	₹229.85
50+	₹36.34	₹1,817.00
150+	₹32.22	₹4,833.00
500+	₹27.07	₹13,535.00
3,000+	₹23.63	₹70,890.00
6,000+	₹22.25	₹1,33,500.00

Quantity (min 5, multiples of 5)

5 × ₹45.97

₹229.85

excl. GST

₹271.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW35742FCR

₹229.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Turn-on time: 15us
Turn-off time: 1.5us
Voltage - Supply: 2.7V~5.5V
Ron: 5Ω
-3dB Bandwidth: 1GHz
Number of Channels: 2
Switch Circuit: 2:1
Propagation Delay (tpd): 200ps
Operating Temperature: -40℃~+85℃
Applications: USB
Features: Fault protection
Con: 6pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.025 g

Overview

A Hi-Speed USB 2.0(480Mbps) DPDT (Double Pole Double Throw) switch with integrated protection for USB D+ and D-, it can be configured as a dual 1:2 or 2:1 switch. The protection on the D+/D- pins can tolerate up to 16V DC, when D+ or D- voltage is greater than the OVP(Over-Voltage Protection) threshold, the switch will be automatically shutoff to protect downstream devices. The device operates over 2.7V to 5.5V supply range. It is available in an FCQFN 1.5mm X2.0mm X0.55mm-10L package. The switch can pass signals with bandwidth 1GHz to maintain signal integrity and eye compliance.
