MSKSEMIDatasheet (PDF)

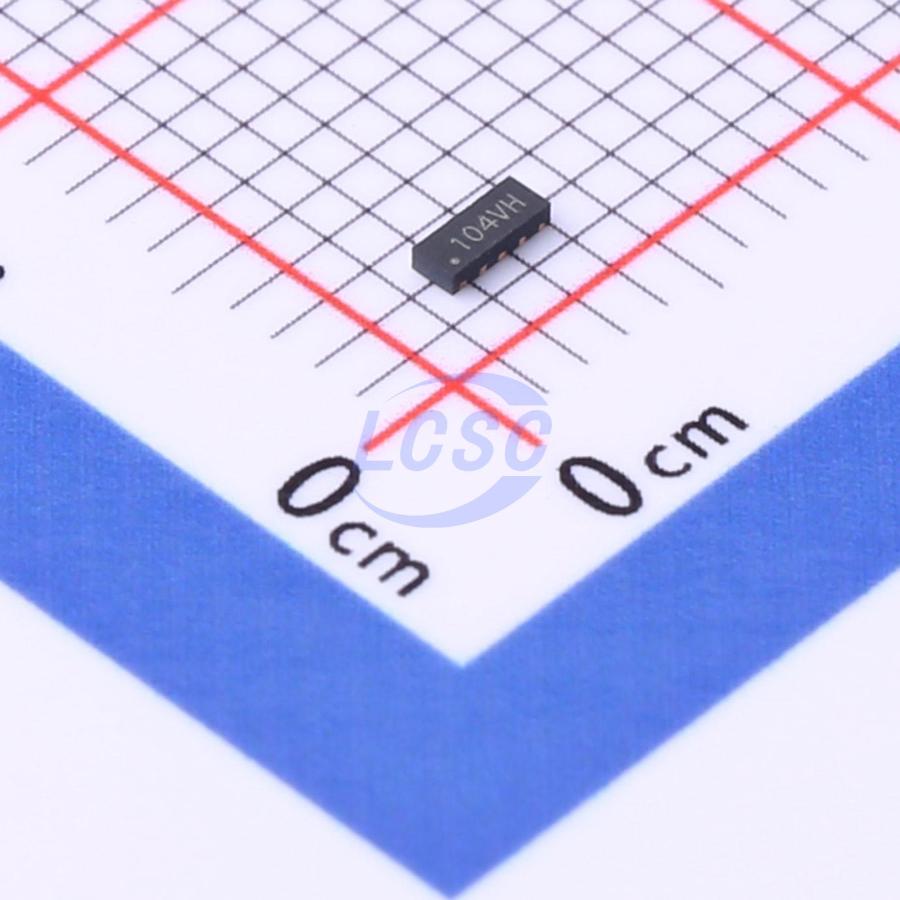

AZ1345-04F-MS
25VC Clamp 5A@8/20us Ipp ESD DIODE DFN2510-10
DFN2510-10RoHSActive
ESD DIODE 5VWM 25VC DFN2510-10
- Manufacturer
- MSKSEMI
- Manufacturer part #
- AZ1345-04F-MS
- Store part #
- C2847056
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C2847056
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.47 | ₹94.70 |
| 100+ | ₹7.59 | ₹759.00 |
| 300+ | ₹6.65 | ₹1,995.00 |
| 3,000+ | ₹5.44 | ₹16,320.00 |
| 6,000+ | ₹4.87 | ₹29,220.00 |
| 9,000+ | ₹4.59 | ₹41,310.00 |
10 × ₹9.47
₹94.70
excl. GST
₹111.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AZ1345-04F-MS
₹94.70 for 10 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- High Definition Multi-Media Interface (HDMI)
- Digital Visual Interface (DVI)
- USB 1.1/2.0/3.0/OTG
- IEEE 1394 Firewire Ports
- Notebooks & Handhelds
- Projection TV & Monitors
- Set-top box
- Flat Panel Displays
- PCI Express
Key features
- Protects two or four I/O lines
- Low capacitance: 0.5pF Typical between I/O chann
- Low leakage current
- 5V operating voltage
- Response time < 1ns
- Solid-state silicon avalanche technology
- Device meets MSL 1 requirements
- RoHS compliant
