TECH PUBLICDatasheet (PDF)

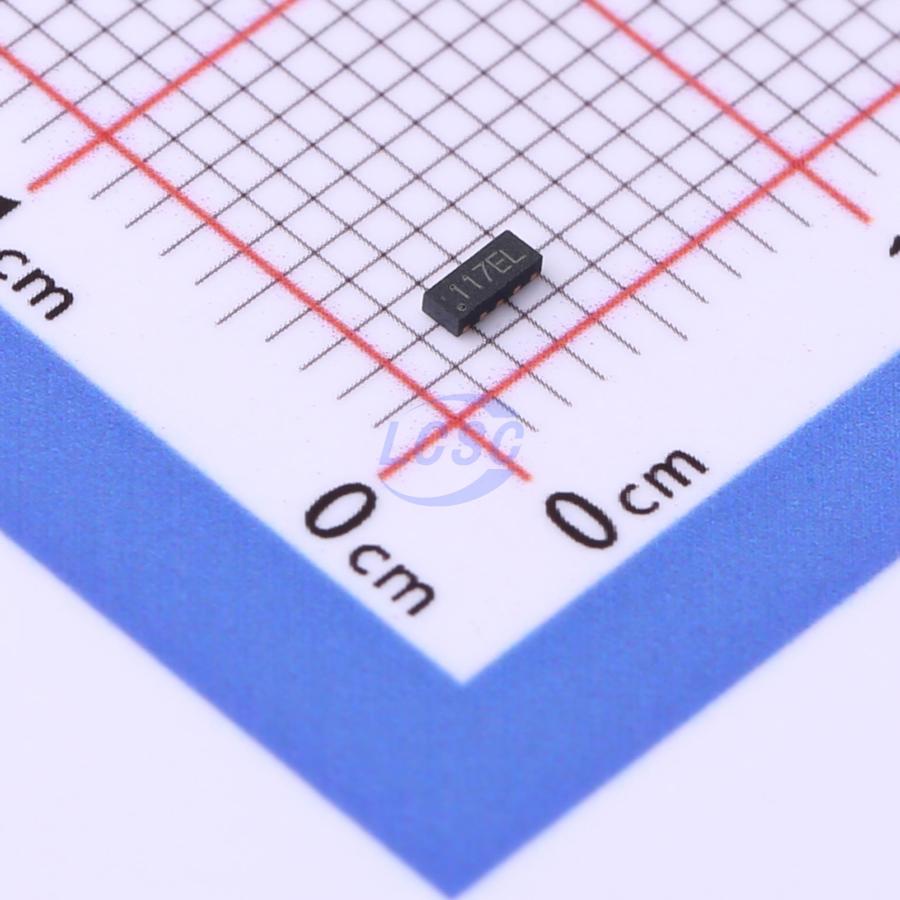

AZ1345-04F-P
16VC Clamp 4A@8/20us Ipp DFN2510-10
DFN2510-10RoHSActive
5VWM 16VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AZ1345-04F-P
- Store part #
- C3021115
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,720 in stock
#C3021115
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.95 | ₹79.50 |
| 100+ | ₹6.28 | ₹628.00 |
| 300+ | ₹5.45 | ₹1,635.00 |
| 3,000+ | ₹4.68 | ₹14,040.00 |
| 6,000+ | ₹4.18 | ₹25,080.00 |
| 9,000+ | ₹3.93 | ₹35,370.00 |
10 × ₹7.95
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AZ1345-04F-P
₹79.50 for 10 + GST
Specifications
- Clamping Voltage
- 9V;16V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- High Definition Multimedia Interface (HDMI) Digital Visual Interface (DVI) Unified Display Interface (UDI) MDDI Ports
- PCI Express Serial ATA
Key features
- Ultra low capacitance: 0.3pF typical (I/O to I/0)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning): 4 A(8/20μs)
- ROHS Compliant
- Case Material: “Green” Molding Compound
- UL Flammability Classification Rating 94V - 0
- Moisture Sensitivity: Level 3 per J - STD - 020
