TECH PUBLICDatasheet (PDF)
AZ2015-05R

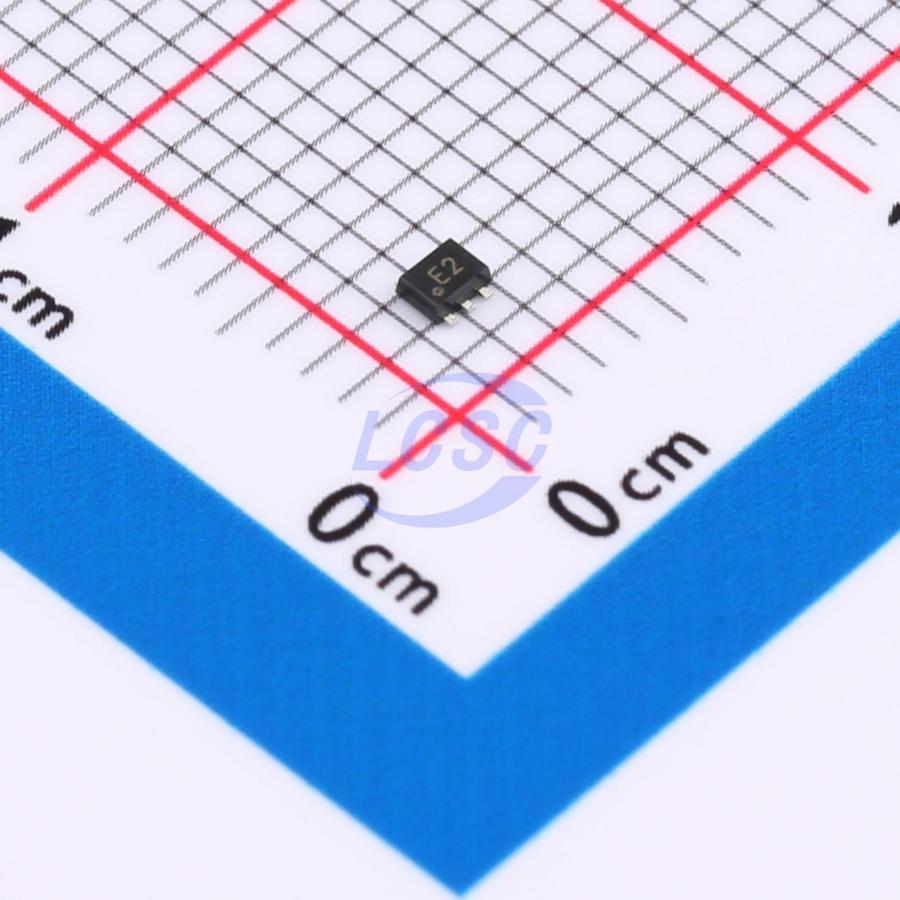

12VC Clamp 3A@8/20us Ipp SOT-563
SOT-563RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AZ2015-05R
- Store part #
- C23380839
- Package / case
- SOT-563
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C23380839
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.05 | ₹55.25 |
| 50+ | ₹8.88 | ₹444.00 |
| 150+ | ₹7.78 | ₹1,167.00 |
| 500+ | ₹6.96 | ₹3,480.00 |
| 2,500+ | ₹6.31 | ₹15,775.00 |
| 4,000+ | ₹5.98 | ₹23,920.00 |
5 × ₹11.05
₹55.25
excl. GST
₹65.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AZ2015-05R
₹55.25 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 40W@8/20us
- Voltage - Breakdown
- 6.5V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Set-top boxes
- Notebooks and Handhelds
Key features
- Low operating voltage: 5V
- Ultra low capacitance: 0.3 pF typical (I/O to I/O)
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15 kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning): 3.0A (8/20μs)
- These are Pb-Free Devices
- Response Time is Typically < 1 ns
