TECH PUBLICDatasheet (PDF)

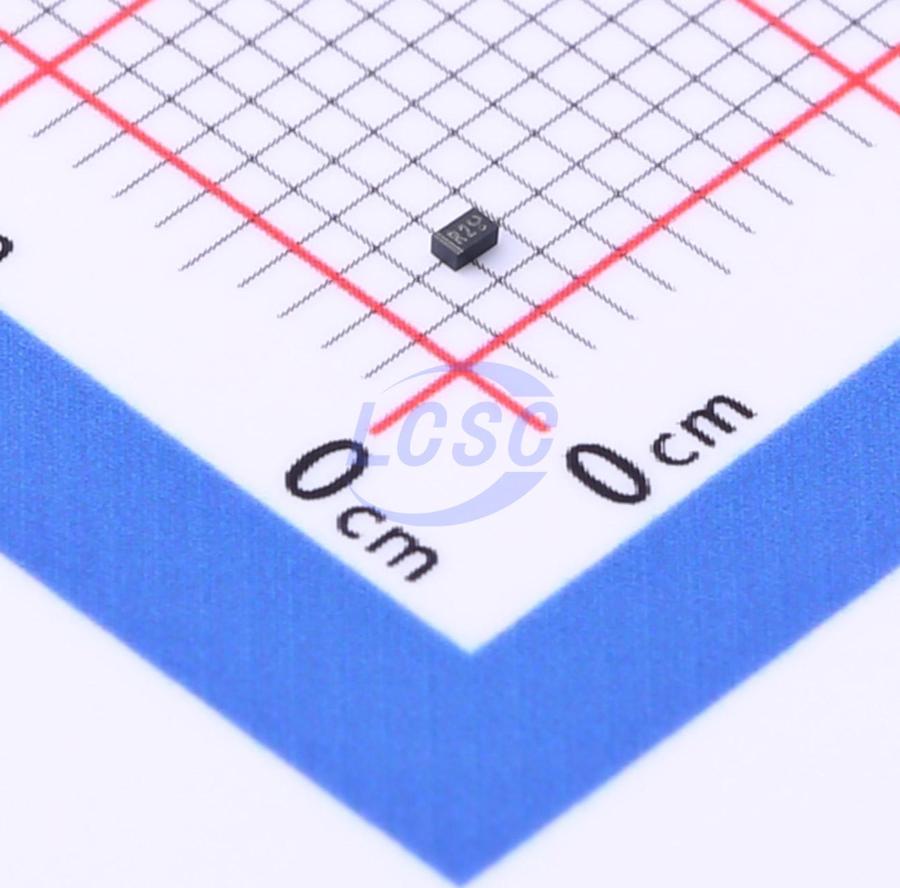

AZ4208-01F-P
12VC Clamp 6A@8/20us Ipp ESD DIODE DFN1006-2
DFN1006-2RoHSActive
ESD DIODE 8VWM 12VC DFN1006-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AZ4208-01F-P
- Store part #
- C2875162
- Package / case
- DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,260 in stock
#C2875162
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹1.93 | ₹38.60 |
| 200+ | ₹1.89 | ₹378.00 |
| 600+ | ₹1.87 | ₹1,122.00 |
| 2,000+ | ₹1.84 | ₹3,680.00 |
20 × ₹1.93
₹38.60
excl. GST
₹45.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
AZ4208-01F-P
₹38.60 for 20 + GST
Specifications
- Clamping Voltage
- 12V
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.009 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
Key features
- Ultra small package: 1.0x0.6x0.5mm
- Ultra low capacitance: 20pF max
- Ultra low leakage: nA level
- Low operating voltage: ±8V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-5 (Lightning) 6A (8/20μs)
- RoHS Compliant
- Lead Finish: NiPdAu
