TECH PUBLICDatasheet (PDF)

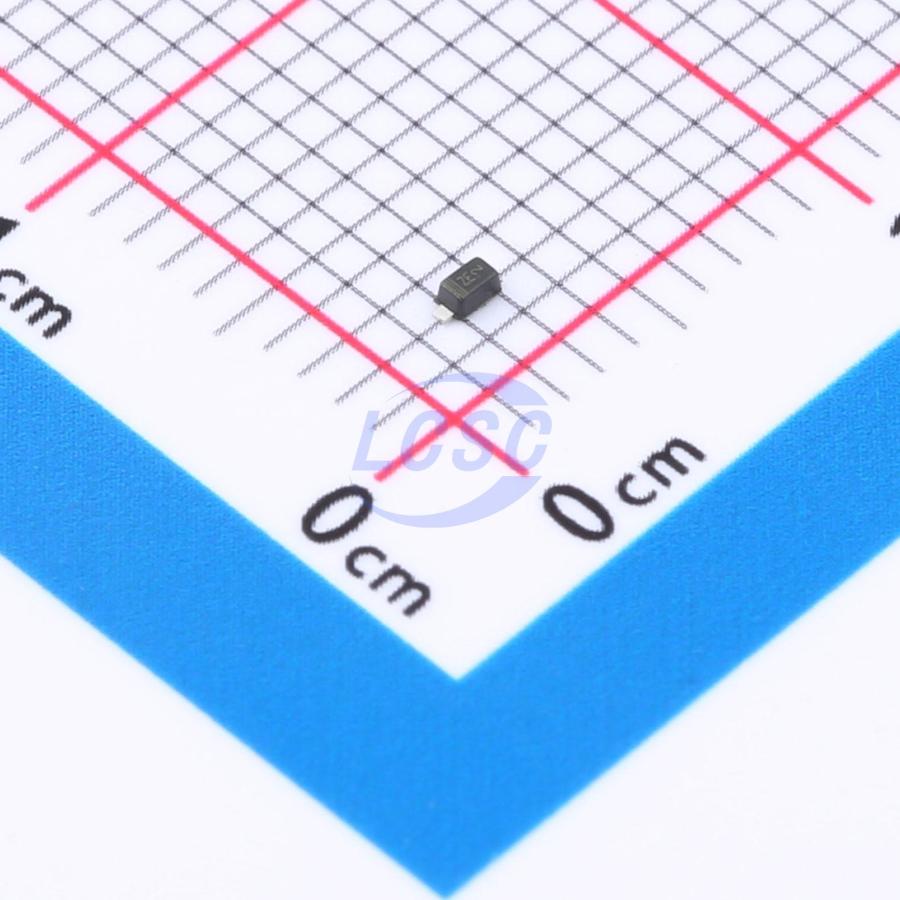

AZ5013-01H
nan
SOD-523RoHSActive
3.3VWM 14VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AZ5013-01H
- Store part #
- C7603373
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
660 in stock
#C7603373
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.55 | ₹71.00 |
| 200+ | ₹2.77 | ₹554.00 |
| 600+ | ₹2.33 | ₹1,398.00 |
| 3,000+ | ₹2.06 | ₹6,180.00 |
| 9,000+ | ₹1.84 | ₹16,560.00 |
| 21,000+ | ₹1.72 | ₹36,120.00 |
20 × ₹3.55
₹71.00
excl. GST
₹83.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AZ5013-01H
₹71.00 for 20 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 11A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.022 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- Audio Players
- Keypads, Side Keys, LCD Displays, USB2.0
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines td
- IEC 61000 - 4 - 2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000 - 4 - 4 (EFT) 40A(5/50ns)
- Protects One Power or I/O Port
- Low leakage current
- Low operating and clamping voltages
- Solid - state silicon avalanche technology
