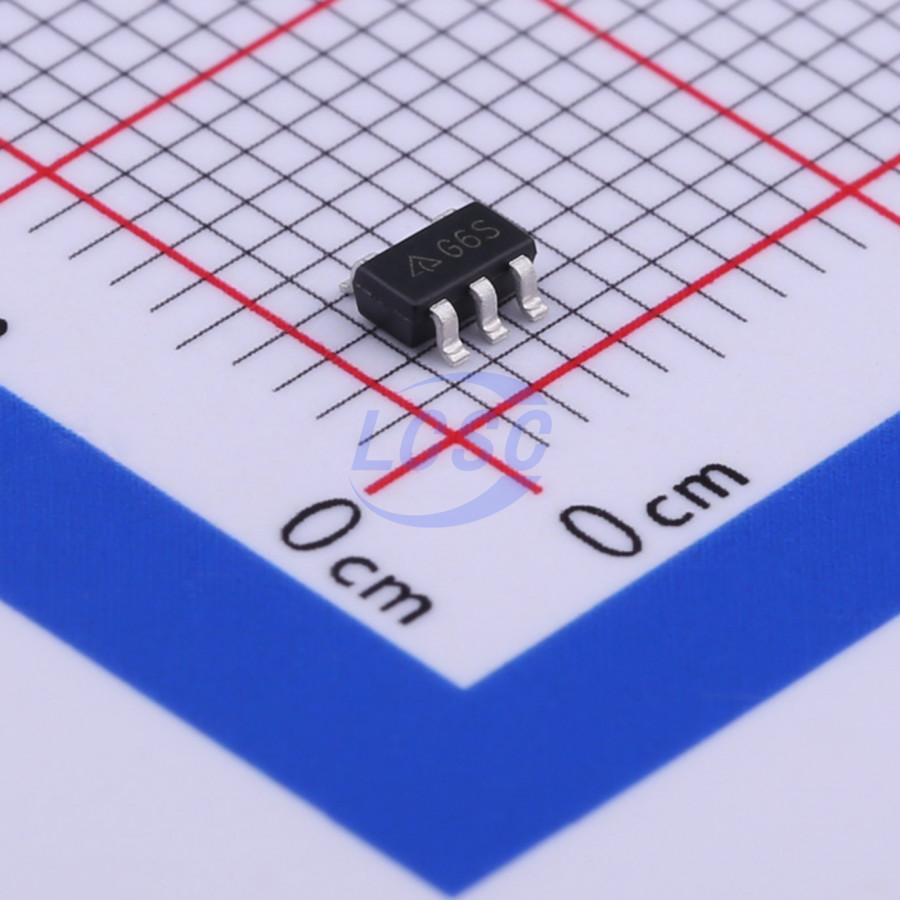

AZV331KTR-G1
1 60uA 1.7mV SOT-23-5 Comparators RoHS
Single general-purpose low-voltage comparator
- Manufacturer
- DIODES
- Manufacturer part #
- AZV331KTR-G1
- Store part #
- C132221
- Package / case
- SOT-23-5
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39,320 in stock
#C132221
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.80 | ₹94.00 |
| 50+ | ₹15.07 | ₹753.50 |
| 150+ | ₹13.20 | ₹1,980.00 |
| 500+ | ₹11.80 | ₹5,900.00 |
| 3,000+ | ₹10.68 | ₹32,040.00 |
| 6,000+ | ₹10.12 | ₹60,720.00 |
5 × ₹18.80
₹94.00
excl. GST
₹110.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AZV331KTR-G1
₹94.00 for 5 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA;2nA
- Output Mode
- TTL
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 25nA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 450ns
- Quiescent Current(Iq)
- 60uA
- Vos - Input Offset Voltage
- 1.7mV
- Maximum Power Supply Range (Vdd-Vss)
- 6V
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The AZV331 is a low voltage 2.5V to 5.5V, single comparator, which has a very low supply current of 60μA, making the part an excellent choice for portable electronic systems. The device is pin-for-pin compatible replacement of the LMV331. The AZV331 is built with BiCMOS process with bipolar input and output stages for improved noise performance. It is a cost-effective solution for portable consumer products where space, low voltage, low power and price are the primary specification in circuit design.
Applications
- Notebook and PDA
- Low Power, Low Voltage Applications
- General Purpose Portable Devices
- Mobile Communication
- Battery-Powered Systems
Key features
- Guaranteed 2.5V to 5.5V Performance
- Industrial Temperature Range: -40°C to 85°C
- Low Supply Current: 60μA Typical
- Input Common Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 200mV Typical Open Collector Output for Maxima Flexibility
- Space Saving SC-70-5 and SOT-23-5 Packages
