DIODESDatasheet (PDF)

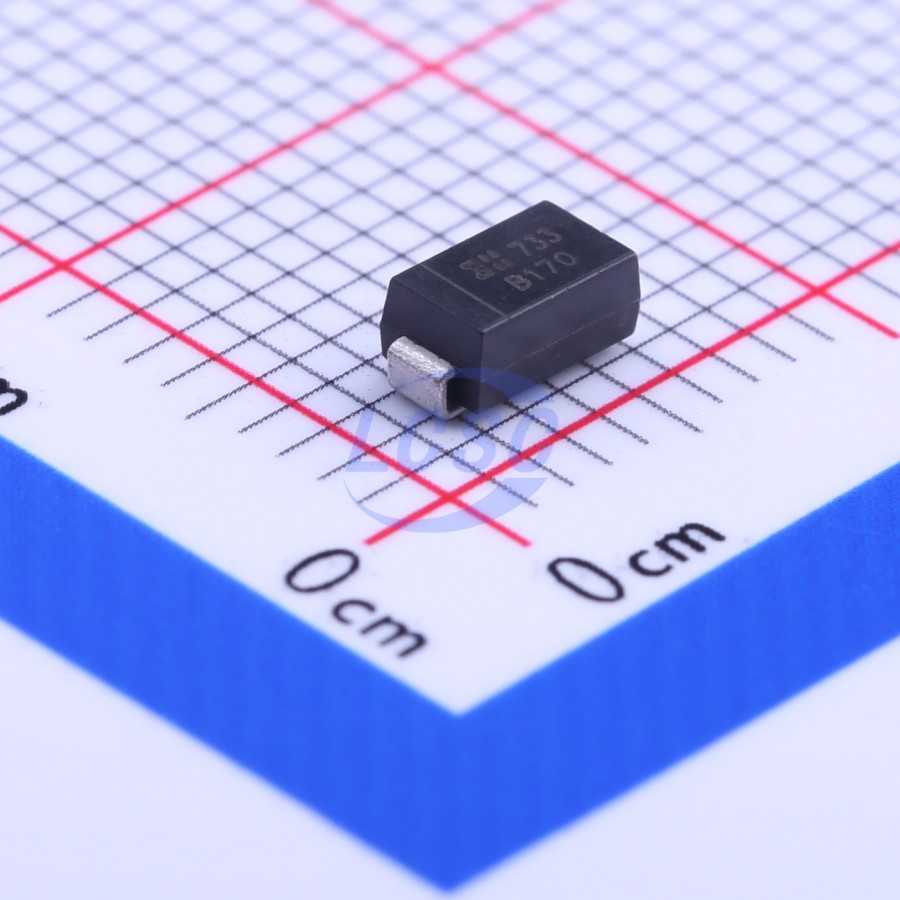

B170-13-F
1 Independent 70V 790mV@1A 1A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS CompliantActive
Voltage: 70V Current: 1A
- Manufacturer
- DIODES
- Manufacturer part #
- B170-13-F
- Store part #
- C134435
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
520 in stock
#C134435
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.00 | ₹220.00 |
| 50+ | ₹36.40 | ₹1,820.00 |
| 150+ | ₹33.13 | ₹4,969.50 |
| 500+ | ₹29.05 | ₹14,525.00 |
| 2,500+ | ₹27.24 | ₹68,100.00 |
| 5,000+ | ₹26.16 | ₹1,30,800.00 |
5 × ₹44.00
₹220.00
excl. GST
₹259.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
B170-13-F
₹220.00 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 70V
- Voltage - Forward(Vf@If)
- 790mV@1A
- Reverse Leakage Current (Ir)
- 500uA@70V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Applications
- Polarity protection diode
- Re-circulating diode
- Blocking diode
- DC-DC
- AC-DC
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency
- For Use in Low Voltage Drop, High Frequency Inverters, Free Wheeling, and Polarity Protection Application
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free, "Green" Device
- This part is qualified to IEEE 8 standards (as references in AEC-Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B1100-13-F#C110106DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 56,480 | ₹13.97 · 56,480 in stock | View |
 | B190-13-F#C134438DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 255 | ₹14.14 · 255 in stock | View |
 | B180-13-F#C155354DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 3,260 | ₹27.65 · 3,260 in stock | View |
 | B180Q-13-F#C3003069DIODES · SMA | DIODES | SMA | 40 | ₹22.54 · 40 in stock | View |
 | B190Q-13-F#C5244339DIODES · SMA | DIODES | SMA | On request | ₹14.69 · 0 in stock | View |
