DIODESDatasheet (PDF)

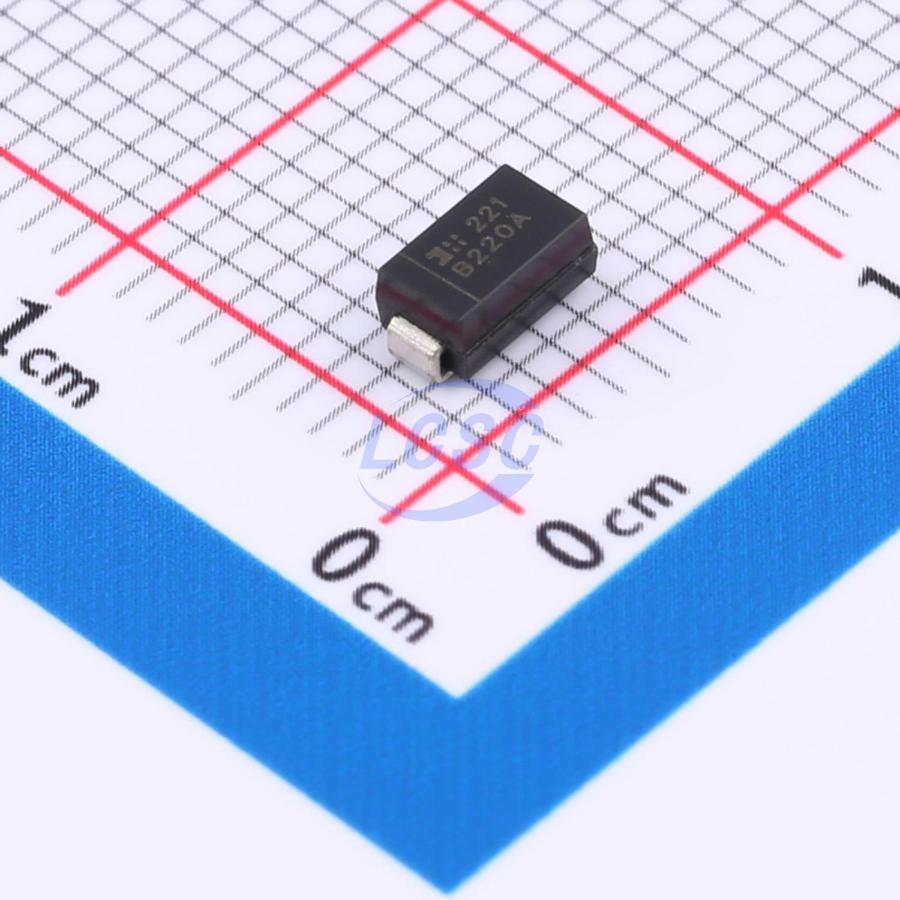

B220AQ-13-F
1 Independent 20V 500mV@2A 2A SMA Single Diodes RoHS
SMAROHS3 CompliantActive
Voltage： 20V Current： 2A
- Manufacturer
- DIODES
- Manufacturer part #
- B220AQ-13-F
- Store part #
- C5244340
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
585 in stock
#C5244340
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.02 | ₹65.10 |
| 50+ | ₹12.74 | ₹637.00 |
| 150+ | ₹12.56 | ₹1,884.00 |
| 500+ | ₹12.37 | ₹6,185.00 |
5 × ₹13.02
₹65.10
excl. GST
₹76.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
B220AQ-13-F
₹65.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 500mV@2A
- Reverse Leakage Current (Ir)
- 500uA@20V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.096 g
Overview
This Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications. It is ideally suited for use as: Polarity Protection Diode, Re - Circulating Diode, Switching Diode, Blocking Diode, Freewheel Diode
Applications
- Polarity Protection Diode
- Re - Circulating Diode
- Switching Diode
- Blocking Diode
- Freewheel Diode
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency
- Surge Overload Rating to 50A Peak
- For Use in Low - Voltage, High - Frequency Inverters
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC - Q101 Standards for High Reliability
- PPAP Capable
