VISHAYDatasheet (PDF)

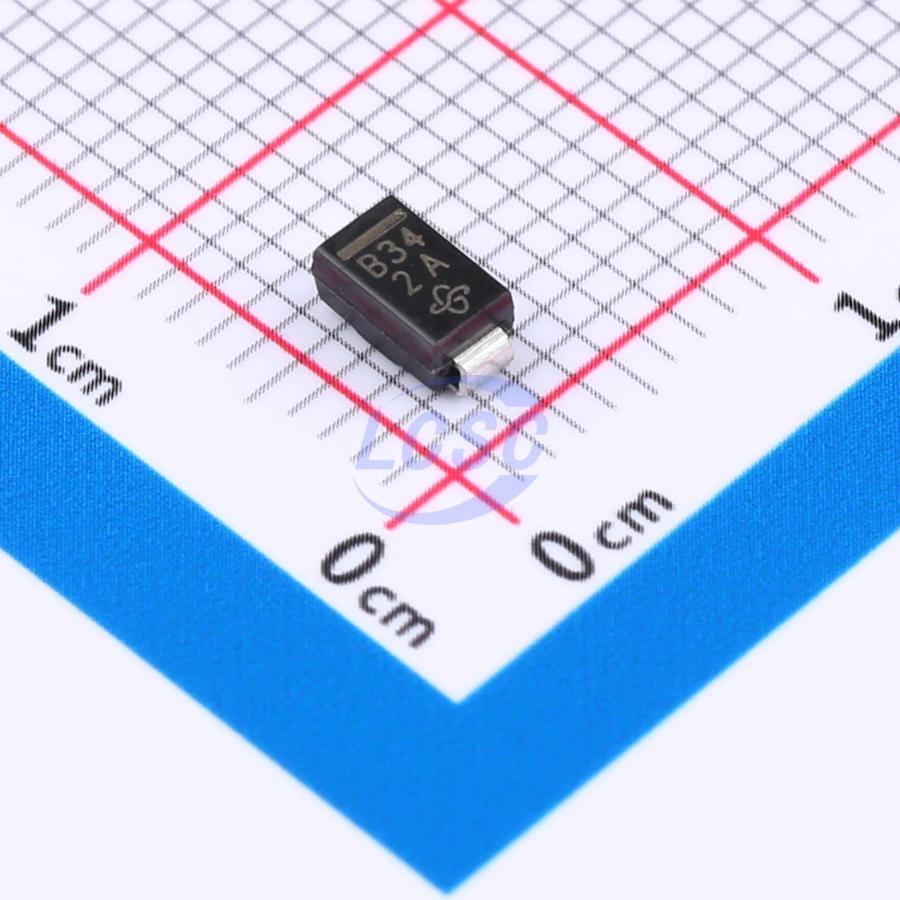

B340A-E3/5AT
Diode 1 Independent 40V 3A Surface Mount DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
DIODE SCHOTTKY 40V DO-214AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- B340A-E3/5AT
- Store part #
- C5358731
- Package / case
- DO-214AC(SMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,560 in stock
#C5358731
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.60 | ₹58.00 |
| 50+ | ₹10.16 | ₹508.00 |
| 150+ | ₹9.45 | ₹1,417.50 |
| 500+ | ₹8.90 | ₹4,450.00 |
| 2,500+ | ₹8.47 | ₹21,175.00 |
| 7,500+ | ₹8.26 | ₹61,950.00 |
5 × ₹11.60
₹58.00
excl. GST
₹68.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
B340A-E3/5AT
₹58.00 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 550mV@3A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 65A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.108 g
Overview
Applications
- For use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B340A-E3/61T#C15570VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 34,690 | ₹13.02 · 34,690 in stock | View |
 | B340A-M3/61T#C3758997VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 234 | ₹114.92 · 234 in stock | View |
 | SM340A#C37635171DOWO · SMA | DOWO | SMA | 7,080 | ₹4.83 · 7,080 in stock | View |
 | SS34A#C5244093DOWO · DO-214AC | DOWO | DO-214AC | 2,720 | ₹4.26 · 2,720 in stock | View |
 | SK34A-LTP(TP)#C53100484TECH PUBLIC · SMA | TECH PUBLIC | SMA | 4,480 | ₹5.36 · 4,480 in stock | View |
