VISHAYDatasheet (PDF)

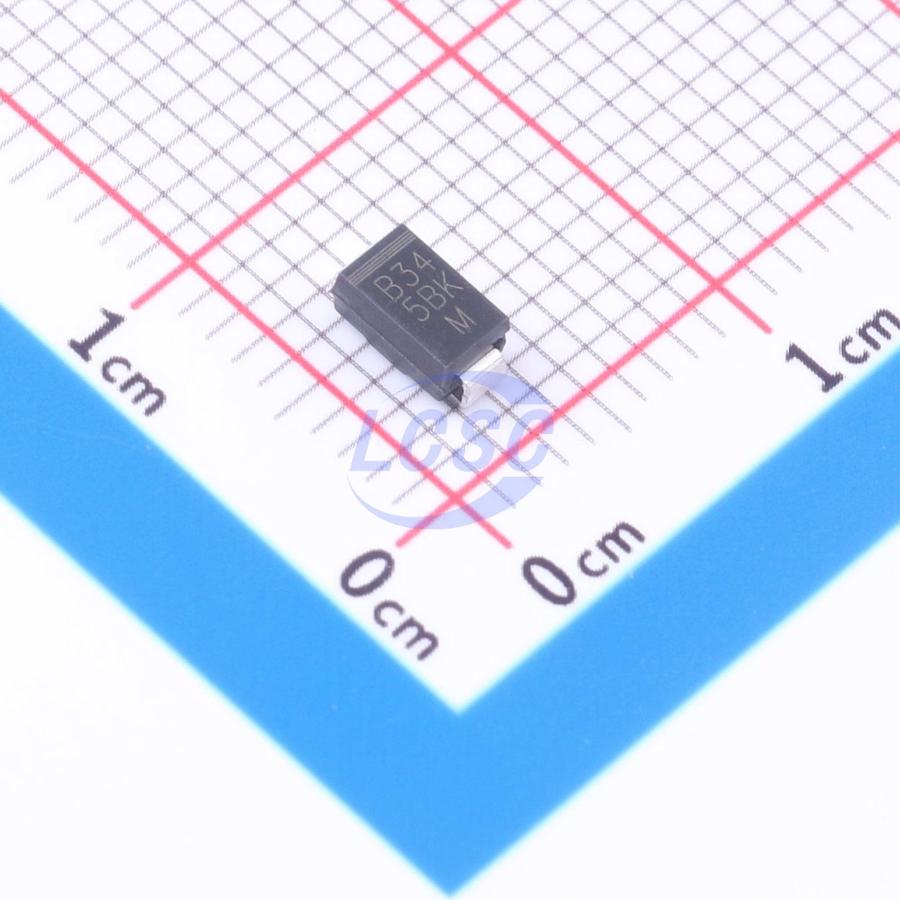

B340A-M3/61T
1 Independent 40V 550mV@3A 3A DO-214AC(SMA) Single Diodes RoHS
DO-214AC(SMA)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- B340A-M3/61T
- Store part #
- C3758997
- Package / case
- DO-214AC(SMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
234 in stock
#C3758997
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.92 | ₹114.92 |
| 10+ | ₹93.23 | ₹932.30 |
| 30+ | ₹82.18 | ₹2,465.40 |
| 100+ | ₹71.34 | ₹7,134.00 |
| 500+ | ₹64.84 | ₹32,420.00 |
| 1,000+ | ₹61.59 | ₹61,590.00 |
1 × ₹114.92
₹114.92
excl. GST
₹135.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
B340A-M3/61T
₹114.92 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 550mV@3A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 65A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.094 g
Overview
Applications
- For use in low-voltage, high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Low-profile package
- Compatible with automatic placement
- Guard ring for overvoltage protection
- Low power dissipation, high efficiency
- Low forward voltage drop
- High surge capability
- MSL Level 1 per J-STD-020, lead-free peak reflow temperature 260°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B340A-E3/61T#C15570VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 34,690 | ₹13.02 · 34,690 in stock | View |
 | B340A-E3/5AT#C5358731VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 4,560 | ₹11.60 · 4,560 in stock | View |
 | SM340A#C37635171DOWO · SMA | DOWO | SMA | 7,080 | ₹4.83 · 7,080 in stock | View |
 | SS34A#C5244093DOWO · DO-214AC | DOWO | DO-214AC | 2,720 | ₹4.26 · 2,720 in stock | View |
 | SK34A-LTP(TP)#C53100484TECH PUBLIC · SMA | TECH PUBLIC | SMA | 4,480 | ₹5.36 · 4,480 in stock | View |
