DIODESDatasheet (PDF)

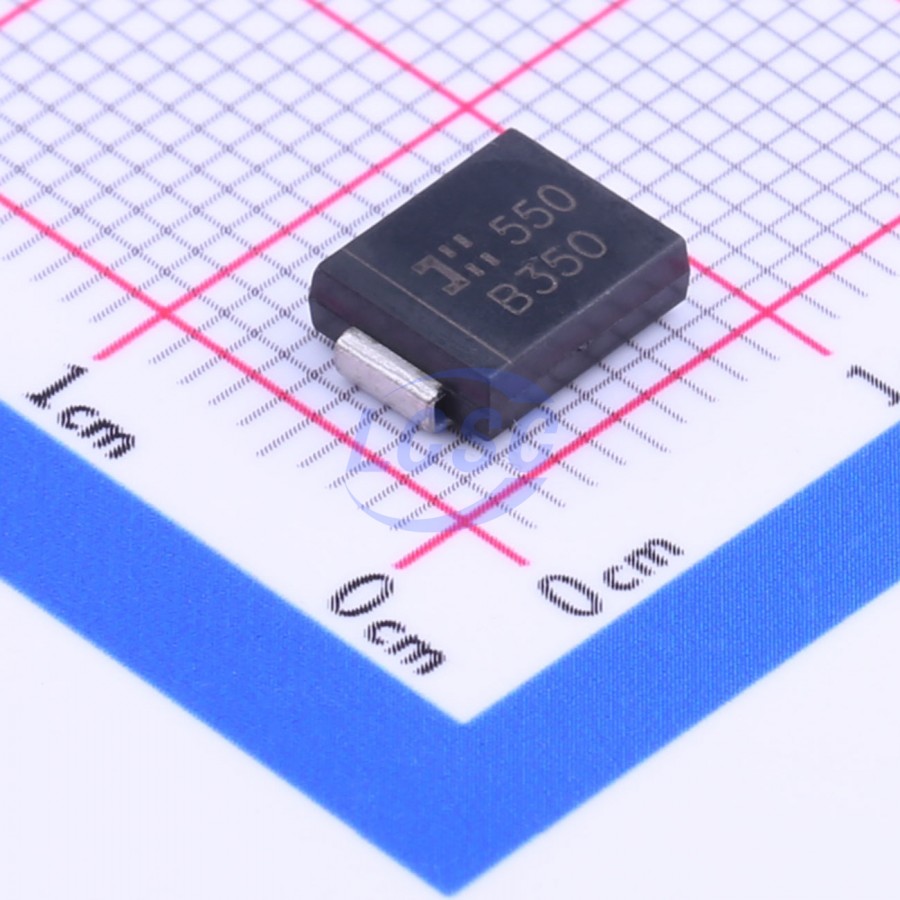

B350-13-F
Diode 50V 3A SMC(DO-214AB)
SMC(DO-214AB)ROHS CompliantActive
DIODE SCHOTTKY 50V SMC(DO-214AB)
- Manufacturer
- DIODES
- Manufacturer part #
- B350-13-F
- Store part #
- C134453
- Package / case
- SMC(DO-214AB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,395 in stock
#C134453
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.45 | ₹187.25 |
| 50+ | ₹30.97 | ₹1,548.50 |
| 150+ | ₹28.19 | ₹4,228.50 |
| 500+ | ₹24.73 | ₹12,365.00 |
| 3,000+ | ₹23.19 | ₹69,570.00 |
| 6,000+ | ₹22.27 | ₹1,33,620.00 |
5 × ₹37.45
₹187.25
excl. GST
₹220.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
B350-13-F
₹187.25 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Voltage - Forward(Vf@If)
- 700mV@3A
- Reverse Leakage Current (Ir)
- 500uA@50V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.334 g
Overview
This Schottky Barrier Rectifier has been designed to meet the general requirements of commercial applications. It is ideally suited for use as: Polarity protection diodes Re- circulating diodes Switching diodes
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency
- Surge Overload Rating to 125A Peak
- For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application
- Lead- Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC- Q) for High Reliability
- An Automotive- Compliant Part is Available Under Separate Datasheet (B320Q- B360Q)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B360-13-F#C110487DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | 1,265 | ₹23.97 · 1,265 in stock | View |
 | SK36#C266330Suzhou Good-Ark Elec · SMC(DO-214AB) | Suzhou Good-Ark Elec | SMC(DO-214AB) | 2,775 | ₹22.28 · 2,775 in stock | View |
 | SS36C#C2915228WEIDA · SMC | WEIDA | SMC | 1,600 | ₹18.32 · 1,600 in stock | View |
 | B550CQ-13-F#C7218592DIODES · SMC | DIODES | SMC | 5 | ₹125.53 · 5 in stock | View |
 | B560C-13-F#C85100DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | 1,52,680 | ₹25.76 · 1,52,680 in stock | View |
