VISHAYDatasheet (PDF)

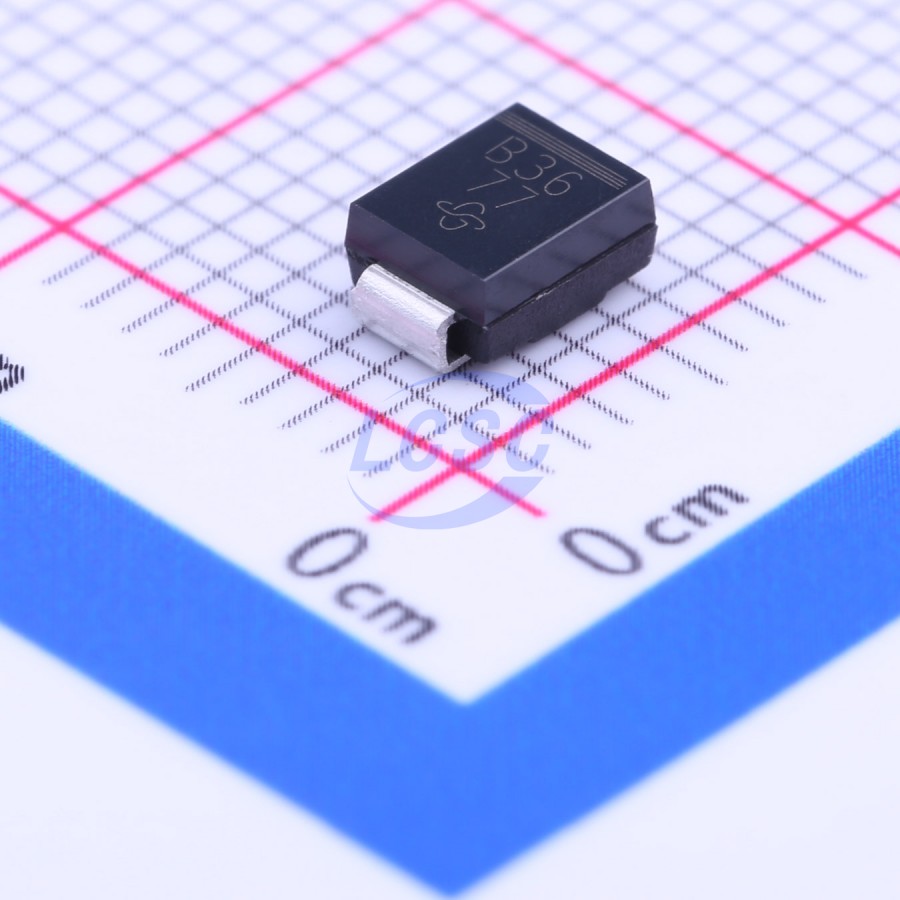

B360B-E3/52T
Diode 60V 3A Surface Mount SMB(DO-214AA)
SMB(DO-214AA)ROHS CompliantActive
DIODE SCHOTTKY 60V SMB(DO-214AA)
- Manufacturer
- VISHAY
- Manufacturer part #
- B360B-E3/52T
- Store part #
- C145306
- Package / case
- SMB(DO-214AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,485 in stock
#C145306
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.37 | ₹156.85 |
| 50+ | ₹24.85 | ₹1,242.50 |
| 150+ | ₹22.05 | ₹3,307.50 |
| 750+ | ₹16.74 | ₹12,555.00 |
| 2,250+ | ₹15.19 | ₹34,177.50 |
| 5,250+ | ₹14.26 | ₹74,865.00 |
5 × ₹31.37
₹156.85
excl. GST
₹185.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
B360B-E3/52T
₹156.85 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 660mV@3A
- Reverse Leakage Current (Ir)
- 100uA@60V
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.217 g
Overview
Applications
- For use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B360B-E3/5BT#C5358727VISHAY · DO-214AA(SMB) | VISHAY | DO-214AA(SMB) | 3,015 | ₹37.86 · 3,015 in stock | View |
 | SK36L#C2929643DIYI Elec Tech · SMB | DIYI Elec Tech | SMB | 40 | ₹9.90 · 40 in stock | View |
 | SS310LB#C22466248XUMAO · SMB | XUMAO | SMB | 2,890 | ₹10.49 · 2,890 in stock | View |
 | SL310#C50581503GOODWORK · SMB | GOODWORK | SMB | 230 | ₹8.97 · 230 in stock | View |
 | SL310B#C7428115NH · SMB | NH | SMB | 2,690 | ₹8.37 · 2,690 in stock | View |
