VISHAYDatasheet (PDF)

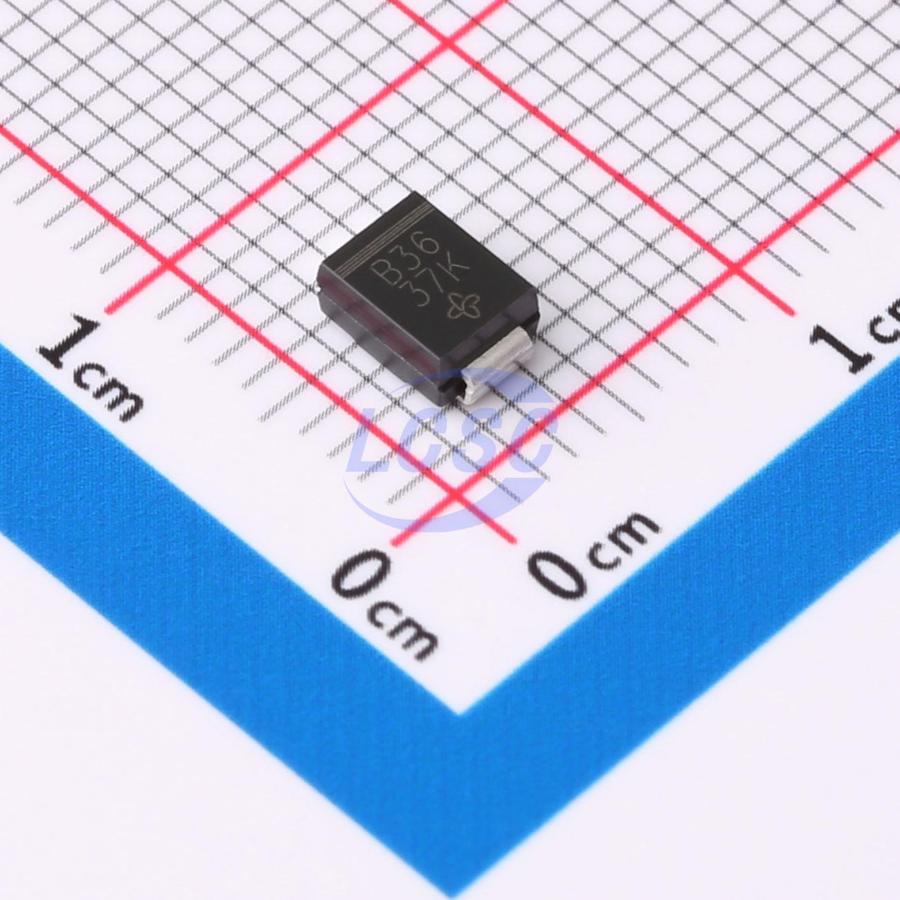

B360B-E3/5BT
Diode 1 Independent 60V 3A Surface Mount DO-214AA(SMB)
DO-214AA(SMB)ROHS3 CompliantActive
DIODE SCHOTTKY 60V DO-214AA(SMB)
- Manufacturer
- VISHAY
- Manufacturer part #
- B360B-E3/5BT
- Store part #
- C5358727
- Package / case
- DO-214AA(SMB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,015 in stock
#C5358727
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.86 | ₹189.30 |
| 50+ | ₹29.93 | ₹1,496.50 |
| 150+ | ₹26.53 | ₹3,979.50 |
| 500+ | ₹22.28 | ₹11,140.00 |
| 3,200+ | ₹20.39 | ₹65,248.00 |
| 6,400+ | ₹19.25 | ₹1,23,200.00 |
5 × ₹37.86
₹189.30
excl. GST
₹223.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,200 per reel
B360B-E3/5BT
₹189.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 660mV@3A
- Reverse Leakage Current (Ir)
- 100uA@60V
- Non-Repetitive Peak Forward Surge Current
- 60A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,200 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.192 g
Overview
Applications
- Low voltage, high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B360B-E3/52T#C145306VISHAY · SMB(DO-214AA) | VISHAY | SMB(DO-214AA) | 1,485 | ₹31.37 · 1,485 in stock | View |
 | SK36L#C2929643DIYI Elec Tech · SMB | DIYI Elec Tech | SMB | 40 | ₹9.90 · 40 in stock | View |
 | SS310LB#C22466248XUMAO · SMB | XUMAO | SMB | 2,890 | ₹10.49 · 2,890 in stock | View |
 | SL310#C50581503GOODWORK · SMB | GOODWORK | SMB | 230 | ₹8.97 · 230 in stock | View |
 | SL310B#C7428115NH · SMB | NH | SMB | 2,690 | ₹8.37 · 2,690 in stock | View |
