VISHAYDatasheet (PDF)

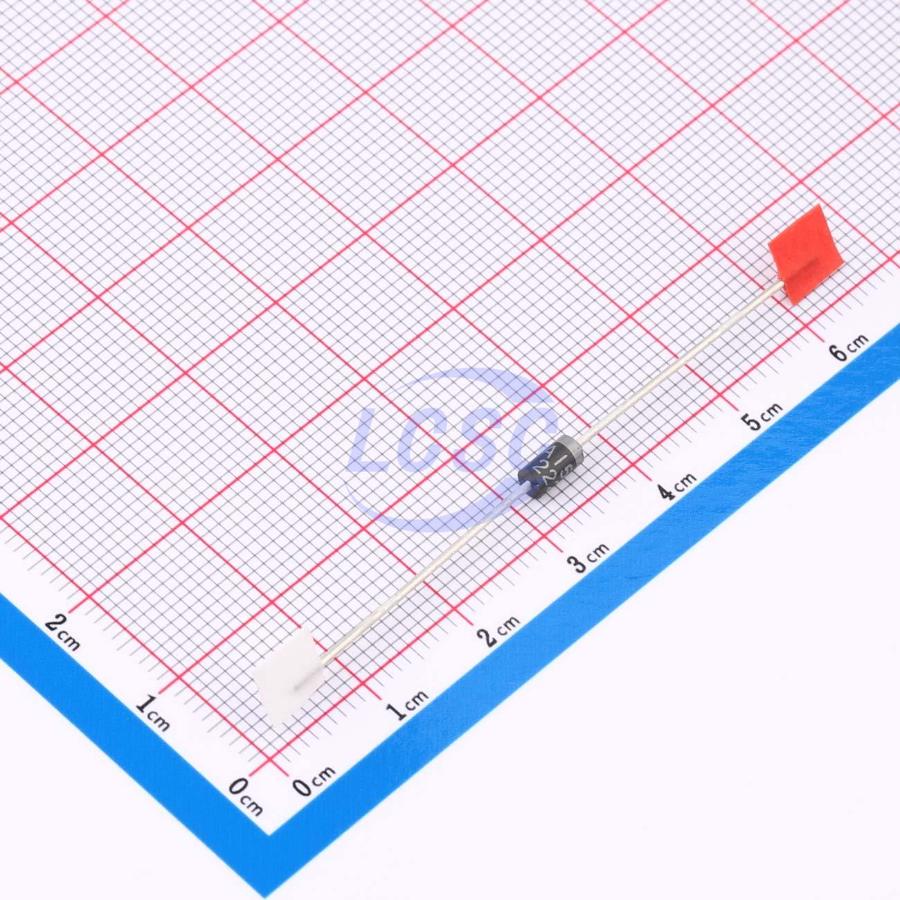

BA157-E3/54
150ns 1 Independent 400V 1.3V@1A 1A DO-204AL(DO-41) Single Diodes RoHS
DO-204AL(DO-41)ROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BA157-E3/54
- Store part #
- C17489786
- Package / case
- DO-204AL(DO-41)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C17489786
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.96 | ₹49.80 |
| 50+ | ₹9.74 | ₹487.00 |
| 150+ | ₹9.59 | ₹1,438.50 |
| 500+ | ₹9.43 | ₹4,715.00 |
5 × ₹9.96
₹49.80
excl. GST
₹58.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,500 per reel
BA157-E3/54
₹49.80 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 150ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Voltage - Forward(Vf@If)
- 1.3V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Non-Repetitive Peak Forward Surge Current
- 20A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
Applications
- Fast switching rectification for power supplies, inverters, and converters, and freewheeling diodes for consumer and telecom applications
Key features
- Fast switching for high efficiency
- Low forward voltage drop
- Low leakage current
- High forward surge capability
- Wave soldering at max 275℃ for 10 seconds per JESD 22-B106
- Material category: for compliance definitions see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BA159-E3/54#C5224070VISHAY · DO-204AL | VISHAY | DO-204AL | 860 | ₹16.76 · 860 in stock | View |
 | 1N4936-E3/54#C5357982VISHAY · DO-204AL(DO-41) | VISHAY | DO-204AL(DO-41) | 35 | ₹8.15 · 35 in stock | View |
 | 1N4937-E3/54#C113449VISHAY · DO-41 | VISHAY | DO-41 | 649 | ₹56.19 · 649 in stock | View |
| FR104T-G#C17443186Comchip · DO-41 | Comchip | DO-41 | On request | ₹9.66 · 0 in stock | View | |
| RGP10GE-E3/54#C17554569VISHAY · DO-204AL(DO-41) | VISHAY | DO-204AL(DO-41) | On request | ₹46.52 · 0 in stock | View | |
