ROHMDatasheet (PDF)

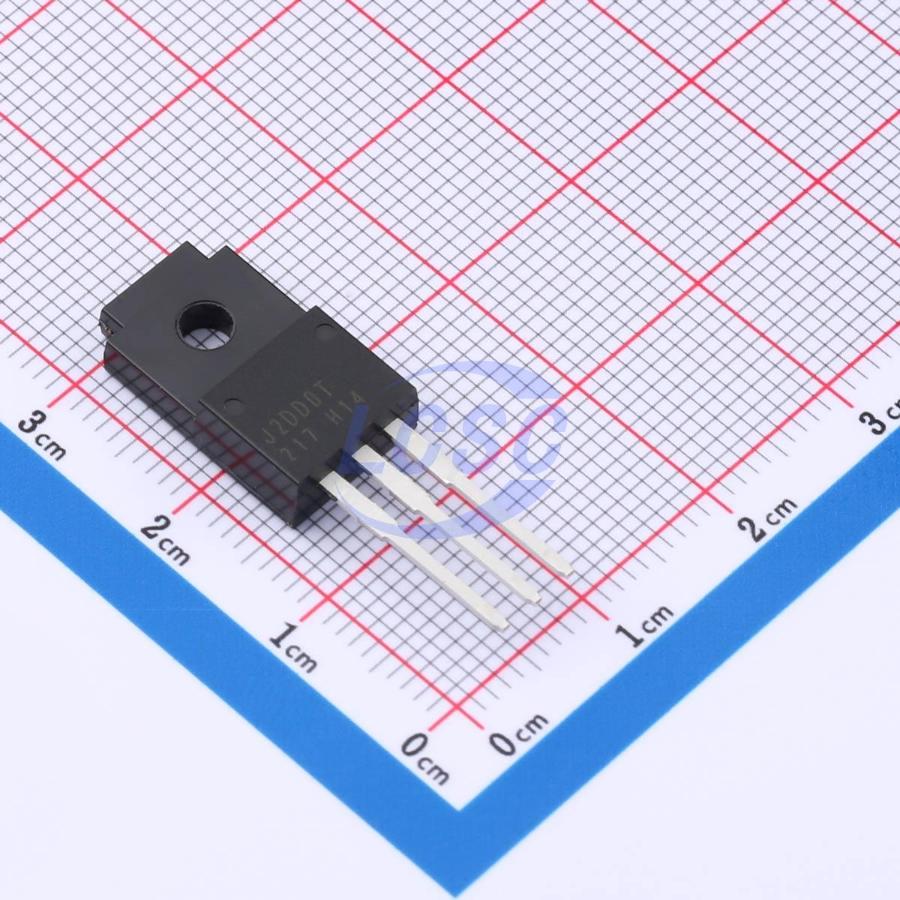

BAJ2DD0T
12V Positive Fixed TO-220-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220-3ROHS3 CompliantDiscontinued
2A/1A Fixed Output LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BAJ2DD0T
- Store part #
- C5336746
- Package / case
- TO-220-3
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C5336746
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹718.01 | ₹718.01 |
| 10+ | ₹617.97 | ₹6,179.70 |
| 50+ | ₹558.61 | ₹27,930.50 |
| 100+ | ₹498.60 | ₹49,860.00 |
| 500+ | ₹470.78 | ₹2,35,390.00 |
| 1,000+ | ₹458.38 | ₹4,58,380.00 |
1 × ₹718.01
₹718.01
excl. GST
₹847.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
BAJ2DD0T
₹718.01 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 2A
- Operating Voltage
- 25V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Input overvoltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.14 g
Overview
Standard Fixed Output LDO Regulators are low-saturation regulators, available for outputs up to 2A / 1A. It has a wide output voltage range and package lineup with and without shutdown switches. This IC has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits, a thermal shut-down circuit that protects the IC from damage due to overloading and an over-voltage protection circuit that protects the IC from surges generated in the power supply line of the IC.
Applications
- Used in DSP power supplies for DVD and CD players, FPDs, televisions, personal computers or any other consumer device
Key features
- ±1% highly accurate output voltage (BAxxDD0xx)
- Low saturation with PNP output
- Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
- Built-in thermal shutdown circuit for protecting the IC from damage due to overloading
- Built-in over- voltage protection circuit that prevents the destruction of the IC due to power supply surges
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1085IT-12/NOPB#C2865347TI · TO-220 | TI | TO-220 | 15 | ₹516.79 · 15 in stock | View |
 | LT1084CT-12#PBF#C661206ADI · TO-220 | ADI | TO-220 | 6 | ₹3,461.88 · 6 in stock | View |
| LT1085IT-12#PBF#C661214ADI · TO-220 | ADI | TO-220 | On request | ₹1,289.13 · 0 in stock | View | |
| LT1085CT-12#PBF#C661209ADI · TO-220-3 | ADI | TO-220-3 | On request | ₹964.65 · 0 in stock | View | |
