NexperiaDatasheet (PDF)

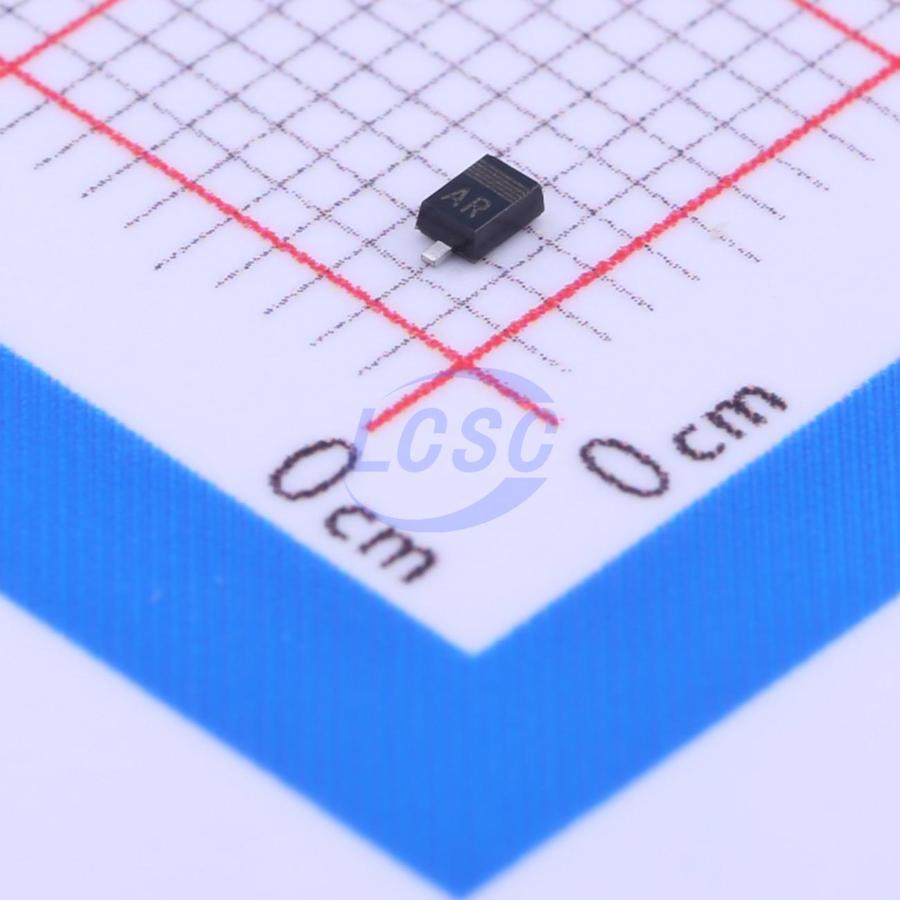

BAS16J,115
Diode Independent 100V 250mA Surface Mount SOD-323F
PopularSOD-323FROHS3 CompliantActive
DIODE GP 100V 250mA SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- BAS16J,115
- Store part #
- C282360
- Package / case
- SOD-323F
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,70,700 in stock
#C282360
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.46 | ₹123.00 |
| 500+ | ₹1.91 | ₹955.00 |
| 3,000+ | ₹1.59 | ₹4,770.00 |
| 6,000+ | ₹1.40 | ₹8,400.00 |
| 24,000+ | ₹1.24 | ₹29,760.00 |
| 51,000+ | ₹1.15 | ₹58,650.00 |
50 × ₹2.46
₹123.00
excl. GST
₹145.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAS16J,115
₹123.00 for 50 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- Standalone
- Pd - Power Dissipation
- 550mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 500nA@80V
- Non-Repetitive Peak Forward Surge Current
- 4A
- Current - Rectified
- 250mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.022 g
Overview
High-speed switching diode in a very small and flat-lead SOD323F SMD plastic package.
Applications
- High-speed switching
- General-purpose switching
Key features
- High switching speed: reverse recovery time t_ff ≤ 4 ns
- Low capacitance
- Low leakage current
- Reverse voltage: V_R ≤ 100 V
- Repetitive peak reverse voltage: V_RRM ≤ 100 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS16J,135#C549198Nexperia · SOD-323F | Nexperia | SOD-323F | 3,04,440 | ₹3.20 · 3,04,440 in stock | View |
 | BAS316,115#C109218Nexperia · SOD-323 | Nexperia | SOD-323 | 49,700 | ₹1.93 · 49,700 in stock | View |
 | 1N4148WSF-7#C119617DIODES · SOD-323F | DIODES | SOD-323F | 13,870 | ₹85.72 · 13,870 in stock | View |
 | BAS16J#C42387323FUXINSEMI · SOD-323 | FUXINSEMI | SOD-323 | 10,900 | ₹2.33 · 10,900 in stock | View |
 | BAS316,135#C549222Nexperia · SOD-323 | Nexperia | SOD-323 | 12,020 | ₹2.80 · 12,020 in stock | View |
