NexperiaDatasheet (PDF)

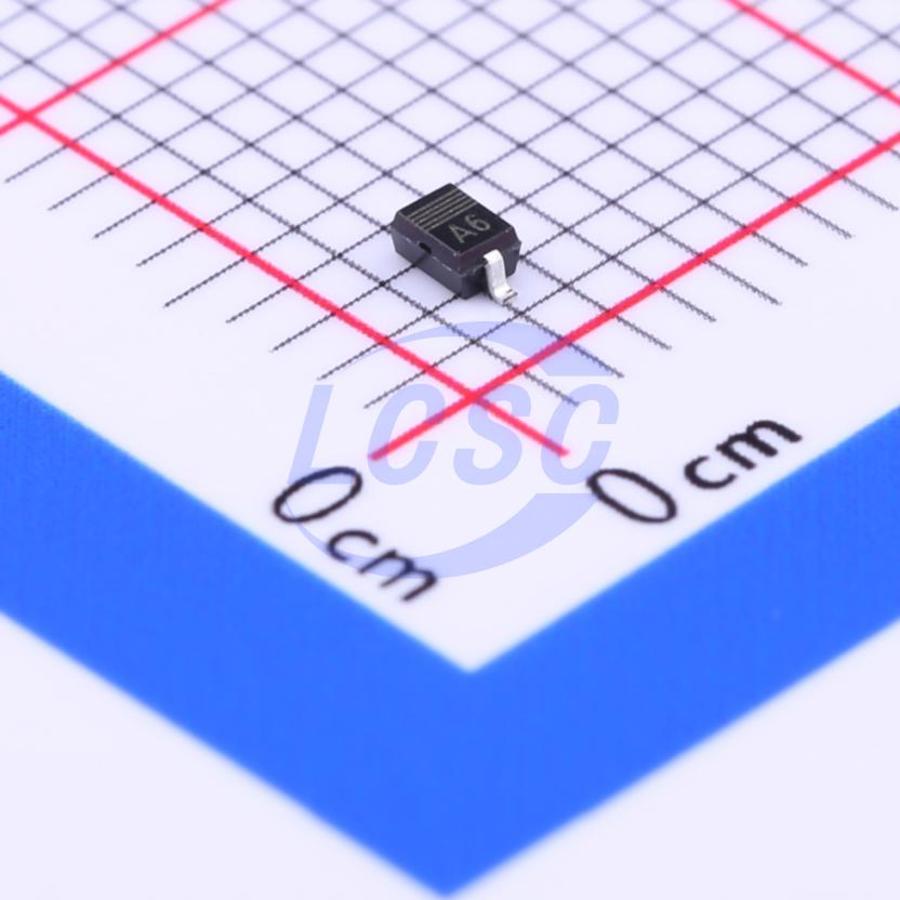

BAS316,115
Diode Independent 100V 250mA Surface Mount SOD-323
PopularSOD-323ROHS3 CompliantActive
DIODE GP 100V 250mA SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- BAS316,115
- Store part #
- C109218
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49,700 in stock
#C109218
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.93 | ₹96.50 |
| 500+ | ₹1.46 | ₹730.00 |
| 3,000+ | ₹1.26 | ₹3,780.00 |
| 6,000+ | ₹1.10 | ₹6,600.00 |
| 24,000+ | ₹1.03 | ₹24,720.00 |
| 51,000+ | ₹0.9923 | ₹50,607.30 |
50 × ₹1.93
₹96.50
excl. GST
₹113.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAS316,115
₹96.50 for 50 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- Standalone
- Pd - Power Dissipation
- 400mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 500nA@80V
- Non-Repetitive Peak Forward Surge Current
- 4A
- Current - Rectified
- 250mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.078 g
Overview
High-speed switching diode, encapsulated in a small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package.
Applications
- High-speed switching
- General-purpose switching
Key features
- High switching speed: tr ≤ 4 ns
- Low capacitance
- Low leakage current
- Reverse voltage: VR ≤ 100 V
- Repetitive peak reverse voltage: VRRM ≤ 100 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N4148WSF-7#C119617DIODES · SOD-323F | DIODES | SOD-323F | 13,870 | ₹85.72 · 13,870 in stock | View |
 | BAS316,135#C549222Nexperia · SOD-323 | Nexperia | SOD-323 | 12,020 | ₹2.80 · 12,020 in stock | View |
 | BAS16J,115#C282360Nexperia · SOD-323F | Nexperia | SOD-323F | 2,70,700 | ₹2.46 · 2,70,700 in stock | View |
 | BAS16J,135#C549198Nexperia · SOD-323F | Nexperia | SOD-323F | 3,04,440 | ₹3.20 · 3,04,440 in stock | View |
 | 1N4148WS#C108805Jingdao Microelectronics · SOD-323 | Jingdao Microelectronics | SOD-323 | 3,77,100 | ₹1.26 · 3,77,100 in stock | View |
