NexperiaDatasheet (PDF)

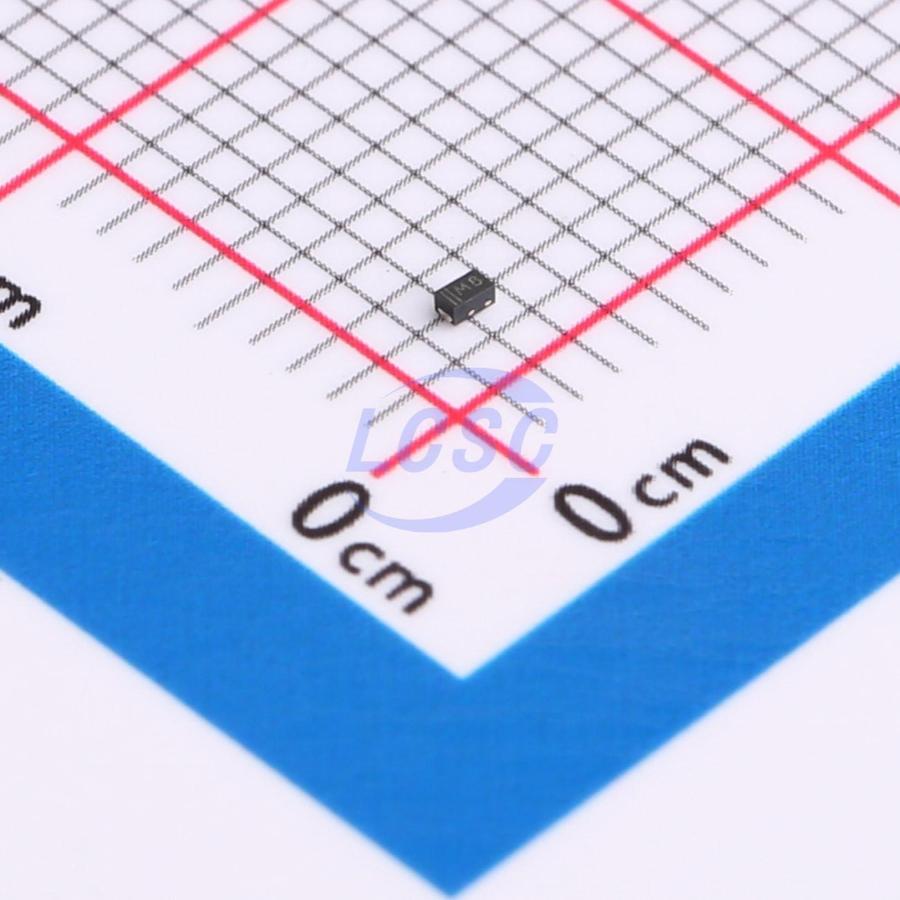

BAS16LS-QYL
4ns 100V 1 Independent 1.25V@150mA 215mA SOD-882 Single Diodes RoHS
SOD-882ROHS3 CompliantActive
High-speed switching diode
- Manufacturer
- Nexperia
- Manufacturer part #
- BAS16LS-QYL
- Store part #
- C5259064
- Package / case
- SOD-882
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,790 in stock
#C5259064
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.95 | ₹234.75 |
| 50+ | ₹36.81 | ₹1,840.50 |
| 150+ | ₹32.45 | ₹4,867.50 |
| 500+ | ₹27.03 | ₹13,515.00 |
| 2,500+ | ₹24.61 | ₹61,525.00 |
| 5,000+ | ₹23.17 | ₹1,15,850.00 |
5 × ₹46.95
₹234.75
excl. GST
₹277.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BAS16LS-QYL
₹234.75 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 345mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 500nA
- Current - Rectified
- 215mA
- Non-Repetitive Peak Forward Surge Current
- 4A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.098 g
Overview
High-speed switching diode, encapsulated in a leadless ultra small DFN1006BD-2 (SOD882BD) Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
Applications
- High-speed switching
- General-purpose switching
Key features
- High switching speed: tr ≤ 4 ns
- Low leakage current
- Repetitive peak reverse voltage VRRM ≤ 100 V
- Suitable for Automatic Optical Inspection (AOI) of solder joint
- Low capacitance
- Reverse voltage VR ≤ 100 V
- Ultra small and leadless SMD plastic package
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS16LTH-G3-08#C17345152VISHAY · DFN1006-2A | VISHAY | DFN1006-2A | 397 | ₹61.36 · 397 in stock | View |
 | 1N4148WL2#C20599330YANGJIE · DFN1006-2(SOD-882) | YANGJIE | DFN1006-2(SOD-882) | 16,200 | ₹3.81 · 16,200 in stock | View |
 | BAS521LP-TP#C51886194TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 160 | ₹3.25 · 160 in stock | View |
| BAS16LTH-HG3-08#C17356228VISHAY · DFN1006-2A | VISHAY | DFN1006-2A | On request | ₹11.35 · 0 in stock | View | |
| BAS16L-HG3-08#C17320077VISHAY · DFN1006-2A | VISHAY | DFN1006-2A | On request | ₹13.43 · 0 in stock | View | |
