VISHAYDatasheet (PDF)

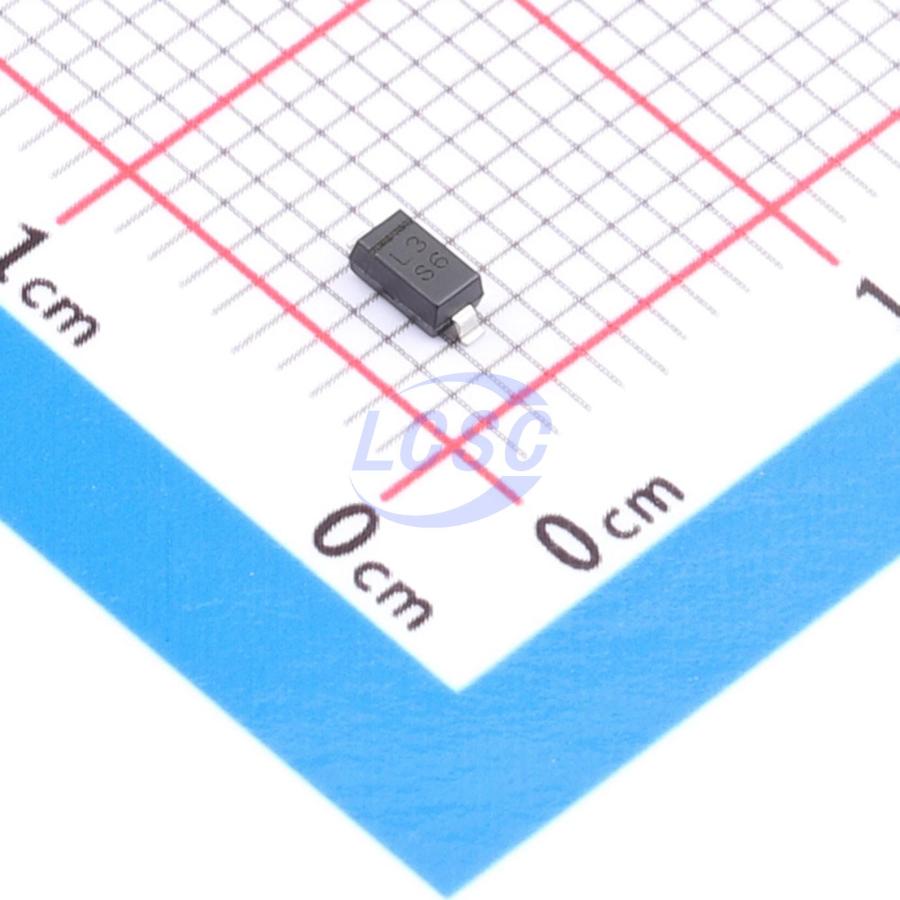

BAT43W-E3-18
1 Independent 30V 450mV@15mA 200mA SOD-123 Single Diodes RoHS
SOD-123ROHS3 CompliantActive
DIODE SCHOTTKY 30V SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BAT43W-E3-18
- Store part #
- C3313036
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C3313036
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.29 | ₹181.45 |
| 50+ | ₹30.09 | ₹1,504.50 |
| 150+ | ₹27.43 | ₹4,114.50 |
| 500+ | ₹24.11 | ₹12,055.00 |
| 2,500+ | ₹22.62 | ₹56,550.00 |
| 5,000+ | ₹21.74 | ₹1,08,700.00 |
5 × ₹36.29
₹181.45
excl. GST
₹214.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BAT43W-E3-18
₹181.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 450mV@15mA
- Reverse Leakage Current (Ir)
- 500nA@25V
- Non-Repetitive Peak Forward Surge Current
- 4A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Key features
- These diodes feature extremely low forward voltage and fast switching characteristics. The devices incorporate a PN junction guard ring for protection against overvoltage, such as electrostatic discharge.
- Suitable for general purpose applications.
- Available in AEC-Q101 compliant versions.
- Base part number E3 - RoHS compliant, commercial grade.
- Base part number HE3 - RoHS compliant, AEC-Q101 compliant.
- Material Category: For compliance definitions, refer to www.vishay.com/doc?99912.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAT43W#C19167JSCJ · SOD-123 | JSCJ | SOD-123 | 9,540 | ₹3.76 · 9,540 in stock | View |
 | BAT43W#C49435670Huixin · SOD-123 | Huixin | SOD-123 | 2,340 | ₹5.44 · 2,340 in stock | View |
 | BAT43W-G3-08#C5575875VISHAY · SOD-123 | VISHAY | SOD-123 | 2,960 | ₹40.59 · 2,960 in stock | View |
 | BAT43W#C5766598HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 3,000 | ₹2.62 · 3,000 in stock | View |
 | BAT43W#C5805640XZT · SOD-123 | XZT | SOD-123 | 700 | ₹2.29 · 700 in stock | View |
