VISHAYDatasheet (PDF)

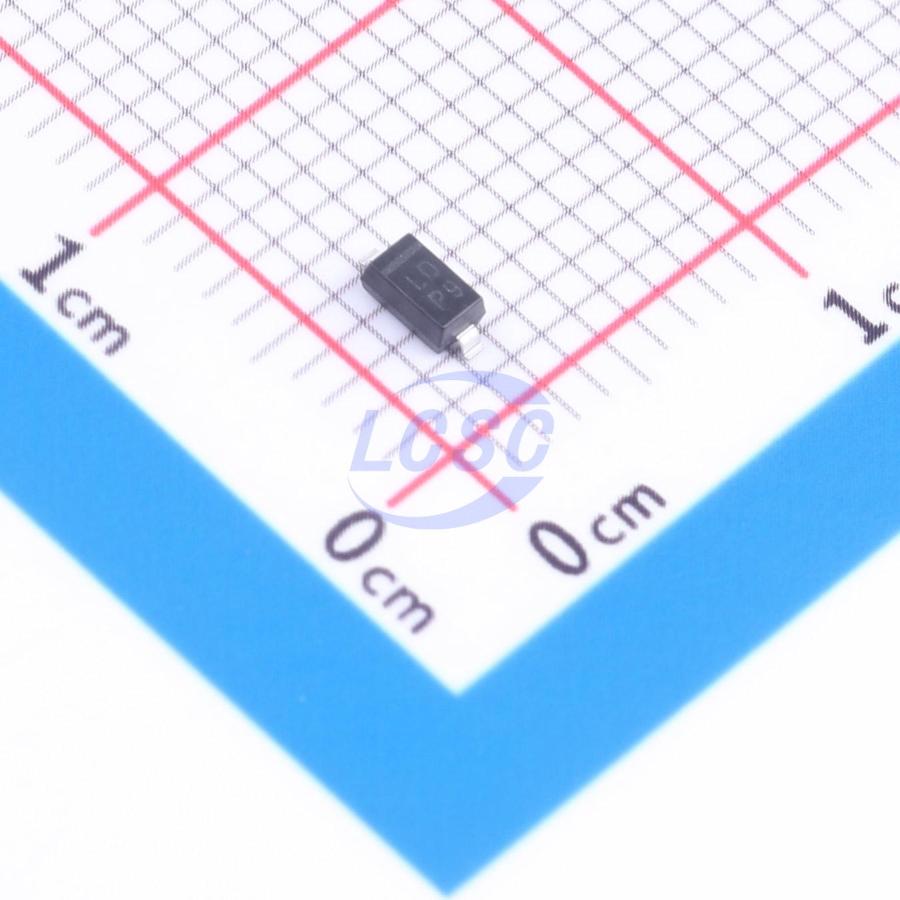

BAT43W-G3-08
1 Independent 30V 450mV@15mA 200mA SOD-123 Single Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BAT43W-G3-08
- Store part #
- C5575875
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C5575875
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.59 | ₹202.95 |
| 50+ | ₹33.49 | ₹1,674.50 |
| 150+ | ₹30.44 | ₹4,566.00 |
| 500+ | ₹26.65 | ₹13,325.00 |
| 2,500+ | ₹24.95 | ₹62,375.00 |
| 5,000+ | ₹23.93 | ₹1,19,650.00 |
5 × ₹40.59
₹202.95
excl. GST
₹239.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
BAT43W-G3-08
₹202.95 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 450mV@15mA
- Reverse Leakage Current (Ir)
- 500nA@25V
- Non-Repetitive Peak Forward Surge Current
- 4A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Key features
- Ultra-low forward voltage and fast switching characteristics. PN junction guard ring protection against overvoltage, such as ESD.
- General-purpose applications.
- AEC-Q101 qualified versions available (specific part numbers available upon request).
- Base part number G3 - Green Commercial Grade.
- Material Category: For compliance definitions, refer to www.vishay.com/doc?99912.
- RoHS compliant.
- Halogen-free.
- Eco-friendly (5-2008).
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAT43W-TP#C914267MCC · SOD-123 | MCC | SOD-123 | 5,320 | ₹5.83 · 5,320 in stock | View |
 | BAT43W-E3-08#C917491VISHAY · SOD-123 | VISHAY | SOD-123 | 4,100 | ₹9.01 · 4,100 in stock | View |
 | BAT43W#C5805640XZT · SOD-123 | XZT | SOD-123 | 700 | ₹2.29 · 700 in stock | View |
 | BAT43W#C19167JSCJ · SOD-123 | JSCJ | SOD-123 | 9,540 | ₹3.76 · 9,540 in stock | View |
 | BAT43W-E3-18#C3313036VISHAY · SOD-123 | VISHAY | SOD-123 | 85 | ₹36.29 · 85 in stock | View |
