VISHAYDatasheet (PDF)

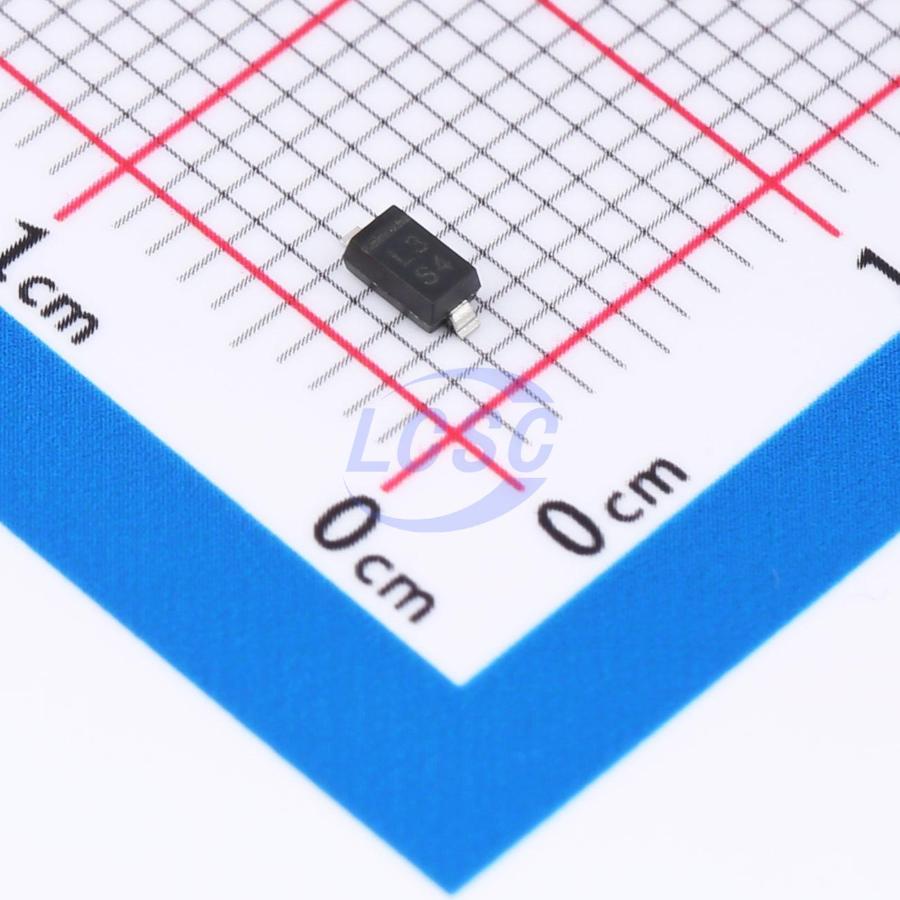

BAT43W-E3-08
Diode 1 Independent 30V 200mA Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE SCHOTTKY 30V SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BAT43W-E3-08
- Store part #
- C917491
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,100 in stock
#C917491
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.01 | ₹90.10 |
| 100+ | ₹7.14 | ₹714.00 |
| 300+ | ₹6.20 | ₹1,860.00 |
| 3,000+ | ₹4.99 | ₹14,970.00 |
| 6,000+ | ₹4.43 | ₹26,580.00 |
| 9,000+ | ₹4.15 | ₹37,350.00 |
10 × ₹9.01
₹90.10
excl. GST
₹106.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAT43W-E3-08
₹90.10 for 10 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 450mV@15mA
- Reverse Leakage Current (Ir)
- 500nA@25V
- Non-Repetitive Peak Forward Surge Current
- 4A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Key features
- Extremely low forward voltage and fast switching characteristics.
- PN junction guard ring protection against overvoltage such as ESD.
- General-purpose applications.
- AEC-Q101 qualified versions available.
- RoHS compliant, commercial grade.
- RoHS compliant, AEC-Q101 qualified.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAT43W-G3-08#C5575875VISHAY · SOD-123 | VISHAY | SOD-123 | 2,960 | ₹40.59 · 2,960 in stock | View |
 | BAT43W-TP#C914267MCC · SOD-123 | MCC | SOD-123 | 5,320 | ₹5.83 · 5,320 in stock | View |
 | BAT43W#C5805640XZT · SOD-123 | XZT | SOD-123 | 700 | ₹2.29 · 700 in stock | View |
 | BAT43W#C19167JSCJ · SOD-123 | JSCJ | SOD-123 | 9,540 | ₹3.76 · 9,540 in stock | View |
 | BAT43W-E3-18#C3313036VISHAY · SOD-123 | VISHAY | SOD-123 | 85 | ₹36.29 · 85 in stock | View |
